MSD1260T-472

General specification Core Material: Ferrite Weight: 2.8 – 3.2 g Packaging: 500/13 reel, Plastic tape: 24 mm wide, 0.5 mm thick, 16 mm pocket spacing, 6.9 mm pocket depth Winding to Winding Isolation: 500 Vrms, one minute Soldering/Washing Moisture Sensitivity Level (MSL): 1 (unlimited floor life at Resistance to soldering heat: Max three 40 second reflows at +260C, parts cooled to room temperature between cycles Refer to Soldering Coilcraft Components before soldering. PCB Washing: Tested with pure water or alcohol only. More info.

450,00 ₽

Артикул: MSD1260T-472MLD Категорий: 1 1 Shielded Coupled, Coupled Inductors, MSD1260T, MSD1260T-472, Power, Products, МСД_Т

Описание

Specifications

Electrical specifications at 25C.

For Flyback Applications

Part number 1 (Hover for schematics)	Inductance (H) 2 (Tolerance: &plusmn,20%)	DCR max (Ω) 3	Isolation Voltage (V)	Leakage Inductance (nH) 5	Turns Ratio
Part number 1 (Hover for schematics)	Inductance (H) 2 (Tolerance: &plusmn,20%)	DCR max (Ω) 3	Isolation Voltage (V)	Leakage Inductance (nH) 5	Turns Ratio
MSD1260T-472ML_	4.7	0.036	500	200	1 : 1

For SEPIC Applications

Part number 1 (Hover for schematics)	Inductance (H) 2 (Tolerance: &plusmn,20%)	DCR max (Ω) 3	SRF typ (MHz) 4	Coupling coefficient	Leakage Inductance (nH) 5	Isat (A) 6			Irms (A)
Part number 1 (Hover for schematics)	Inductance (H) 2 (Tolerance: &plusmn,20%)	DCR max (Ω) 3	SRF typ (MHz) 4	Coupling coefficient	Leakage Inductance (nH) 5	10% drop	20% drop	30% drop	both windings 7	one winding 8
MSD1260T-472ML_	4.7	0.036	38.0	0.94	200	9.0	10.2	11.1	3.2	4.5

Каталог

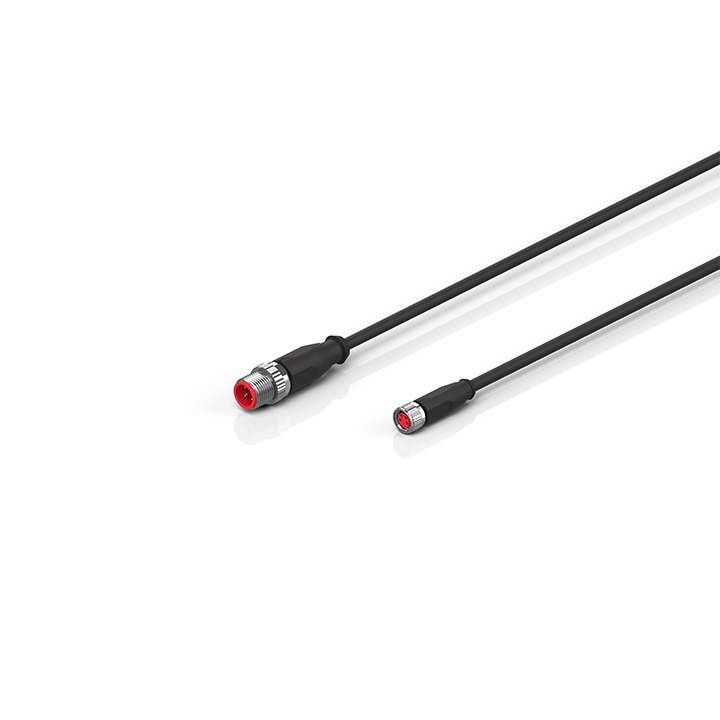

ZK2000-7132-0xxx | Sensor cable, PUR, 4 x 0.34В mmВІ, drag-chain suitable
