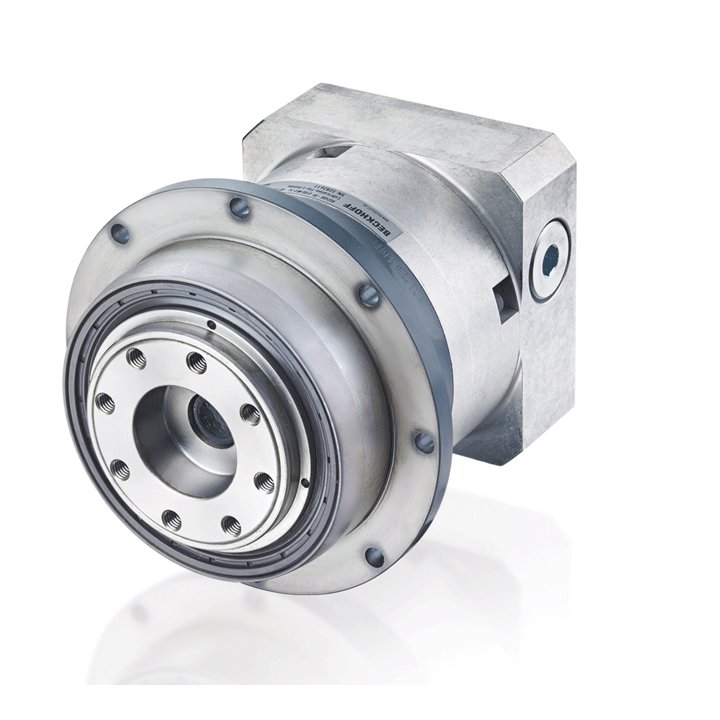

AG2400-+TP004S-MF1-4 | High-end planetary gear units with output flange, sizeВ 004
01.01.2025

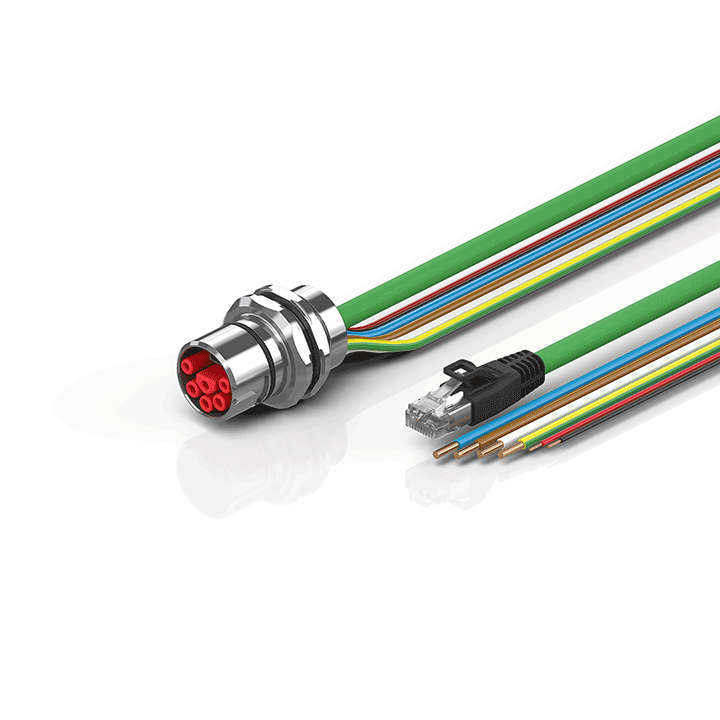

ZK7321-BC00-Axxx | B23, ENP cable, PUR, 4 G 4.0 mmВІ + 2 x 2.5 mmВІ + (1 x 4 x AWG22), drag-chain suitable, key 1 (user-defined voltage)
01.01.2025
MSD1260T-103
General specification Core Material: Ferrite Weight: 2.8 – 3.2 g Packaging: 500/13 reel, Plastic tape: 24 mm wide, 0.5 mm thick, 16 mm pocket spacing, 6.9 mm pocket depth Winding to Winding Isolation: 500 Vrms, one minute Soldering/Washing Moisture Sensitivity Level (MSL): 1 (unlimited floor life at Resistance to soldering heat: Max three 40 second reflows at +260C, parts cooled to room temperature between cycles Refer to Soldering Coilcraft Components before soldering. PCB Washing: Tested with pure water or alcohol only. More info.
450,00 ₽
Specifications
Electrical specifications at 25C.
For Flyback Applications
| Part number 1 (Hover for schematics) | Inductance (H) 2 (Tolerance: ±,20%) | DCR max (Ω) 3 | Isolation Voltage (V) | Leakage Inductance (nH) 5 | Turns Ratio |
|---|---|---|---|---|---|
| MSD1260T-103ML_ | 10 | 0.060 | 500 | 260 | 1 : 1 |
For SEPIC Applications
| Part number 1 (Hover for schematics) | Inductance (H) 2 (Tolerance: ±,20%) | DCR max (Ω) 3 | SRF typ (MHz) 4 | Coupling coefficient | Leakage Inductance (nH) 5 | Isat (A) 6 | Irms (A) | |||
|---|---|---|---|---|---|---|---|---|---|---|
| 10% drop | 20% drop | 30% drop | both windings 7 | one winding 8 | ||||||
| MSD1260T-103ML_ | 10 | 0.060 | 22.0 | 0.94 | 260 | 5.4 | 6.3 | 6.9 | 2.5 | 3.5 |
