MSD1260-824

General specification Core Material: Ferrite Weight: 2.8 – 3.2 g Packaging: 500/13 reel, Plastic tape: 24 mm wide, 0.5 mm thick, 16 mm pocket spacing, 6.9 mm pocket depth Winding to Winding Isolation: 500 Vrms, one minute Soldering/Washing Moisture Sensitivity Level (MSL): 1 (unlimited floor life at Resistance to soldering heat: Max three 40 second reflows at +260C, parts cooled to room temperature between cycles Refer to Soldering Coilcraft Components before soldering. PCB Washing: Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info

450,00 ₽

Артикул: MSD1260-824KLD Категорий: 1 1 Shielded Coupled, Coupled Inductors, MSD1260, MSD1260-824, Power, Products, МСД

Описание

Specifications

Electrical specifications at 25C.

For Flyback Applications

Part number 1 (Hover for schematics)	Inductance (H) 2 (Tolerance: &plusmn,10%)	DCR max (Ω) 3	Isolation Voltage (V)	Leakage Inductance (H) 5	Turns Ratio
Part number 1 (Hover for schematics)	Inductance (H) 2 (Tolerance: &plusmn,10%)	DCR max (Ω) 3	Isolation Voltage (V)	Leakage Inductance (H) 5	Turns Ratio
MSD1260-824KL_	820	2.7	500	2.9	1 : 1

For SEPIC Applications

Part number 1 (Hover for schematics)	Inductance (H) 2 (Tolerance: &plusmn,10%)	DCR max (Ω) 3	SRF typ (kHz) 4	Coupling coefficient	Leakage Inductance (H) 5	Isat (A) 6	Irms (A)
Part number 1 (Hover for schematics)	Inductance (H) 2 (Tolerance: &plusmn,10%)	DCR max (Ω) 3	SRF typ (kHz) 4	Coupling coefficient	Leakage Inductance (H) 5	Isat (A) 6	both windings 7	one winding 8
MSD1260-824KL_	820	2.7	1500	&gt,0.99	2.9	0.79	0.37	0.52

Каталог

EL3162 | EtherCAT Terminal, 2-channel analog input, voltage, 0вЂ¦10В V, 16В bit, single-ended

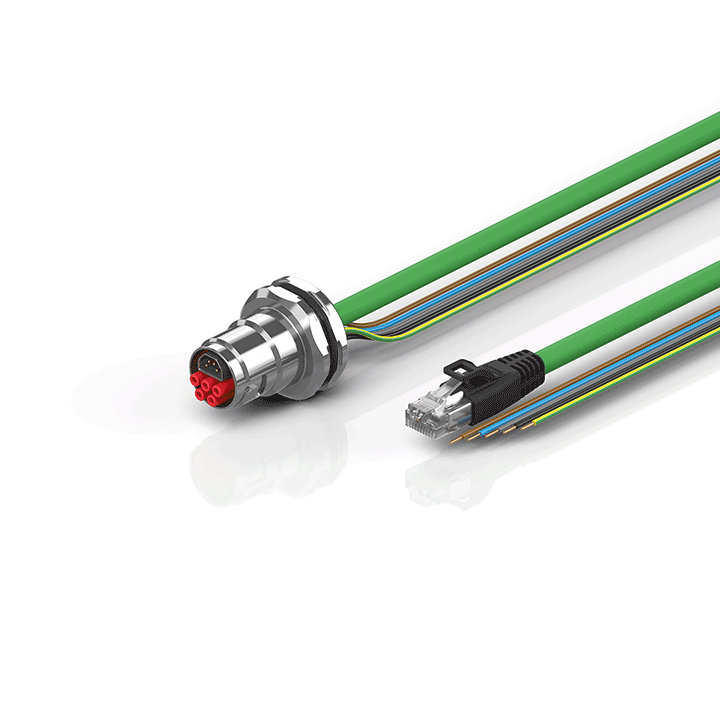

ZK7208-CA00-Axxx | B17, ENP cable, PUR, 5 G 1.5 mmВІ + (1 x 4 x AWG22), drag-chain suitable, key 1 (2В xВ 24В VВ DCВ +В PE)
