MSD1260-124

General specification Core Material: Ferrite Weight: 2.8 – 3.2 g Packaging: 500/13 reel, Plastic tape: 24 mm wide, 0.5 mm thick, 16 mm pocket spacing, 6.9 mm pocket depth Winding to Winding Isolation: 500 Vrms, one minute Soldering/Washing Moisture Sensitivity Level (MSL): 1 (unlimited floor life at Resistance to soldering heat: Max three 40 second reflows at +260C, parts cooled to room temperature between cycles Refer to Soldering Coilcraft Components before soldering. PCB Washing: Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info

450,00 ₽

Артикул: MSD1260-124KLD Категорий: MSD1260, MSD1260-124, Power Converter Transformers, Power Transformers, Products, Transformers

Описание

Specifications

Electrical specifications at 25C.

For Flyback Applications

Part number 1 (Hover for schematics)	Inductance (H) 2 (Tolerance: &plusmn,10%)	DCR max (Ω) 3	Isolation Voltage (V)	Leakage Inductance (H) 5	Turns Ratio
Part number 1 (Hover for schematics)	Inductance (H) 2 (Tolerance: &plusmn,10%)	DCR max (Ω) 3	Isolation Voltage (V)	Leakage Inductance (H) 5	Turns Ratio
MSD1260-124KL_	120	0.42	500	1.3	1 : 1

For SEPIC Applications

Part number 1 (Hover for schematics)	Inductance (H) 2 (Tolerance: &plusmn,10%)	DCR max (Ω) 3	SRF typ (MHz) 4	Coupling coefficient	Leakage Inductance (H) 5	Isat (A) 6	Irms (A)
Part number 1 (Hover for schematics)	Inductance (H) 2 (Tolerance: &plusmn,10%)	DCR max (Ω) 3	SRF typ (MHz) 4	Coupling coefficient	Leakage Inductance (H) 5	Isat (A) 6	both windings 7	one winding 8
MSD1260-124KL_	120	0.42	4.4	0.99	1.3	2.1	0.93	1.3

Каталог

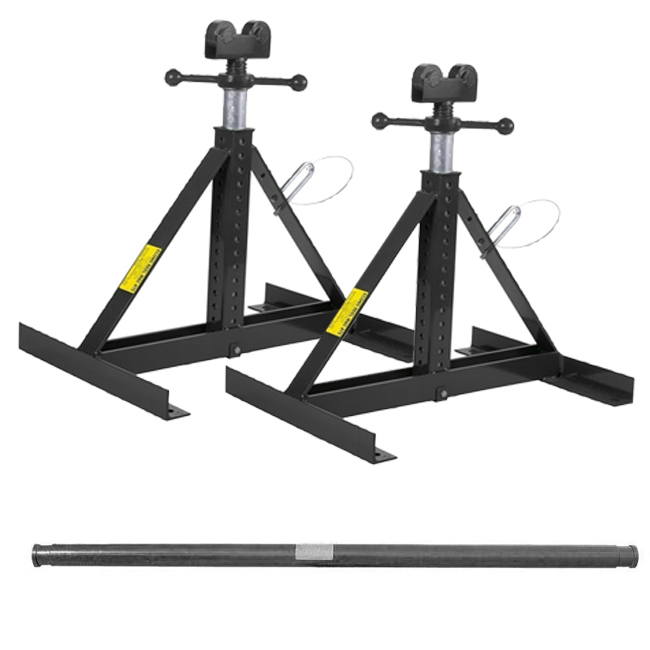

Sumner 75 Econo Mac Reel Jack Stand Kit

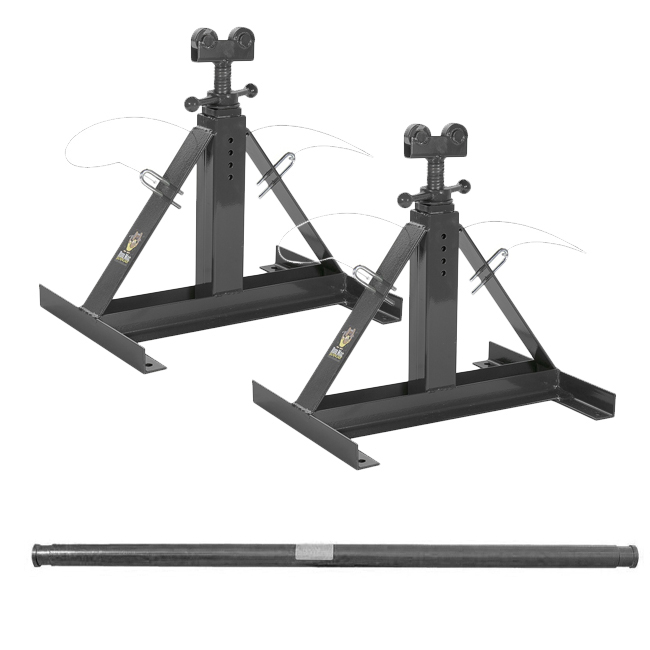

Sumner 70 Screw-Type Reel Mac Reel Jack Stand Kit
