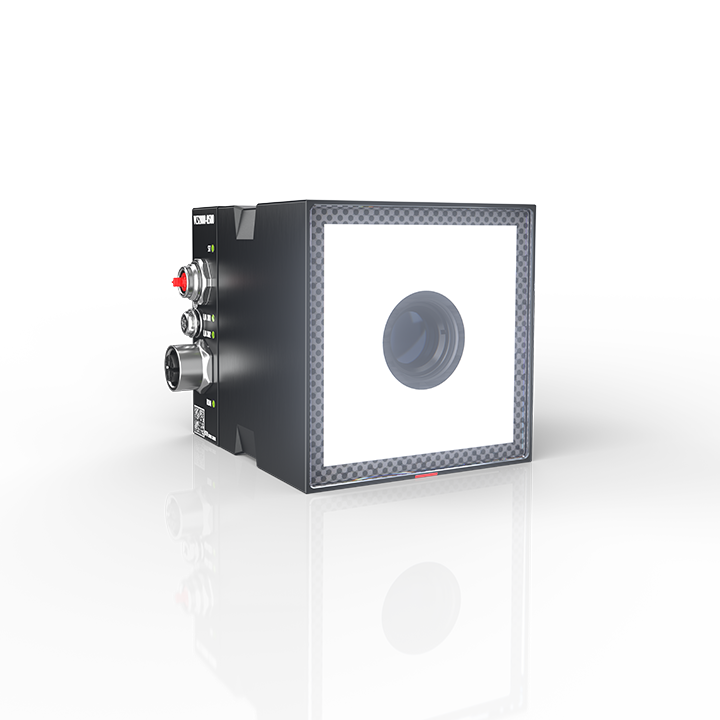

VUI2000-0516 | Area scan camera unit, 2.5 Gbit/s, Sony IMX264, monochrome, 5.0В MP, integrated illumination and variable focus lens, fВ =В 16В mm
01.01.2025
MSD1048-222
General specification Core Material: Ferrite Weight: 1.5– 1.8 g Packaging: 800/13 reel Plastic tape: 24 mm wide, 0.35 mm thick, 16 mm pocket spacing, 5.1 mm pocket depth Winding to Winding Isolation: 200 Vrms, one minute Soldering/Washing Moisture Sensitivity Level (MSL): 1 (unlimited floor life at Resistance to soldering heat: Max three 40 second reflows at +260C, parts cooled to room temperature between cycles Refer to Soldering Coilcraft Components before soldering. PCB Washing: Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info
450,00 ₽
Specifications
Electrical specifications at 25C.
For Flyback Applications
| Part number 1 (Hover for schematics) | Inductance (H) 2 (Tolerance: ±,30%) | DCR max (Ω) 3 | Isolation Voltage (V) | Leakage Inductance (nH) 5 | Turns Ratio |
|---|---|---|---|---|---|
| MSD1048-222NE_ | 2.2 | 0.019 | 200 | 300 | 1 : 1 |
For SEPIC Applications
| Part number 1 (Hover for schematics) | Inductance (H) 2 (Tolerance: ±,30%) | DCR max (Ω) 3 | SRF typ (MHz) 4 | Coupling coefficient | Leakage Inductance (nH) 5 | Isat (A) 6 | Irms (A) | |
|---|---|---|---|---|---|---|---|---|
| both windings 7 | one winding 8 | |||||||
| MSD1048-222NE_ | 2.2 | 0.019 | 65.0 | 0.97 | 300 | 9.1 | 2.4 | 3.4 |
