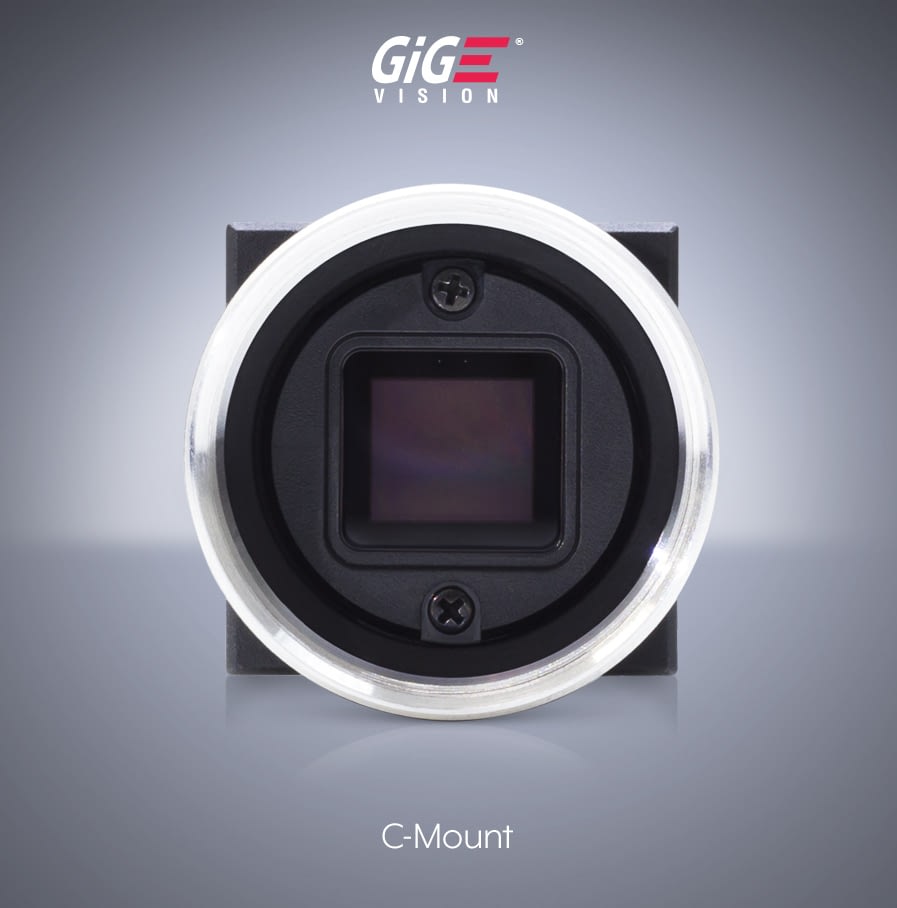

Технические характеристики

Sensor Properties
Sensor Model Sony IMX568 CMOS
Shutter Type Global
Sensor Size 8.8 mm (Type 1/1.8)
Resolution 2448 x 2048 px, 5.0 MP
Pixel Size 2.74 µm (H) x 2.74 µm (V)
Framerate* 22 FPS (23.5 FPS) @ 5.0 MP

Physical Properties
Dimensions 24x24x27.35 mm, (No lens mount 24x24x18.7 mm)
Lens Mount C, C-Mount Extended Head, NF-Mount, No Lens Mount
Weight 30 g, (No lens mount 20 g)

Interface and Power Information
Digital Interface 1000BASE-T RJ45, PoE
ix Industrial, PoE
FFC, PoE
GPIO Interface 8 pin JST connector
Opto-Isolated I/O Ports 1 input, 1 output
Non-Isolated I/O Ports 2 bi-directional
Power Requirement PoE (IEEE 802.3af), or 12-24 VDC external
Power Consumption 3.1W via PoE, 2.5W when powered externally

Imaging Properties
Image Buffer 128 MB
Image Processing Gain, gamma, black level, white balance, LUT, CCM, pixel correction, hue, saturation, color space conversion
Pixel Formats Mono8/10/12/16, Bayer8/10/12/16, RGB8, BGR8, YCbCr8, YCbCr411, YUV422, YUV411
Image Modes Horizontal and vertical binning, decimation, ROI, horizontal and vertical flip
ADC 12 bit
Gain Range 0 dB to 48 dB analog and digital
Exposure Time 22.25 μs to 10 s (Normal) 2.296 μs to 2.464 μs (Short Mode)

Camera Features
User Sets 1 default and 2 custom user set
File System Size 16 MB
Chunk Data Frame counter, offset X/Y, width/height, exposure time, gain, black level, line status, sequencer set
Event Data Acquisition start/end, exposure start/end, line rise/fall, error
Counter Timer 2 counters and 2 timers
Sequencer Exposure time, gain
Synchronization Software trigger, hardware trigger, PTP (IEEE 1588)

Standards and Certifications
Standard GigE Vision v2.0
Compliance CE, FCC, RoHS, REACH, WEEE
Storage Temperature -30 to 60°C
Operating Temperature -10 to 55°C ambient
Humidity Operating: 20% ~ 80%, relative, non-condensing
Shock and Vibration DIN EN 60068-2-27, DIN EN 60068-2-64
Warranty 3 year

Mono EMVA 1288 Results
Dynamic Range 69.75 dB
SNR (Max) 39.75 dB
Saturation Capacity 9443 e-
Absolute Sensitivity Threshold (Measured at 527.5nm) 4.33 γ
Temporal Dark Noise 2.48 e-
Gain 0.42 DN / e-
Dark Current 2.26 e- / s
Dark Signal Non-Uniformity 0.39 e-
Photo Response Non-Uniformity 0.37 %
Linearity Error Max/Min 0.06/-0.21 %

Color EMVA 1288 Results
Dynamic Range 69.63 dB
SNR (Max) 39.7 dB
Saturation Capacity 9295 e-
Absolute Sensitivity Threshold (Measured at 527.5nm) 5.42 γ
Temporal Dark Noise 2.47 e-
Gain 0.416 DN / e-
Dark Current 2.51 e- / s
Dark Signal Non-Uniformity 0.398 e-
Photo Response Non-Uniformity 0.629 %
Linearity Error Max/Min 0.05/-0.12 %

Lens Manufacturer Part # Lens Description 0.4MP
PHX004S		 1.6MP
PHX016S		 2.3MP
PHX023S		 3.2MP
PHX032S		 5.0MP
PHX050S		 5.0MP
PHX050S-P/Q		 6.3MP
PHX064S		 8.9MP
PHX089S		 12.2MP
PHX122S		 12.3MP
PHX120S		 20.0MP
PHX200S
Edmund Optics UC Series #33-300 C-Mount 1/2″ 4mm f/1.8 Good Good Good
Edmund Optics UC Series #33-301 C-Mount 1/2″ 6mm f/1.85 Good Good Good
Edmund Optics UC Series #33-307 C-Mount 1/2″ 8mm f/1.8 Good Good Good
Edmund Optics UC Series #33-303 C-Mount 1/1.8″ 12mm f/1.8 Good Good Good Slight vignette Slight vignette Slight vignette
Edmund Optics UC Series #33-304 C-Mount 1/1.8″ 16mm f/1.8 Good Good Good Slight vignette Slight vignette Slight vignette
Edmund Optics UC Series #33-305 C-Mount 1/1.8″ 25mm f/1.85 Good Good Good Slight vignette Slight vignette Slight vignette
Edmund Optics C Series #67-709 C-Mount 1/1.8″ 6mm, f1.4 Good Good Good Slight vignette Slight vignette Slight vignette
Edmund Optics C Series #58-000 C-Mount 2/3″ 8.5mm, f/1.3 Good Good Good Good Good Good Good Good
Edmund Optics C Series #58-001 C-Mount 2/3″ 12mm, f/1.8 Good Good Good Good Good Good Good Good
Edmund Optics C Series #59-870 C-Mount 2/3″ 16mm, f/1.6 Good Good Good Good Good Good Good Good
Edmund Optics C Series #59-871 C-Mount 2/3″ 25mm, f/1.4 Good Good Good Good Good Good Good Good
Edmund Optics C Series #59-872 C-Mount 2/3″ 35mm, f/1.65 Good Good Good Good Good Good Good Good
Edmund Optics C Series #59-873 C-Mount 2/3″ 50mm, f/2 Good Good Good Good Good Good Good Good
Universe Compact C #BL060C C-Mount 5MP 2/3″ 6mm f/2.0 Good Good Good Good Good Good Good Good
Universe Compact C #BL080C C-Mount 5MP 2/3″ 8mm f/2.0 Good Good Good Good Good Good Good Good
Universe Compact C #NF120-5M-C C-Mount 5MP 2/3″ 12mm f/2.0 Good Good Good Good Good Good Good Good
Universe Compact C #BL160C C-Mount 5MP 2/3″ 16mm f/2.0 Good Good Good Good Good Good Good Good
Universe Compact C #BL250C C-Mount 5MP 2/3″ 25mm f/1.8 Good Good Good Good Good Good Good Good
Universe Compact NF #BL060* NF-Mount 5MP 2/3″ 6mm f/2.0 Good* Good* Good* Good* Good* Good* Good*
Universe Compact NF #BL080* NF-Mount 5MP 2/3″ 8mm f/2.0 Good* Good* Good* Good* Good* Good* Good*
Universe Compact NF #BL120* NF-Mount 5MP 2/3″ 12mm f/2.0 Good* Good* Good* Good* Good* Good* Good*
Universe Compact NF #BL160* NF-Mount 5MP 2/3″ 16mm f/2.0 Good* Good* Good* Good* Good Good* Good*
Universe Compact NF #BL250* NF-Mount 5MP 2/3″ 25mm f/1.8 Good* Good* Good* Good* Good* Good* Good*
LUCID #NF120-5M-C C-Mount 5MP 2/3″ 12mm f/2.0 Good Good Good Good Good Good Good Good
Fujinon HF-XA-5M series #HF6XA-5M C-Mount 5MP 2/3″ 6mm f/1.9 Good Good Good Good Good Good Good Good
Fujinon HF-XA-5M series #HF8XA-5M C-Mount 5MP 2/3″ 8mm f/1.6 Good Good Good Good Good Good Good Good
Fujinon HF-XA-5M series #HF12XA-5M C-Mount 5MP 2/3″ 12mm f/1.6 Good Good Good Good Good Good Good Good
Fujinon HF-XA-5M series #HF16XA-5M C-Mount 5MP 2/3″ 16mm f/1.6 Good Good Good Good Good Good Good Good
Fujinon HF-XA-5M series #HF25XA-5M C-Mount 5MP 2/3″ 25mm f/1.6 Good Good Good Good Good Good Good Good
Fujinon CF-ZA-1S series #CF8ZA-1S C-Mount 23MP 1.2″ 8mm f/1.8 Good Good Good Good Good Good Good Good Good Good Good
Fujinon CF-ZA-1S series #CF12ZA-1S C-Mount 23MP 1.2″ 12mm f/1.8 Good Good Good Good Good Good Good Good Good Good Good
Fujinon CF-ZA-1S series #CF16ZA-1S C-Mount 23MP 1.2″ 16mm f/1.8 Good Good Good Good Good Good Good Good Good Good Good
Fujinon CF-ZA-1S series #CF25ZA-1S C-Mount 23MP 4/3″ 25mm f/1.8 Good Good Good Good Good Good Good Good Good Good Good
Fujinon CF-ZA-1S series #CF35ZA-1S C-Mount 23MP 4/3″ 35mm f/1.8 Good Good Good Good Good Good Good Good Good Good Good
Fujinon CF-ZA-1S series #CF50ZA-1S C-Mount 23MP 4/3″ 50mm f/2.4 Good Good Good Good Good Good Good Good Good Good Good
Computar MPY Series #V0828-MPY C-Mount 12MP 1.1″ 8mm f/2.8 Good Good Good Good Good Good Good Good Good Good Good
Computar MPY Series #V1228-MPY C-Mount 12MP 1.1″ 12mm f/2.8 Good Good Good Good Good Good Good Good Good Good Good
Computar MPY Series #V1628-MPY C-Mount 12MP 1.1″ 16mm f/2.8 Good Good Good Good Good Good Good Good Good Good Good
Computar MPY Series #V2528-MPY C-Mount 12MP 1.1″ 25mm f/2.8 Good Good Good Good Good Good Good Good Good Good Good
Computar MPY Series #V3528-MPY C-Mount 12MP 1.1″ 35mm f/2.8 Good Good Good Good Good Good Good Good Good Good Good
Computar MPT #F1228-MPT C-Mt 45MP 4/3″ 12mm f/2.8 Good Good Good Good Good Good Good Good Good Good Good
Computar MPT #F2524-MPT C-Mt 45MP 4/3″ 25mm f/2.4 Good Good Good Good Good Good Good Good Good Good Good
Edmund Optics CA Series #11-320 TFL-Mount APS-C 50mm f/1.8
Edmund Optics CA Series #11-321 TFL-Mount APS-C 75mm f/2.8
Edmund Optics CA Series #11-322 TFL-Mount APS-C 100mm f/2.8
*Must be used with NF-mount Phoenix models only

Lens Adapter Manufacturer Part # SKU
C-Mount to S-Mount (M12) Adapter LUCID ADA-C-S ADA-C-S
Transform Kits Manufacturer Part # SKU
180° and 90° Transform Kit for 24x24mm Phoenix LUCID PHX24-TK PHX24-TK
FFC to M12 Extender Board for Phoenix with FFC connector LUCID FFC-15-JST-M12 FFC-15-JST-M12
FFC to RJ45 Extender Board for Phoenix with FFC connector LUCID FFC-15-JST-RJ45 FFC-15-JST-RJ45
Cables for 24 x 24 Phoenix Models
Ethernet Cat6a STP Patch Cable – 2.1m, Black, Snagless StarTech C6ASPAT7BK CAB-RR-2M
Ethernet Cat6a STP Patch Cable – 4.6m, Black, Snagless StarTech C6ASPAT15BK CAB-RR-5M
ix Industrial Ethernet Cat6a Cable – 2.0m, Black LUCID CAB-IR-2M CAB-IR-2M
ix Industrial Ethernet Cat6a Cable – 5.0m, Black LUCID CAB-IR-5M CAB-IR-5M
GPIO 8-pin 20cm JST Cable GPIO-8P20 GPIO-8P20
Tripod Mount Adapter
Tripod Adapter PHX-TR PHX-TR
Interface Cards, PoE Injectors
2-CH PCIe GigE Vision PoE+ Card LR-LINK LRES2002PT PCIE-POE2-LR
4-CH PCIe 2.5G/1G, GigE Vision PoE+ Card ioi GE2PX4-PCIE4XE301 PCIE-POE4-2G
Intel Gigabit CT Desktop Adapter Intel EXPI9301CTBLK PCIE-ETH1
TP-Link PoE Injector TP-Link TL-POE150S POEP
Phihong PoE Injector (EU/UK Versions) Phihong POE21U-1AF POEP-PHEU or POEP-PHUK
