MLC1565-472

General specification Core Material: Iron Weight: 2.73 – 5.12 g Soldering/Washing Moisture Sensitivity Level (MSL): 1 (unlimited floor life at Resistance to soldering heat: Max three 40 second reflows at +260C, parts cooled to room temperature between cycles Refer to Soldering Coilcraft Components before soldering. PCB Washing: Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.

450,00 ₽

Артикул: MLC1565-472MLC Категорий: High current flat wire, MLC, MLC1565-472, MLC15xx, Power, Products, Shielded Inductors

Описание

Specifications

Electrical specifications at 25C.

Part number 1	Inductance (H) 2 (Tolerance: &plusmn,20%)	DCR (mΩ) 3		SRF typ (MHz) 4	Isat (A) 5		Irms (A) 6
Part number 1	Inductance (H) 2 (Tolerance: &plusmn,20%)	typ	max	SRF typ (MHz) 4	10% drop	20% drop	20C rise	40C rise
MLC1565-472ML_	4.7	4.0	4.4	32.0	6.2	10.6	11.0	15.6

Каталог

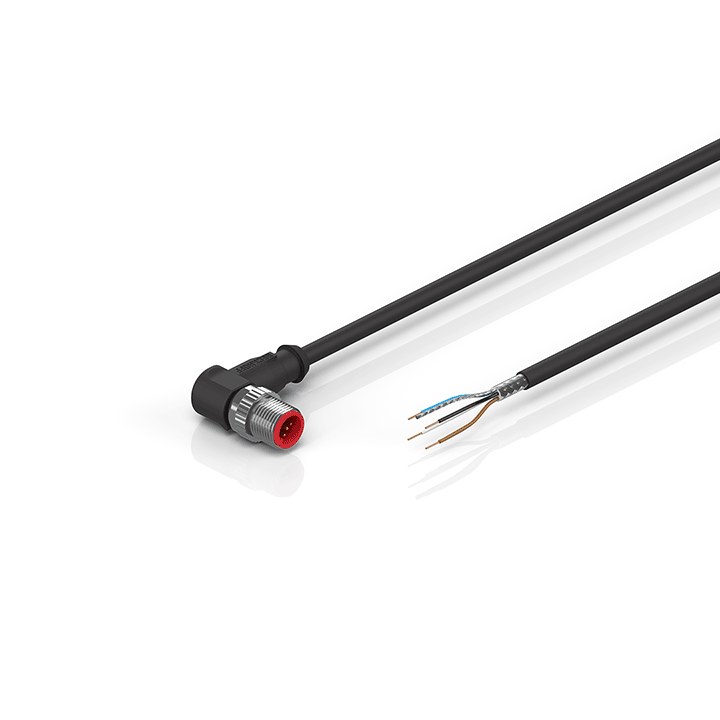

ZK2000-7300-0xxx | Sensor cable, PUR, 4 x 0.34В mmВІ, drag-chain suitable

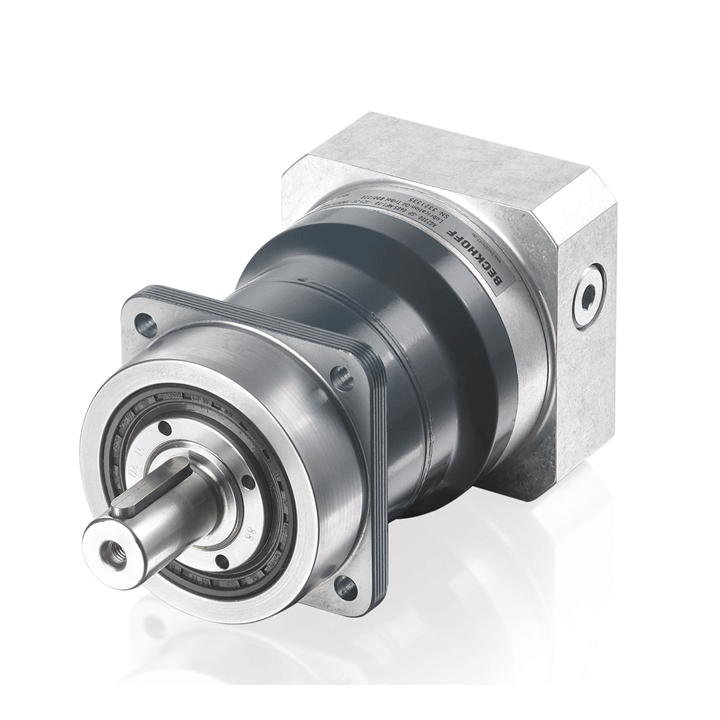

AG2300-+SP240S-MF1-7 | High-end gear series for rotary servomotors
