MLC1550-452

General specification Core Material: Iron Weight: 2.73 – 5.12 g Soldering/Washing Moisture Sensitivity Level (MSL): 1 (unlimited floor life at Resistance to soldering heat: Max three 40 second reflows at +260C, parts cooled to room temperature between cycles Refer to Soldering Coilcraft Components before soldering. PCB Washing: Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.

225,00 ₽

Артикул: MLC1550-452MLC Категорий: High current flat wire, MLC, MLC1550-452, MLC15xx, Power, Products, Shielded Inductors

Описание

Specifications

Electrical specifications at 25C.

Part number 1	Inductance (H) 2 (Tolerance: &plusmn,20%)	DCR (mΩ) 3		SRF typ (MHz) 4	Isat (A) 5		Irms (A) 6
Part number 1	Inductance (H) 2 (Tolerance: &plusmn,20%)	typ	max	SRF typ (MHz) 4	10% drop	20% drop	20C rise	40C rise
MLC1550-452ML_	4.5	7.1	7.9	34.0	7.1	11.8	8.4	11.7

Каталог

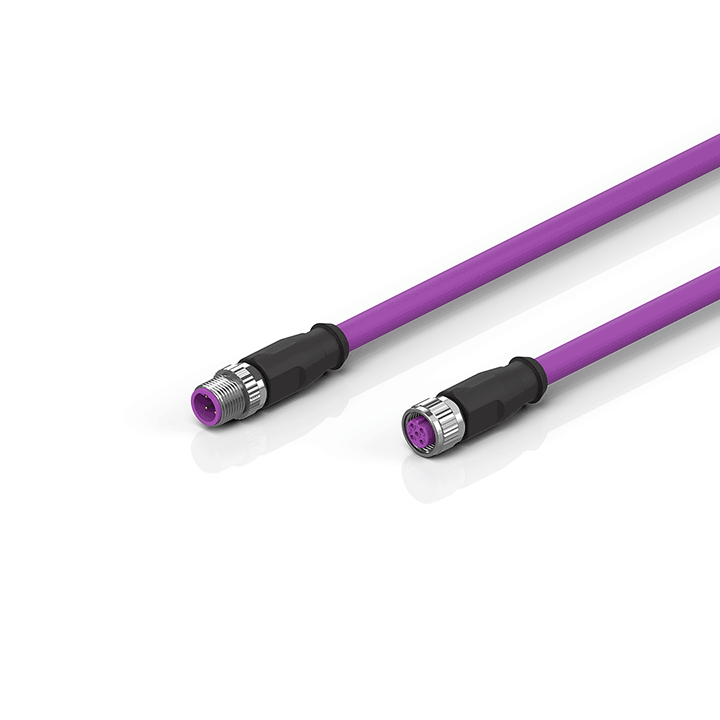

ZK1031-6251-1xxx | PROFIBUS cable, PUR, drag-chain suitable
