MA5421-AL

General specification Core Material: Ferrite Weight: 6.0 g Packaging: 175 per 13 reel Plastic tape: 32 mm wide, 0.6 mm thick, 28 mm pocket spacing, 12.93 mm pocket depth. Soldering/Washing Moisture Sensitivity Level (MSL): 1 (unlimited floor life at Resistance to soldering heat: Three reflows at &gt,217C for 90 seconds (+260C &plusmn,5C for 20 40 seconds), allowing parts to cool to room temperature between. Refer to Soldering Coilcraft Components before soldering. PCB Washing: Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.

675,00 ₽

Артикул: MA5421-ALD Категорий: MA5421, MA5421-AL, Power Converter Transformers, Power Transformers, Products, Transformers

Описание

Specifications

Electrical specifications at 25C.

Part number 1 (Hover for schematics)	Inductance at 0A (H) 2 (Tolerance: &plusmn,15%)	Inductance min at 10 A (H)	DCR max (Ω) 3		Leakage Inductance max (H) 4	Turns Ratio 5	Current (A) 6	Isolation Voltage (Vrms) 7
Part number 1 (Hover for schematics)	Inductance at 0A (H) 2 (Tolerance: &plusmn,15%)	Inductance min at 10 A (H)	Pri	Sec	Leakage Inductance max (H) 4	Pri : Sec	Current (A) 6	Isolation Voltage (Vrms) 7
MA5421-AL_	3.4	2.8	0.009	0.011	0.15	1 : 1	3.3	1500

Каталог

Caiman Goat Grain Hi-Vis Leather Palm Patched Rappelling Mechanics Gloves

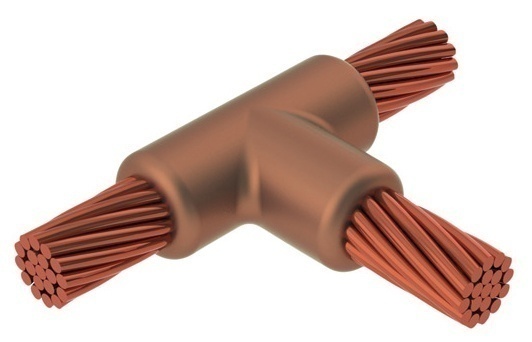

Cadweld Cable to Cable T-Connection Mold
