MA5237-EL

General specification Core Material: Ferrite Weight: 7.1 g Packaging: 200 per 13 reel Plastic tape: 44 mm wide, 0.4 mm thick, 24 mm pocket spacing, 11.5 mm pocket depth Soldering/Washing Moisture Sensitivity Level (MSL): 1 (unlimited floor life at Resistance to soldering heat: Max three 40 second reflows at +260C, parts cooled to room temperature between cycles Refer to Soldering Coilcraft Components before soldering. PCB Washing: Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.

1125,00 ₽

Артикул: MA5237-ELD Категорий: MA5237, MA5237-EL, Power Converter Transformers, Power Transformers, Products, Transformers

Описание

Specifications

Electrical specifications at 25C.

Part number 2 (Hover for schematics)	Inductance at 0A (H) 3 (Tolerance: &plusmn,10%)	Inductance min at 1.5 A (H) 4	DCR max (Ω) 5			Leakage Inductance max (H) 6	Turns Ratio 7	Isolation Voltage (Vrms) 8
Part number 2 (Hover for schematics)	Inductance at 0A (H) 3 (Tolerance: &plusmn,10%)	Inductance min at 1.5 A (H) 4	Pri	Sec	Aux	Leakage Inductance max (H) 6	Pri : Sec : Aux	Isolation Voltage (Vrms) 8
MA5237-EL_	60.0	54.0	0.110	0.035	0.170	0.565	1 : 0.5 : 0.25	3500

Каталог

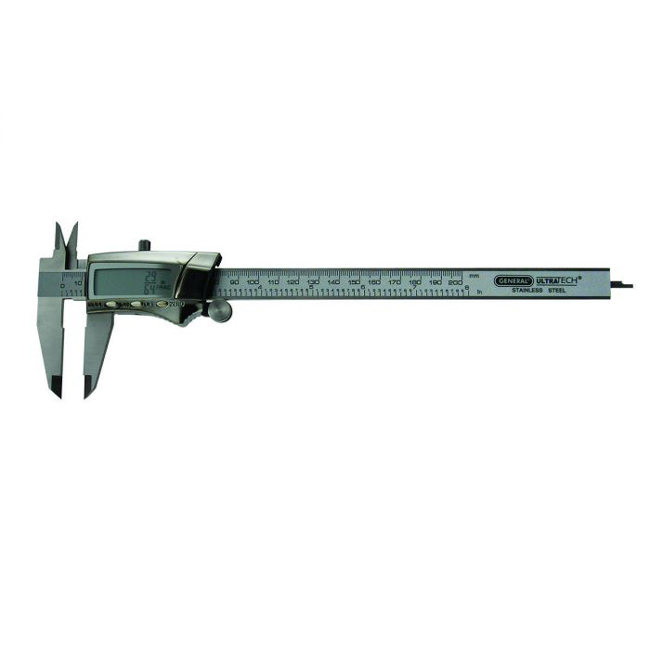

General Tools 8 Inch Steel Digital Caliper
