LPS8045B-682

General specification Core Material: Ferrite Weight: 0.88 – 1.1 g Packaging: 250/7 reel, 1000/13 reel, Plastic tape: 16 mm wide, 0.28 mm thick, 12 mm pocket spacing, 4.83 mm pocket depth Soldering/Washing Moisture Sensitivity Level (MSL): 1 (unlimited floor life at Resistance to soldering heat: Max three 40 second reflows at +260C, parts cooled to room temperature between cycles Refer to Soldering Coilcraft Components before soldering. Recommended Pick & Place Nozzle: OD: 8mm, ID:4 mm PCB Washing: Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.

225,00 ₽

Артикул: LPS8045B-682MRC Категорий: Ferrite Drum, LPS8045B, LPS8045B-682, Power, Products, Shielded Inductors, ЛПС

Описание

Specifications

Electrical specifications at 25C. Operating voltage 400 V max

Part number 1	Inductance (H) 2 (Tolerance: &plusmn,20%)	DCR (Ω) 3		SRF typ (MHz)	Isat (A) 4			Irms (A) 5
Part number 1	Inductance (H) 2 (Tolerance: &plusmn,20%)	typ	max	SRF typ (MHz)	10% drop	20% drop	30% drop	20C rise	40C rise
LPS8045B-682MR_	6.8	0.059	0.075	63.0	3.6	3.9	4.0	1.8	2.4

Каталог

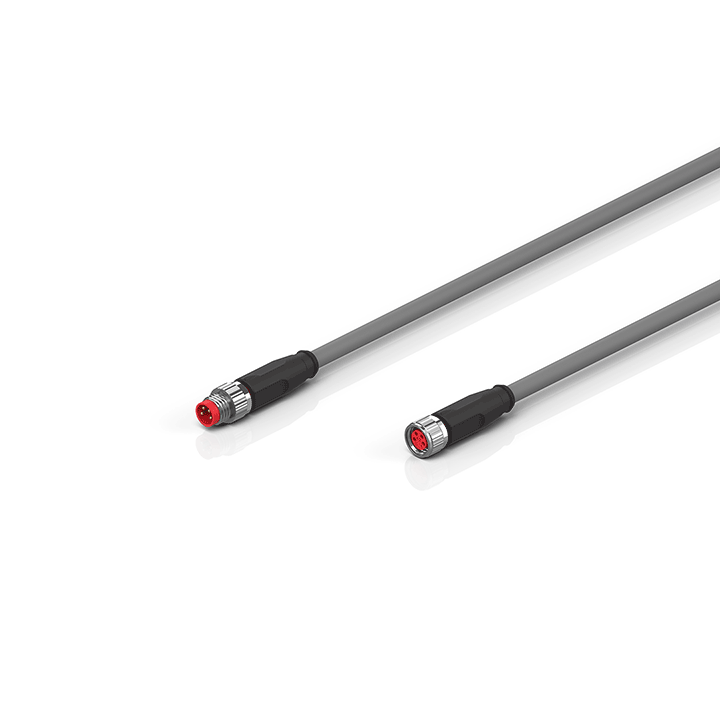

ZK2020-3132-3xxx | Power cable, PVC, 4 x 0.34В mmВІ, fixed installation
