LPS6235-565

General specification Core Material: Ferrite Weight: 460 – 480 mg Packaging: 350/7 reel, 1500/13 reel Plastic tape: 16 mm wide, 0.3 mm thick, 12 mm pocket spacing, 3.68 mm pocket depth Soldering/Washing Moisture Sensitivity Level (MSL): 1 (unlimited floor life at Resistance to soldering heat: Max three 40 second reflows at +260C, parts cooled to room temperature between cycles Refer to Soldering Coilcraft Components before soldering. Recommended Pick & Place Nozzle: OD: 6.2 mm, ID: &lt, 3.1 mm PCB Washing: Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.

225,00 ₽

Артикул: LPS6235-565MRC Категорий: Ferrite Drum, Power, Products, Shielded Inductors, ЛПС, ЛПС6235, ЛПС6235-565

Описание

Specifications

Electrical specifications at 25C. Operating voltage 400 V max

Part number 1	Inductance (mH) 2 (Tolerance: &plusmn,20%)	DCR max (Ω) 3	SRF typ (kHz) 4	Isat (A) 5			Irms (A) 6
Part number 1	Inductance (mH) 2 (Tolerance: &plusmn,20%)	DCR max (Ω) 3	SRF typ (kHz) 4	10% drop	20% drop	30% drop	20C rise	40C rise
LPS6235-565MR_	5.6	16.4	860	0.060	0.070	0.080	0.10	0.13

Каталог

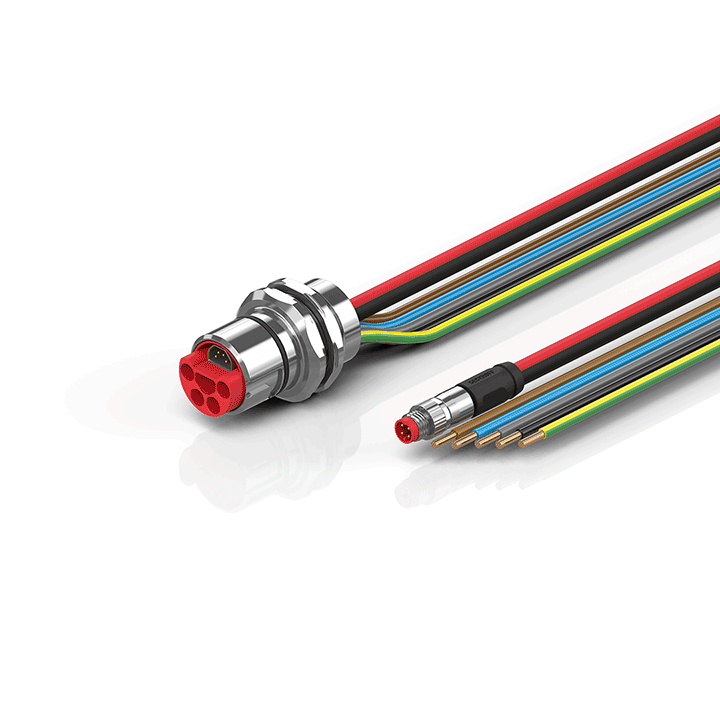

ZK7A14-AX00-0xxx | B23, ECP cable, PUR, 5 G 4.0 mmВІ + (1 x 4 x AWG22), drag-chain suitable, key 3 (user-defined voltage)
