LPS5030-123

General specification Core Material: Ferrite Weight: 226 – 244 mg Packaging: 750/7 reel, 2500/13 reel Plastic tape: 12 mm wide, 0.32 mm thick, 8 mm pocket spacing, 3.1 mm pocket depth Soldering/Washing Moisture Sensitivity Level (MSL): 1 (unlimited floor life at Resistance to soldering heat: Max three 40 second reflows at +260C, parts cooled to room temperature between cycles Refer to Soldering Coilcraft Components before soldering. Recommended Pick & Place Nozzle: OD: 5 mm, ID: &lt, 2.5 mm PCB Washing: Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.

225,00 ₽

Артикул: LPS5030-123MRC Категорий: Ferrite Drum, LPS5030, LPS5030-123, Power, Products, Shielded Inductors, ЛПС

Описание

Specifications

Electrical specifications at 25C.

Part number 1	Inductance (H) 2 (Tolerance: &plusmn,20%)	DCR max (Ω) 3	SRF typ (MHz) 4	Isat (A) 5			Irms (A) 6
Part number 1	Inductance (H) 2 (Tolerance: &plusmn,20%)	DCR max (Ω) 3	SRF typ (MHz) 4	10% drop	20% drop	30% drop	20C rise	40C rise
LPS5030-123MR_	12	0.16	24.0	1.3	1.4	1.4	0.95	1.4

Каталог

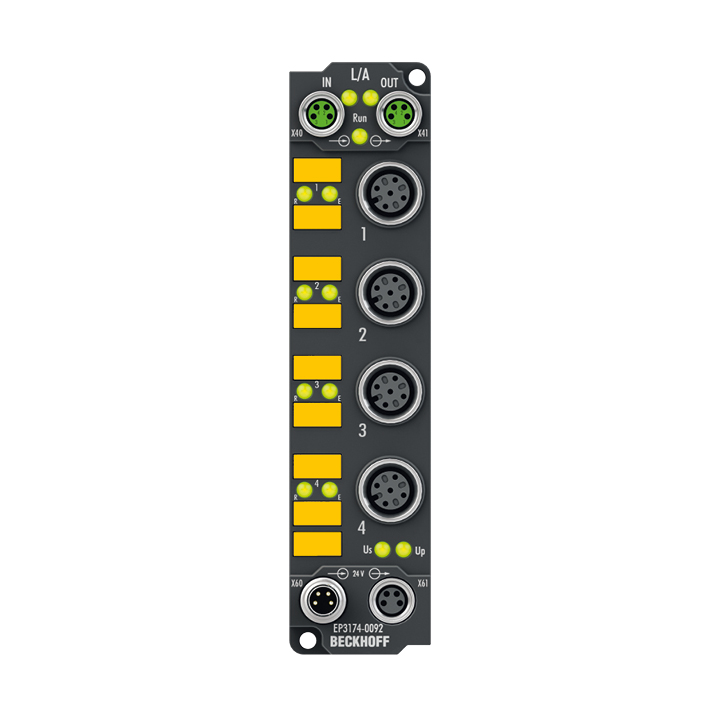

EP3174-0092 | EtherCAT Box, 4-channel analog input, multi-function, В±10В V, 0/4вЂ¦20В mA, 16В bit, differential, M12, TwinSAFEВ SC
