LPS5030-104

General specification Core Material: Ferrite Weight: 226 – 244 mg Packaging: 750/7 reel, 2500/13 reel Plastic tape: 12 mm wide, 0.32 mm thick, 8 mm pocket spacing, 3.1 mm pocket depth Soldering/Washing Moisture Sensitivity Level (MSL): 1 (unlimited floor life at Resistance to soldering heat: Max three 40 second reflows at +260C, parts cooled to room temperature between cycles Refer to Soldering Coilcraft Components before soldering. Recommended Pick & Place Nozzle: OD: 5 mm, ID: &lt, 2.5 mm PCB Washing: Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.

225,00 ₽

Артикул: LPS5030-104MRC Категорий: Ferrite Drum, LPS5030, LPS5030-104, Power, Products, Shielded Inductors, ЛПС

Описание

Specifications

Electrical specifications at 25C.

Part number 1	Inductance (H) 2 (Tolerance: &plusmn,20%)	DCR max (Ω) 3	SRF typ (MHz) 4	Isat (A) 5			Irms (A) 6
Part number 1	Inductance (H) 2 (Tolerance: &plusmn,20%)	DCR max (Ω) 3	SRF typ (MHz) 4	10% drop	20% drop	30% drop	20C rise	40C rise
LPS5030-104MR_	100	0.60	10.0	0.27	0.31	0.32	0.55	0.75

Каталог

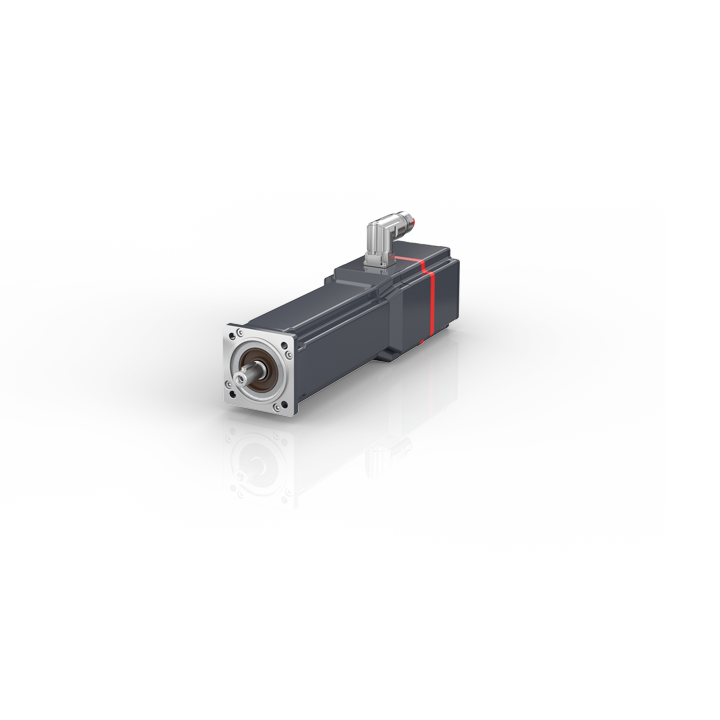

AMP8533-Ex1z | Distributed servo drive with increased rotor moment of inertia 3.15 Nm (M0), F3 (72В mm)
