LPS4040-335

General specification Core Material: Ferrite Weight: 200 mg Packaging: 500/7 reel, 1500/13 reel Plastic tape: 12 mm wide, 0.30 mm thick, 8 mm pocket spacing, 4.32 mm pocket depth Soldering/Washing Moisture Sensitivity Level (MSL): 1 (unlimited floor life at Resistance to soldering heat: Max three 40 second reflows at +260C, parts cooled to room temperature between cycles. Refer to Soldering Coilcraft Components before soldering. Recommended Pick & Place Nozzle: OD: 4 mm, ID: &le, 2 mm PCB Washing: Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.

0,00 ₽

Артикул: LPS4040-335MRC Категорий: Ferrite Drum, LPS4040-335, Power, Products, Shielded Inductors, ЛПС, ЛПС4040

Описание

Specifications

Electrical specifications at 25C.

Part number 1	Inductance (H) 2 (Tolerance: &plusmn,20%)	DCR max (Ω) 3	SRF typ (kHz) 4	Isat (A) 5			Irms (A) 6
Part number 1	Inductance (H) 2 (Tolerance: &plusmn,20%)	DCR max (Ω) 3	SRF typ (kHz) 4	10% drop	20% drop	30% drop	20C rise	40C rise
LPS4040-335MR_	3300	16.4	1100	0.058	0.064	0.068	0.100	0.140

Каталог

EP3184-0002 | EtherCAT Box, 4-channel analog input, multi-function, В±10В V, 0/4вЂ¦20В mA, 16В bit, single-ended, M12

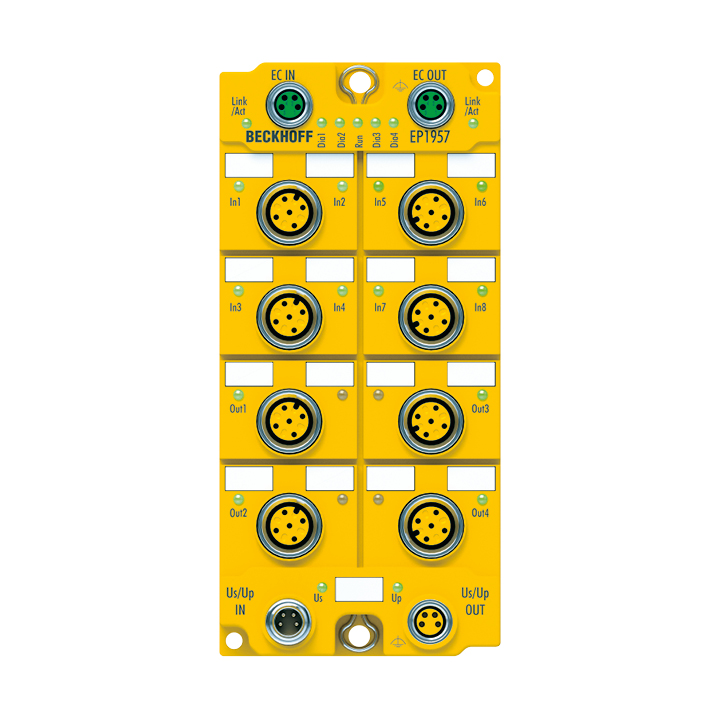

EP1957-0022 | EtherCAT Box, 8-channel digital input + 4-channel digital output, 24В VВ DC, 0.5В A, M12, TwinSAFE, TwinSAFE Logic
