LPR6235-752S

General specification Core Material: Ferrite Weight: 460 – 480 mg Packaging: 350/7 reel, 1500/13 reel Plastic tape: 16 mm wide, 0.3 mm thick, 12 mm pocket spacing, 3.68 mm pocket depth Soldering/Washing Moisture Sensitivity Level (MSL): 1 (unlimited floor life at Resistance to soldering heat: Max three 40 second reflows at +260C, parts cooled to room temperature between cycles Refer to Soldering Coilcraft Components before soldering. Recommended Pick & Place Nozzle: OD: 6.2 mm, ID: &le, 3.1 mm PCB Washing: Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.

450,00 ₽

Артикул: LPR6235-752SMRC Категорий: LPR6235-752S, Power Converter Transformers, Power Transformers, Products, Transformers, ЛПР6235

Описание

Specifications

Electrical specifications at 25C.

For Flyback Applications

Part number 1 (Hover for schematics)	Inductance (H) 2 (Tolerance: &plusmn,20%)	DCR (Ω) 3		Isolation Voltage (V)	Turns Ratio
Part number 1 (Hover for schematics)	Inductance (H) 2 (Tolerance: &plusmn,20%)	L1 max	L2 max	Isolation Voltage (V)	Turns Ratio
LPR6235-752SMR_	7.5	0.085	340	300	1 : 100

For SEPIC Applications

Part number 1 (Hover for schematics)	Inductance (H) 2 (Tolerance: &plusmn,20%)	DCR max (Ω) 3		SRF typ (kHz) 4	Isat (A) 5
Part number 1 (Hover for schematics)	Inductance (H) 2 (Tolerance: &plusmn,20%)	L1	L2	SRF typ (kHz) 4	Isat (A) 5
LPR6235-752SMR_	7.5	0.085	340	230	1.6

Каталог

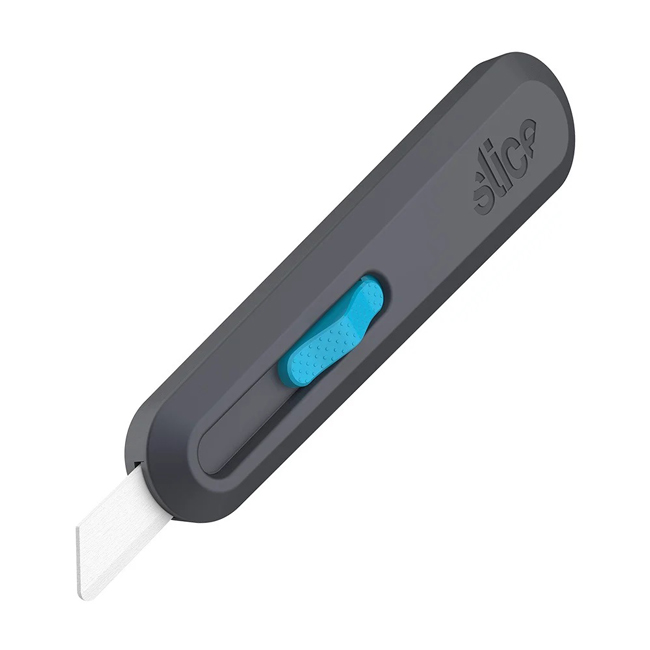

Slice Smart-Retracting Utility Knife
