LPR4012-202B

General specification Core Material: Ferrite Weight: 54 – 64 mg Packaging: 1000/7 reel, 3500/13 reel Plastic tape: 12 mm wide, 0.25 mm thick, 8 mm pocket spacing, 1.45 mm pocket depth Soldering/Washing Moisture Sensitivity Level (MSL): 1 (unlimited floor life at Resistance to soldering heat: Max three 40 second reflows at +260C, parts cooled to room temperature between cycles Refer to Soldering Coilcraft Components before soldering. Recommended Pick & Place Nozzle: OD: 4 mm, ID: &le, 2 mm PCB Washing: Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.

225,00 ₽

Артикул: LPR4012-202BMRC Категорий: Coupled Inductors, LPR, LPR4012, LPR4012-202B, Power, Products

Описание

Specifications

Electrical specifications at 25C.

For Flyback Applications

Part number 1 (Hover for schematics)	Inductance (H) 2 (Tolerance: &plusmn,20%)	DCR (Ω) 3		Isolation Voltage (V)	Turns Ratio
Part number 1 (Hover for schematics)	Inductance (H) 2 (Tolerance: &plusmn,20%)	L1 max	L2 max	Isolation Voltage (V)	Turns Ratio
LPR4012-202BMR_	2.0	0.24	0.48	100	1 : 2

For SEPIC Applications

Part number 1 (Hover for schematics)	Inductance (H) 2 (Tolerance: &plusmn,20%)	DCR max (Ω) 3		SRF typ (MHz) 4	Isat (A) 5			Irms (A) 6
Part number 1 (Hover for schematics)	Inductance (H) 2 (Tolerance: &plusmn,20%)	L1	L2	SRF typ (MHz) 4	10% drop	20% drop	30% drop	Irms (A) 6
LPR4012-202BMR_	2.0	0.24	0.48	49.4	1.7	1.7	1.7	1.5

Каталог

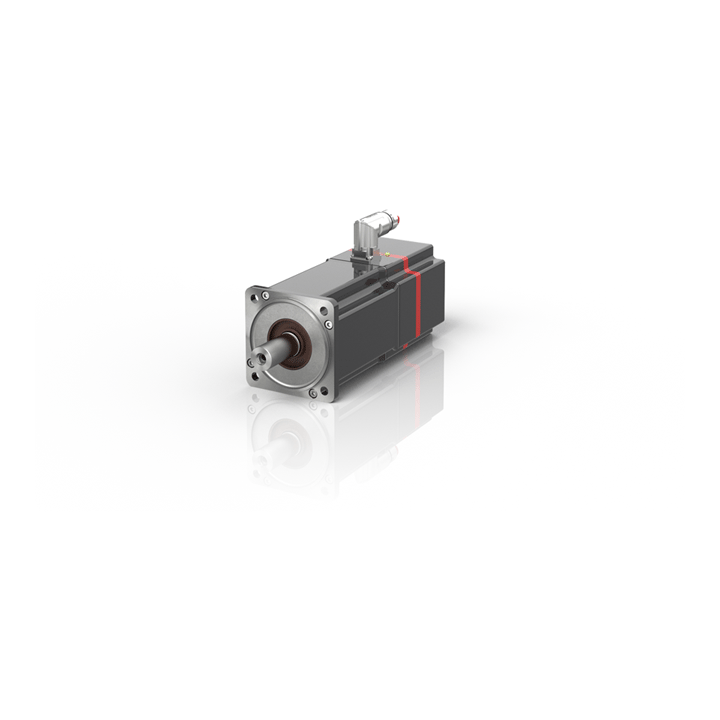

AMP8052-Lx3z | Distributed servo drive 5.60 Nm (M0), F5 (104В mm)
