LPO2506I-474

General specification Core Material: Ferrite Weight: 240 – 260 mg Packaging: 1000/13 reel Plastic tape: 12 mm wide, 0.23 mm thick, 8 mm pocket spacing, 1.37 mm pocket depth Soldering/Washing Moisture Sensitivity Level (MSL): 1 (unlimited floor life at Resistance to soldering heat: Three reflows at &gt,217C for 90 seconds (+260C &plusmn,5C for 20 40 seconds), allowing parts to cool to room temperature between. Refer to Soldering Coilcraft Components before soldering. PCB Washing: Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.

225,00 ₽

Артикул: LPO2506I-474LD Категорий: Ferrite Drum Surface Mount, LPO2506I-474, Power, Products, Unshielded Inductors, ЛПО, ЛПО2506

Описание

Specifications

Electrical specifications at 25C.

In-Board Version Part number 1	Inductance (H) 2 (Tolerance: &plusmn,20%)	DCR max (Ω) 3	SRF typ (MHz)	Isat (A) 4	Irms (A) 5
In-Board Version Part number 1	Inductance (H) 2 (Tolerance: &plusmn,20%)	DCR max (Ω) 3	SRF typ (MHz)	Isat (A) 4	Irms (A) 5	40C rise
LPO2506I-474L_	470	6.8	6.5	0.14	0.24

Каталог

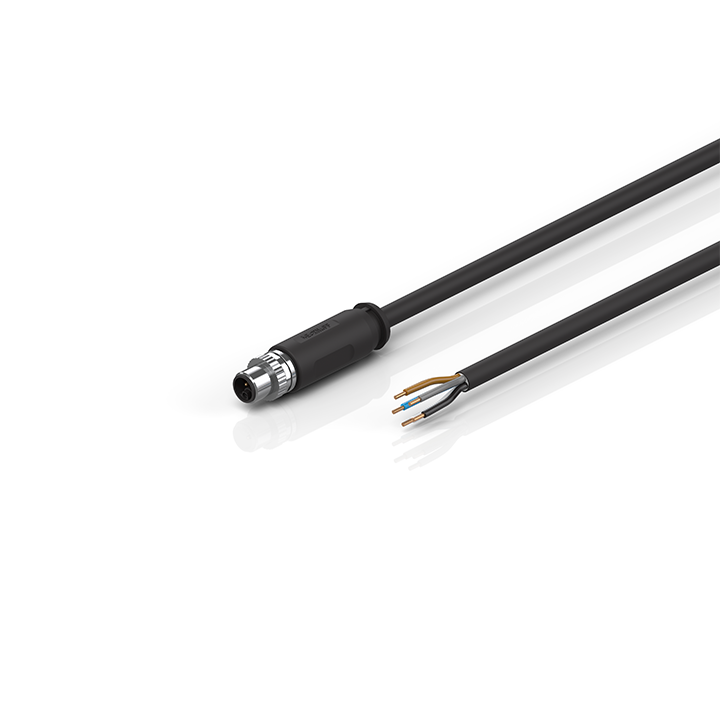

ZK2050-5100-0xxx | Power cable, PUR, drag-chain suitable, 5 x 1.5В mmВІ
