LPH8045-153

General specification Core Material: Ferrite Weight: 825 – 875 mg Packaging: 250/7reel, 1000/13 reel, Plastic tape: 16 mm wide, 0.28 mm thick, 12 mm pocket spacing, 4.95 mm pocket depth Soldering/Washing Moisture Sensitivity Level (MSL): 1 (unlimited floor life at Resistance to soldering heat: Max three 40 second reflows at +260C, parts cooled to room temperature between cycles Refer to Soldering Coilcraft Components before soldering. Recommended Pick & Place Nozzle: OD:8 mm, ID:4 mm PCB Washing: Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.

0,00 ₽

Категорий: 1 1 1 Shielded Coupled, Coupled Inductors, LPH, LPH8045, LPH8045-153, Power, Products

Описание

Specifications

Electrical specifications at 25C.

For Flyback Applications

Part number 1 (Hover for schematics)	Inductance (H) 2 (Tolerance: &plusmn,20%)	DCR (mΩ) 3		Isolation Voltage (V)	Turns Ratio
Part number 1 (Hover for schematics)	Inductance (H) 2 (Tolerance: &plusmn,20%)	typ	max	Isolation Voltage (V)	Turns Ratio
LPH8045-153MR_	15	306	331	200	1 : 1

For SEPIC Applications

Part number 1 (Hover for schematics)	Inductance (H) 2 (Tolerance: &plusmn,20%)	DCR (mΩ) 3		SRF typ (MHz) 4	Isat (A) 5			Irms (A) 6
Part number 1 (Hover for schematics)	Inductance (H) 2 (Tolerance: &plusmn,20%)	typ	max	SRF typ (MHz) 4	10% drop	20% drop	30% drop	Irms (A) 6
LPH8045-153MR_	15	306	331	18.9	2.3	2.7	2.9	1.1

Каталог

AMP8543-Kx3z | Distributed servo drive with increased rotor moment of inertia 4.70 Nm (M0), F4 (87В mm)

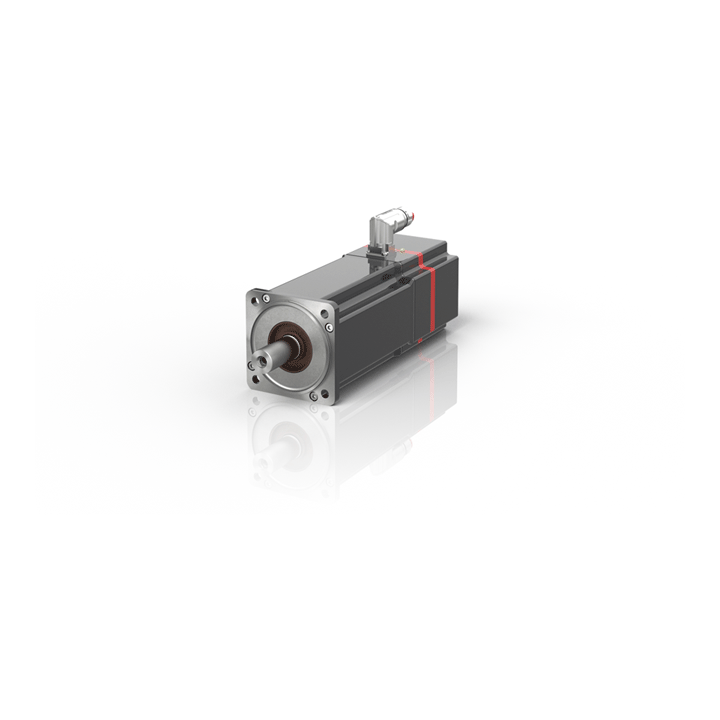

AMP8553-Kx2z | Distributed servo drive with increased rotor moment of inertia 9.60 Nm (M0), F5 (104В mm)
