LPD8035V-333

General specification Core Material: Ferrite Weight: 210 – 225 mg Packaging: 350/7 reel, 1500/13 reel Plastic tape: 16 mm wide, 0.35 mm thick, 12 mm pocket spacing, 3.68 mm pocket depth Soldering/Washing Moisture Sensitivity Level (MSL): 1 (unlimited floor life at Resistance to soldering heat: Three reflows at &gt,217C for 90 seconds (+260C &plusmn,5C for 20 40 seconds), allowing parts to cool to room temperature between. Refer to Soldering Coilcraft Components before soldering. Recommended Pick & Place Nozzle: OD: 6.2 mm, ID: &le, 3.1 mm PCB Washing: Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.

900,00 ₽

Артикул: LPD8035V-333MRC Категорий: 1 1 High Isolation Coupled, Coupled Inductors, LPD8035V, LPD8035V-333, Power, Products, ЛПД_В

Описание

Specifications

Electrical specifications at 25C.

For Flyback Applications

Part number 1 (Hover for schematics)	Inductance (H) 2 (Tolerance: &plusmn,20%)	DCR (Ω) 3		Isolation Voltage (V) 4	Leakage Inductance (nH) 6	Turns Ratio
Part number 1 (Hover for schematics)	Inductance (H) 2 (Tolerance: &plusmn,20%)	typ	max	Isolation Voltage (V) 4	Leakage Inductance (nH) 6	Turns Ratio
LPD8035V-333MR_	33	0.62	0.66	1500	350	1 : 1

For SEPIC Applications

Part number 1 (Hover for schematics)	Inductance (H) 2 (Tolerance: &plusmn,20%)	DCR (Ω) 3		SRF typ (MHz) 5	Coupling coefficient	Leakage Inductance (nH) 6	Isat (A) 7	Irms (A)
Part number 1 (Hover for schematics)	Inductance (H) 2 (Tolerance: &plusmn,20%)	typ	max	SRF typ (MHz) 5	Coupling coefficient	Leakage Inductance (nH) 6	Isat (A) 7	both windings 8	one winding 9
LPD8035V-333MR_	33	0.62	0.66	13.2	0.99	350	1.0	0.52	0.73

Каталог

ZK7001-0305-0xxx | EtherCAT P cable, AWG24, PUR, drag-chain suitable

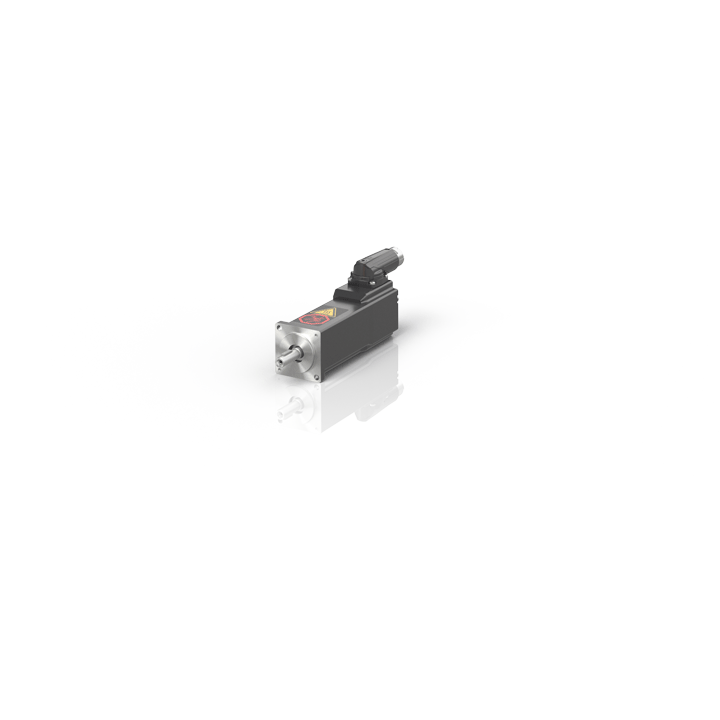

AM8011 | Servomotor 0.20 Nm (M0), F1 (40В mm)
