LPD6235-474

General specification Core Material: Ferrite Weight: 420 – 480 mg Packaging: 350/7 reel, 1500/13 reel Plastic tape: 16 mm wide, 0.3 mm thick, 12 mm pocket spacing, 3.68 mm pocket depth Winding to Winding Isolation: 100 Vrms, one minute Soldering/Washing Moisture Sensitivity Level (MSL): 1 (unlimited floor life at Resistance to soldering heat: Max three 40 second reflows at +260C, parts cooled to room temperature between cycles Refer to Soldering Coilcraft Components before soldering. Recommended Pick & Place Nozzle: OD: 6.2 mm, ID: &lt, 3.1 mm PCB Washing: Tested with pure water or alcohol only. More info.

225,00 ₽

Артикул: LPD6235-474MRC Категорий: 1 1 Shielded Coupled, Coupled Inductors, LPD6235, Power, Products, ЛПД, ЛПД6235-474

Описание

Specifications

Electrical specifications at 25C.

For Flyback Applications

Part number 1 (Hover for schematics)	Inductance (H) 2 (Tolerance: &plusmn,20%)	DCR max (Ω) 3	Isolation Voltage (V)	Leakage Inductance (nH) 5	Turns Ratio
Part number 1 (Hover for schematics)	Inductance (H) 2 (Tolerance: &plusmn,20%)	DCR max (Ω) 3	Isolation Voltage (V)	Leakage Inductance (nH) 5	Turns Ratio
LPD6235-474MR_	470	3.5	100	610	1 : 1

For SEPIC Applications

Part number 1 (Hover for schematics)	Inductance (H) 2 (Tolerance: &plusmn,20%)	DCR max (Ω) 3	SRF typ (MHz) 4	Coupling coefficient	Leakage Inductance (nH) 5	Isat (A) 6			Irms (A)
Part number 1 (Hover for schematics)	Inductance (H) 2 (Tolerance: &plusmn,20%)	DCR max (Ω) 3	SRF typ (MHz) 4	Coupling coefficient	Leakage Inductance (nH) 5	10% drop	20% drop	30% drop	both windings 7	one winding 8
LPD6235-474MR_	470	3.5	3.0	&gt,0.99	610	0.18	0.22	0.23	0.25	0.35

Каталог

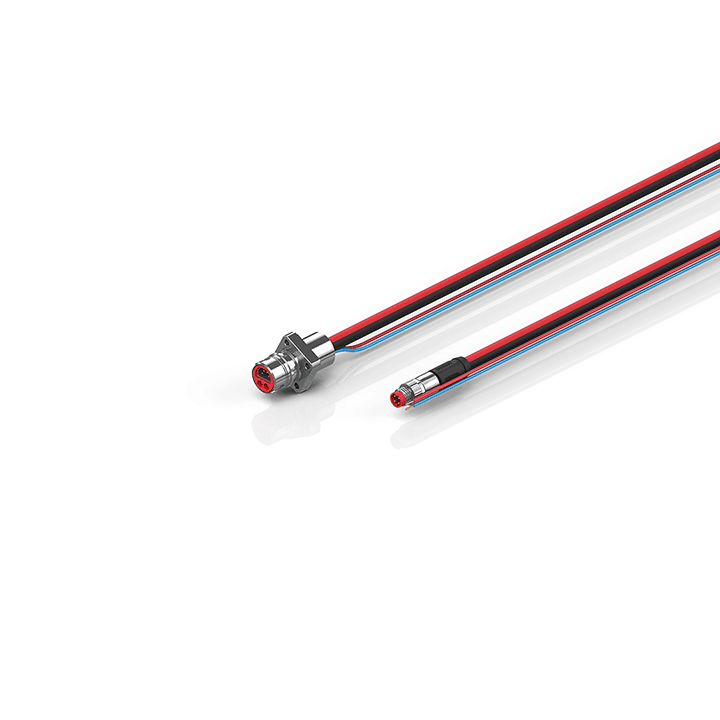

ZK7502-AB00-0xxx | B12, ECP cable, PUR, 2 x 0.75 mmВІ + (1 x 4 x AWG22), drag-chain suitable, key 2 (user-defined voltage)
