LPD5030V-682

General specification Core Material: Ferrite Weight: 210 – 225 mg Packaging: 750/7 reel, 2500/13 reel Plastic tape: 12 mm wide, 0.32 mm thick, 8 mm pocket spacing, 3.1 mm pocket depth. Soldering/Washing Moisture Sensitivity Level (MSL): 1 (unlimited floor life at Resistance to soldering heat: Three reflows at &gt,217C for 90 seconds (+260C &plusmn,5C for 20 40 seconds), allowing parts to cool to room temperature between. Refer to Soldering Coilcraft Components before soldering. Recommended Pick & Place Nozzle: OD: 5 mm, ID: &le, 2.5 mm PCB Washing: Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.

225,00 ₽

Артикул: LPD5030V-682MRC Категорий: 1 1 High Isolation Coupled, Coupled Inductors, LPD5030V, LPD5030V-682, Power, Products, ЛПД_В

Описание

Specifications

Electrical specifications at 25C.

For Flyback Applications

Part number 1 (Hover for schematics)	Inductance (H) 2 (Tolerance: &plusmn,20%)	DCR max (Ω) 3	Isolation Voltage (V) 4	Leakage Inductance (H) 6	Turns Ratio
Part number 1 (Hover for schematics)	Inductance (H) 2 (Tolerance: &plusmn,20%)	DCR max (Ω) 3	Isolation Voltage (V) 4	Leakage Inductance (H) 6	Turns Ratio
LPD5030V-682MR_	6.8	0.395	1000	0.11	1 : 1

For SEPIC Applications

Part number 1 (Hover for schematics)	Inductance (H) 2 (Tolerance: &plusmn,20%)	DCR max (Ω) 3	SRF typ (MHz) 5	Coupling coefficient	Leakage Inductance (H) 6	Isat (A) 7			Irms (A)
Part number 1 (Hover for schematics)	Inductance (H) 2 (Tolerance: &plusmn,20%)	DCR max (Ω) 3	SRF typ (MHz) 5	Coupling coefficient	Leakage Inductance (H) 6	10% drop	20% drop	30% drop	both windings 8	one winding 9
LPD5030V-682MR_	6.8	0.395	49.9	0.97	0.11	1.3	1.5	1.6	0.59	0.83

Каталог

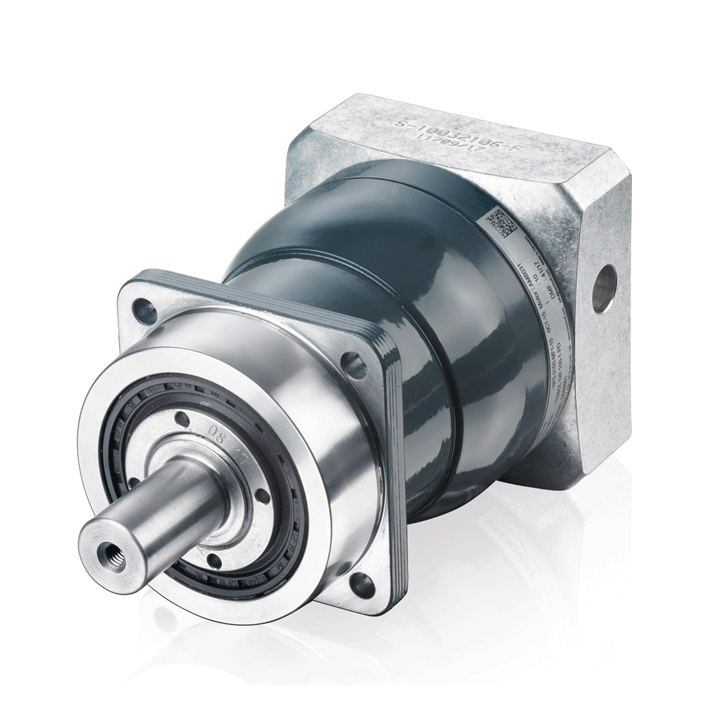

AG3300-+NPS045S | Economy planetary gear units, sizeВ 045
