LPD5010-683

General specification Core Material: Ferrite Weight: 60 – 70 mg Packaging: 1000/7 reel, 3500/13 reel Plastic tape: 12 mm wide, 0.3 mm thick, 8 mm pocket spacing, 1.02 mm pocket depth Winding to Winding Isolation: 100 Vrms, one minute Soldering/Washing Moisture Sensitivity Level (MSL): 1 (unlimited floor life at Resistance to soldering heat: Max three 40 second reflows at +260C, parts cooled to room temperature between cycles Refer to Soldering Coilcraft Components before soldering. Recommended Pick & Place Nozzle: OD: 5 mm, ID: &lt, 2.5 mm PCB Washing: Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.

225,00 ₽

Артикул: LPD5010-683MRC Категорий: 1 1 Shielded Coupled, Coupled Inductors, LPD5010, Power, Products, ЛПД, ЛПД5010-683

Описание

Specifications

Electrical specifications at 25C.

For Flyback Applications

Part number 1 (Hover for schematics)	Inductance (H) 2 (Tolerance: &plusmn,20%)	DCR max (Ω) 3	Isolation Voltage (V)	Leakage Inductance (nH) 5	Turns Ratio
Part number 1 (Hover for schematics)	Inductance (H) 2 (Tolerance: &plusmn,20%)	DCR max (Ω) 3	Isolation Voltage (V)	Leakage Inductance (nH) 5	Turns Ratio
LPD5010-683MR_	68	5.1	100	900	1 : 1

For SEPIC Applications

Part number 1 (Hover for schematics)	Inductance (H) 2 (Tolerance: &plusmn,20%)	DCR max (Ω) 3	SRF typ (MHz) 4	Coupling coefficient	Leakage Inductance (nH) 5	Isat (A) 6			Irms (A)
Part number 1 (Hover for schematics)	Inductance (H) 2 (Tolerance: &plusmn,20%)	DCR max (Ω) 3	SRF typ (MHz) 4	Coupling coefficient	Leakage Inductance (nH) 5	10% drop	20% drop	30% drop	both windings 7	one winding 8
LPD5010-683MR_	68	5.1	14.9	0.99	900	0.25	0.26	0.27	0.19	0.26

Каталог

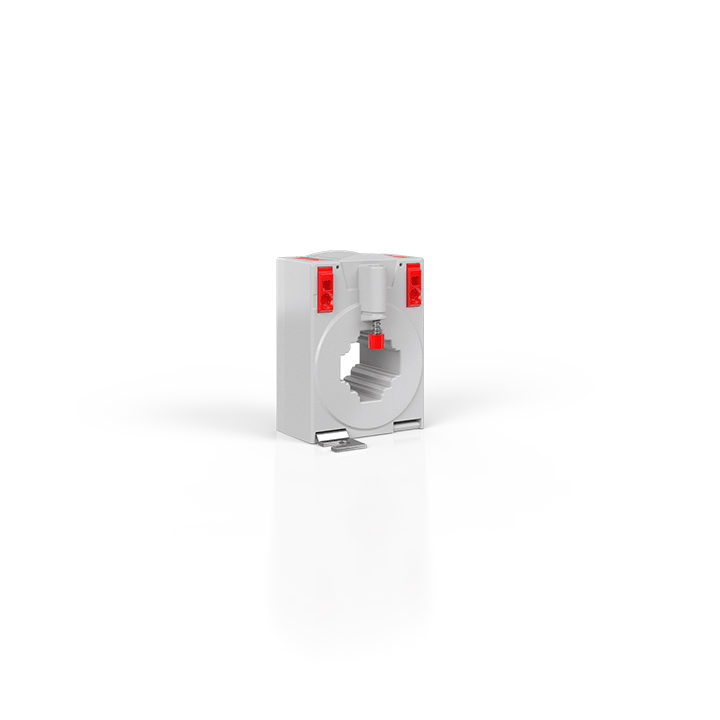

SCT2111-0060 | Ring-type CT, 60 A AC, accuracy classВ 1
