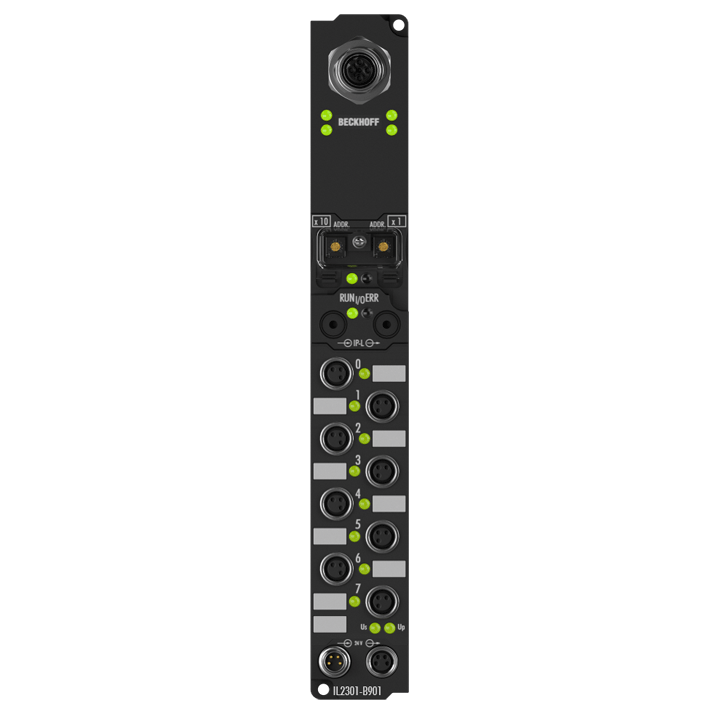

IL2301-B901 | Coupler Box, 4-channel digital input + 4-channel digital output, Ethernet, 24В VВ DC, 3В ms, 0.5В A, M8
01.01.2025
LPD5010-104
General specification Core Material: Ferrite Weight: 60 – 70 mg Packaging: 1000/7 reel, 3500/13 reel Plastic tape: 12 mm wide, 0.3 mm thick, 8 mm pocket spacing, 1.02 mm pocket depth Winding to Winding Isolation: 100 Vrms, one minute Soldering/Washing Moisture Sensitivity Level (MSL): 1 (unlimited floor life at Resistance to soldering heat: Max three 40 second reflows at +260C, parts cooled to room temperature between cycles Refer to Soldering Coilcraft Components before soldering. Recommended Pick & Place Nozzle: OD: 5 mm, ID: <, 2.5 mm PCB Washing: Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.
225,00 ₽
Specifications
Electrical specifications at 25C.
For Flyback Applications
| Part number 1 (Hover for schematics) | Inductance (H) 2 (Tolerance: ±,20%) | DCR max (Ω) 3 | Isolation Voltage (V) | Leakage Inductance (H) 5 | Turns Ratio |
|---|---|---|---|---|---|
| LPD5010-104MR_ | 100 | 8.0 | 100 | 1.4 | 1 : 1 |
For SEPIC Applications
| Part number 1 (Hover for schematics) | Inductance (H) 2 (Tolerance: ±,20%) | DCR max (Ω) 3 | SRF typ (MHz) 4 | Coupling coefficient | Leakage Inductance (H) 5 | Isat (A) 6 | Irms (A) | |||
|---|---|---|---|---|---|---|---|---|---|---|
| 10% drop | 20% drop | 30% drop | both windings 7 | one winding 8 | ||||||
| LPD5010-104MR_ | 100 | 8.0 | 11.2 | 0.99 | 1.4 | 0.21 | 0.22 | 0.22 | 0.15 | 0.21 |
