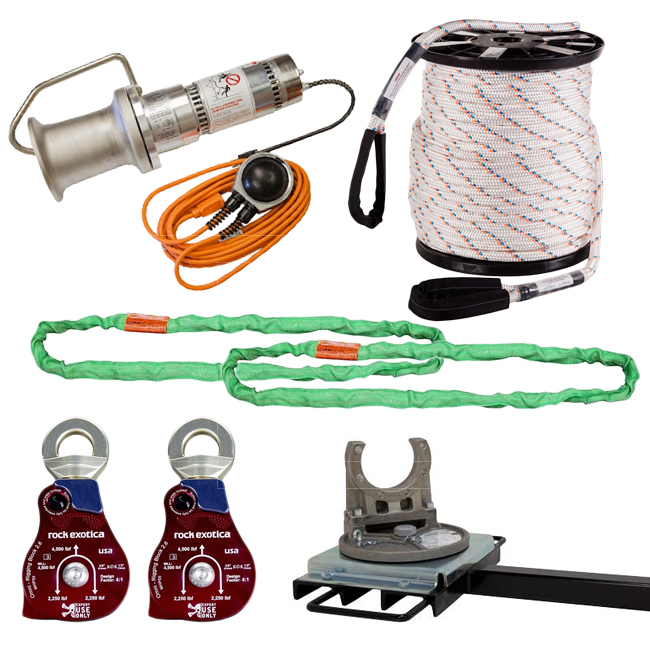

AB Chance Swivel Mount Capstan Hoist Truck Kit with Rock Exotica Blocks
01.01.2025
LPD4012-331
General specification Core Material: Ferrite Weight: 54 – 64 mg Packaging: 1000/7 reel, 3500/13 reel Plastic tape: 12 mm wide, 0.25 mm thick, 8 mm pocket spacing, 1.45 mm pocket depth Winding to Winding Isolation: 100 Vrms, one minute Soldering/Washing Moisture Sensitivity Level (MSL): 1 (unlimited floor life at Resistance to soldering heat: Max three 40 second reflows at +260C, parts cooled to room temperature between cycles Refer to Soldering Coilcraft Components before soldering. Recommended Pick & Place Nozzle: OD: 4 mm, ID: &le,2 mm PCB Washing: Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.
450,00 ₽
Specifications
Electrical specifications at 25C.
For Flyback Applications
| Part number 1 (Hover for schematics) | Inductance (nH) 2 (Tolerance: ±,30%) | DCR max (Ω) 3 | Isolation Voltage (V) | Leakage Inductance (nH) 5 | Turns Ratio |
|---|---|---|---|---|---|
| LPD4012-331NR_ | 330 | 0.042 | 100 | 60 | 1 : 1 |
For SEPIC Applications
| Part number 1 (Hover for schematics) | Inductance (nH) 2 (Tolerance: ±,30%) | DCR max (Ω) 3 | SRF typ (MHz) 4 | Coupling coefficient | Leakage Inductance (nH) 5 | Isat (A) 6 | Irms (A) | |||
|---|---|---|---|---|---|---|---|---|---|---|
| 10% drop | 20% drop | 30% drop | both windings 7 | one winding 8 | ||||||
| LPD4012-331NR_ | 330 | 0.042 | 255 | 0.94 | 60 | 5.2 | 5.4 | 5.6 | 1.9 | 2.7 |
