LPD4012-224

General specification Core Material: Ferrite Weight: 54 – 64 mg Packaging: 1000/7 reel, 3500/13 reel Plastic tape: 12 mm wide, 0.25 mm thick, 8 mm pocket spacing, 1.45 mm pocket depth Winding to Winding Isolation: 100 Vrms, one minute Soldering/Washing Moisture Sensitivity Level (MSL): 1 (unlimited floor life at Resistance to soldering heat: Max three 40 second reflows at +260C, parts cooled to room temperature between cycles Refer to Soldering Coilcraft Components before soldering. Recommended Pick & Place Nozzle: OD: 4 mm, ID: &le,2 mm PCB Washing: Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.

225,00 ₽

Артикул: LPD4012-224MRC Категорий: 1 1 Shielded Coupled, Coupled Inductors, LPD4012, LPD4012-224, Power, Products, ЛПД

Описание

Specifications

Electrical specifications at 25C.

For Flyback Applications

Part number 1 (Hover for schematics)	Inductance (H) 2 (Tolerance: &plusmn,20%)	DCR max (Ω) 3	Isolation Voltage (V)	Leakage Inductance (H) 5	Turns Ratio
Part number 1 (Hover for schematics)	Inductance (H) 2 (Tolerance: &plusmn,20%)	DCR max (Ω) 3	Isolation Voltage (V)	Leakage Inductance (H) 5	Turns Ratio
LPD4012-224MR_	220	11.2	100	1.7	1 : 1

For SEPIC Applications

Part number 1 (Hover for schematics)	Inductance (H) 2 (Tolerance: &plusmn,20%)	DCR max (Ω) 3	SRF typ (MHz) 4	Coupling coefficient	Leakage Inductance (H) 5	Isat (A) 6			Irms (A)
Part number 1 (Hover for schematics)	Inductance (H) 2 (Tolerance: &plusmn,20%)	DCR max (Ω) 3	SRF typ (MHz) 4	Coupling coefficient	Leakage Inductance (H) 5	10% drop	20% drop	30% drop	both windings 7	one winding 8
LPD4012-224MR_	220	11.2	3.3	&gt,0.99	1.7	0.15	0.16	0.17	0.12	0.17

Каталог

SER2915H-153

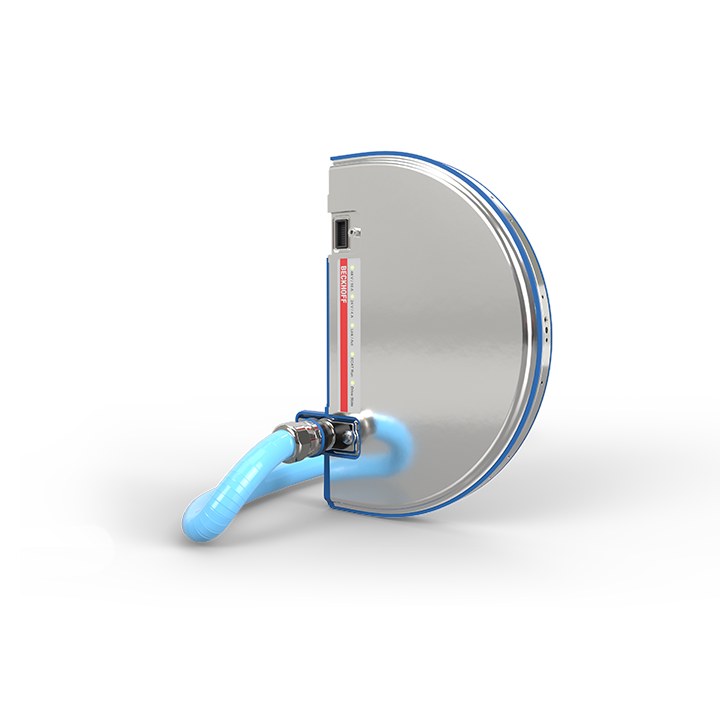

ATH2051 | Motor module, 180В° curved segment, with straight infeed
