JA4372-AL

General specification Core Material: Ferrite Weight: 12.0 g Packaging: 175 per 13 reel Plastic tape: 44 mm wide, 0.4 mm thick, 28 mm pocket spacing, 11.9 mm pocket depth Soldering/Washing Moisture Sensitivity Level (MSL): 1 (unlimited floor life at Resistance to soldering heat: Max three 40 second reflows at +260C, parts cooled to room temperature between cycles Refer to Soldering Coilcraft Components before soldering. PCB Washing: Tested with pure water or alcohol only. For other solvents, see Doc787_PCB_Washing.pdf

1125,00 ₽

Артикул: JA4372-ALD Категорий: JA4372, JA4372-AL, Power Converter Transformers, Power Transformers, Products, Transformers

Описание

Specifications

Electrical specifications at 25C.

Part number 2 (Hover for schematics)	Inductance at 0A (H) 3 (Tolerance: &plusmn,10%)	Inductance min at 2.2 A (H) 4	DCR max (Ω) 5				Leakage Inductance max (H) 6	Turns Ratio 7	Isolation Voltage (Vrms) 8
Part number 2 (Hover for schematics)	Inductance at 0A (H) 3 (Tolerance: &plusmn,10%)	Inductance min at 2.2 A (H) 4	Pri	Sec	Bias	Drive	Leakage Inductance max (H) 6	Pri : Sec : Bias : Drive	Isolation Voltage (Vrms) 8
JA4372-AL_	75.0	67.5	0.143	0.005	0.122	0.072	3.0	1 : 0.08 : 0.28 : 0.16	1500

Каталог

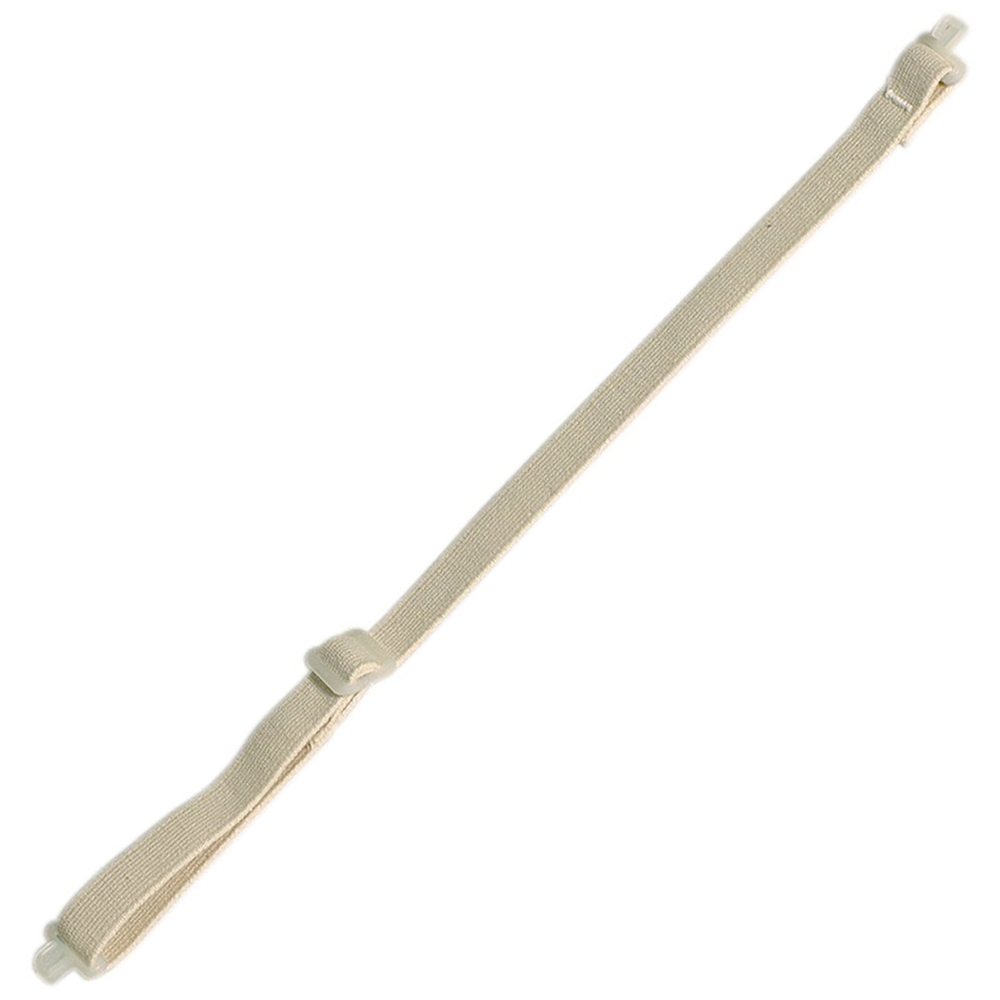

Bullard Chin Strap

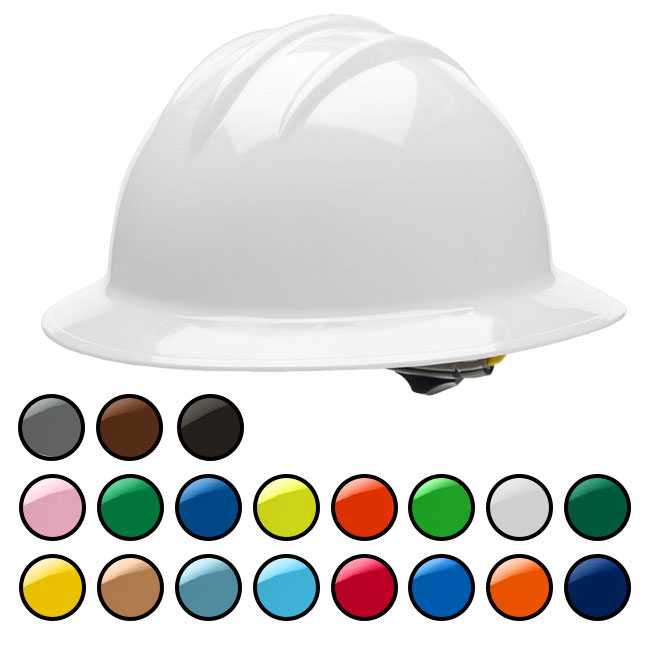

Bullard Classic Full Brim Hard Hat
