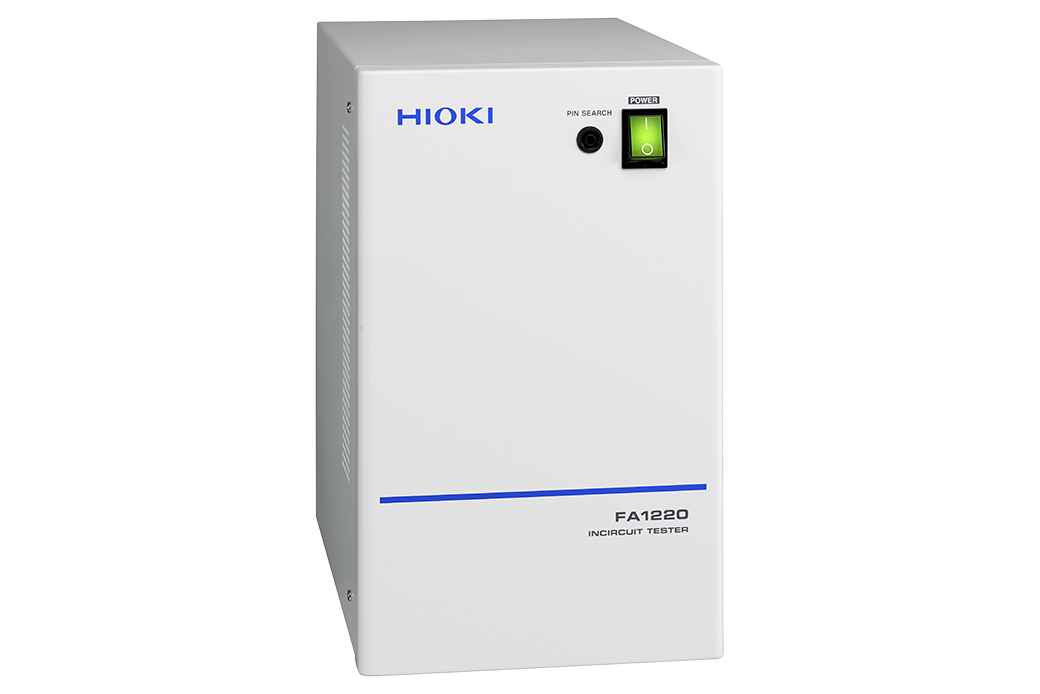

IN-CIRCUIT TESTER FA1220
02.01.2025
IN-CIRCUIT TESTER FA1220-11
Boost Productivity of Populated Circuit Board Testing with the Inline Automatic Testing System
0,00 ₽
FA1220-11 Specifications Overview
| Number of test points | Standard: 0 pins (scanner boards optional) Max. 2048 pins (expandable in blocks of 128 pins)* * The maximum number of active pins for each test type depends on the total number of scanner board pins installed in the product. | |||||
|---|---|---|---|---|---|---|
| Number of test steps | Group data: 256 groups Round-robin short/open data: 2048 pins* Macro data: 2048 pins/2048 steps (regardless of pin count)* Component data: 10000 steps Charge data: 40 groups Pin contact data: 2048 pins* IC data: 500 steps (max. 2048 pins/step)* * The maximum number of active pins for each test type depends on the total number of scanner board pins installed in the product. | |||||
| Measurement unit | DC voltmeter: 800 μV f.s. to 25 V f.s., 8 ranges DC ammeter: 100 nA f.s. to 250 mA f.s., 9 ranges AC ammeter: 10 μA rms to 10 mA rms, 4 ranges | |||||
| Scanner unit | Switch type: analog (E4201 and E4202), read relay (E4203) Number of channels: 128 per board Input protection: ±15 V / ±0.5 V (batch-configurable, E4201 and E4202), none (E4203) | |||||
| External I/O | Ethernet (LAN) 100Base-TX ×1 (please contact Hioki for communication with external devices.) USB 2.0 ×1 | |||||
| Control unit | – Measurement control Operating system: Real-time operating system Storage device: SD card (for booting system) – Main unit control | |||||
| Power supply | Rated supply voltage: 100 to 240 V AC, 50 Hz/60 Hz Maximum power consumption: 1 kW Maximum current consumption: 10 A | |||||
| Dimensions and mass | 780 mm (30.71 in.) W × 1760 mm (69.29 in.) H × 750 mm (29.53 in.) D, 390 kg (13756.6 oz.) | |||||
| Included accessories | Instruction Manual ×1, Test lead ×1, Application disc ×1, Positioning screws ×4, Maintenance key (for opening and closing the maintenance door) ×1, Set of transport motor accessories ×1, Before and after process communication connector set ×2 | |||||
