HTX7045-184AR

General specification Core Material: Ferrite Weight: 0.53 − 0.54 g Packaging: 350/7 reel, 1500/13 reel Plastic tape: 16 mm wide, 0.4 mm thick, 8 mm pocket spacing, 5.5 mm pocket depth Soldering/Washing Moisture Sensitivity Level (MSL): 1 (unlimited floor life at Resistance to soldering heat: Max three 40 second reflows at +260C, parts cooled to room temperature between cycles. Refer to Soldering Coilcraft Components before soldering. PCB Washing: Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.

675,00 ₽

Артикул: HTX7045-184ARC Категорий: HTX7045, HTX7045-184AR, Isolation, Power Transformers, Products, Transformers

Описание

Specifications

Electrical specifications at 25C.

Part number 1 (Hover for schematics)	Inductance at 0A (H) 2 (Tolerance: &plusmn,25%)	DCR max (Ω)		Leakage Inductance max (H) 3	Turns Ratio	Capacitance max (pF) 4	Volt-time product (V-s)	Isolation Voltage (Vrms) 5
Part number 1 (Hover for schematics)	Inductance at 0A (H) 2 (Tolerance: &plusmn,25%)	Pri	Sec	Leakage Inductance max (H) 3	Pri : Sec	Capacitance max (pF) 4	Volt-time product (V-s)	Isolation Voltage (Vrms) 5
HTX7045-184AR_	180	0.55	0.55	1.00	1 : 1	20	51.8	2800

Каталог

Empire Magnetic Digital Box Level

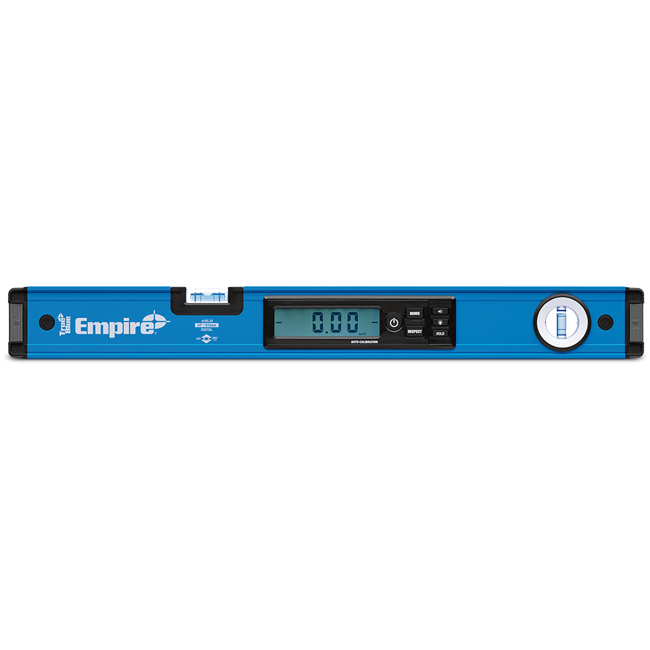

Empire Level 24 Inch Auto-Calibrated Digital Box Level with Case
