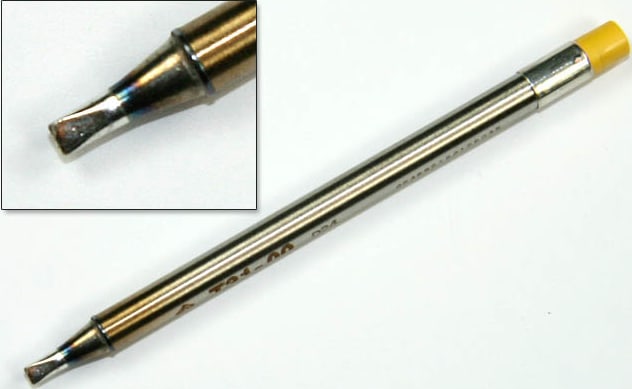

Hakko T31-00D16 Soldering Tip Chisel 1.6 x 10mm

Description Hakko T31-00D16 Tip Chisel 1.6 x 10mm IH,480 Degree C/895 Degree F

• Chisel
• 1.6 x 10mm
• IH
• 400 Degree C/750 Degree F
• For FX1001-51 Soldering Iron

This tip is used with the Hakko FX-100 Induction Heat Soldering System. The T31-03 series use a highly precise manufacturing process that allows for more repeatable tip temperature between not only the same tip shape but also between tips of different shapes within the same series.

Tip construction provides similar durability to that of the Hakko T15 Series tips, thus allowing you to experience Hakko’s renowned tip life. The new high-frequency induction heaters are precisely tuned and highly responsive with excellent power output.

This type has a shape like a cone or column cut at a slant, which allows users to select the cut surface size depending on the workpiece. It is used for drag soldering and pre-tinning of lead wires.

Difference Between BC/C Type and BCF/CF Type Shape BC Shape C Difference Shape This type has a shape like a cone cut at a slant.


This type has a like a column cut at a slant.

Heat capacity of tip In Shape BC with its conical shape, the nearer to the base, the thicker the
diameter. Therefore, although these types have the same diameter Φ1, Shape
BC has more heat capacity.

Commonality How to select tip size Please select the cut surface size depending on the workpiece. Others In case of a chip condenser, we recommend soldering it with Shape BC or C
to form ideal solder fillet, which can be hardly formed with Shape B or D.
BC/C shape BCF/CF shape Feature Tips are tinned at the certain area
of the tip end as following picture.
Tips are tinned at the surface only. Recommend use – For the heavy duty soldering. – Components are dense. If there is enough space between
each components.
Easy to be bridging.
