FCT1-195D3SL

General specification Core Material: Ferrite Weight: 10.1 – 10.7 g Packaging: 175 per 13 reel Plastic tape: 44 mm wide, 0.4 mm thick, 32 mm pocket spacing, 12.0 mm pocket depth Soldering/Washing Moisture Sensitivity Level (MSL): 1 (unlimited floor life at Resistance to soldering heat: Max three 40 second reflows at +260C, parts cooled to room temperature between cycles Refer to Soldering Coilcraft Components before soldering. PCB Washing: Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More Info.

1575,00 ₽

Артикул: FCT1-195D3SLD Категорий: FCT1-195D3SL, FCT1-xxD3SL, Power Converter Transformers, Power Transformers, Products, Transformers

Описание

Specifications

Electrical specifications at 25C.

Part number 1 (Hover for schematics)	Power (W)	Input Voltage (V)	Inductance min (H) 2	DCR max (mΩ) 3				Leakage Inductance max (H) 4	Turns Ratio 5	Frequency (kHz)	Isolation Voltage (Vrms) 6	Secondary Output (V, A)
Part number 1 (Hover for schematics)	Power (W)	Input Voltage (V)	Inductance min (H) 2	Pri	Sec	Sync	Bias	Leakage Inductance max (H) 4	Pri : Sec : Sync : Bias	Frequency (kHz)	Isolation Voltage (Vrms) 6	Secondary Output (V, A)
FCT1-195D3SL_	30	36 72	72.9	27.5	32.0	160.0	250.0	0.235	1 : 1.44 : 0.44 : 0.88	250	1500	19.5 V , 1.55 A

Каталог

MLC1770 Series

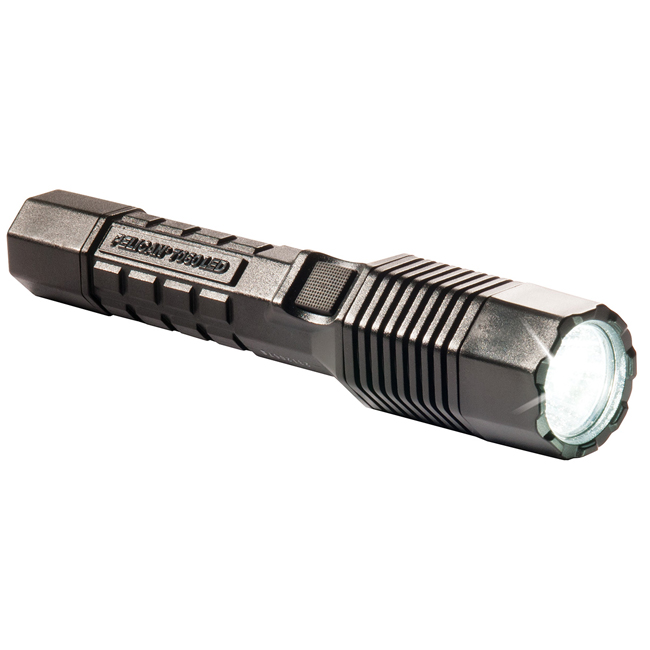

Pelican Tactical 7060 LED Rechargeable Flashlight
