DR0810-823

General specification Core Material: Ferrite Weight: 2.0 – 2.7 g Packaging: 300 parts per tray. 800 parts in fan-fold tape Soldering/Washing Moisture Sensitivity Level (MSL): 1 (unlimited floor life at Resistance to soldering heat: Three reflows at &gt,217C for 90 seconds (+260C &plusmn,5C for 20 40 seconds), allowing parts to cool to room temperature between. Refer to Soldering Coilcraft Components before soldering. PCB Washing: Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.

0,00 ₽

Артикул: DR0810-823L Категорий: DC DR, DR0810, DR0810-823, Power, Products, Radial lead, Unshielded Inductors

Описание

Specifications

Electrical specifications at 25C.

Part number	Inductance (H) 1 (Tolerance: &plusmn,10%)	DCR max (mΩ) 2	SRF typ (MHz) 3	Isat (A) 4			Irms (A) 5
Part number	Inductance (H) 1 (Tolerance: &plusmn,10%)	DCR max (mΩ) 2	SRF typ (MHz) 3	10% drop	20% drop	30% drop	20C rise	40C rise
DR0810-823L	82	200	7.0	1.7	2.0	2.2	1.4	2.2

Каталог

AG3210-+NP005S-MF2-70 | Economy planetary gear units, sizeВ 005

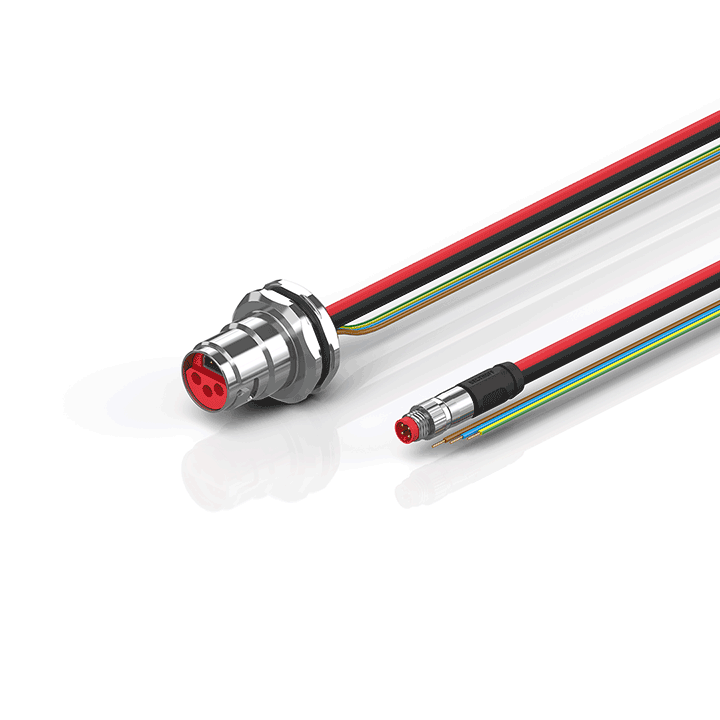

ZK7206-BP00-0xxx | B17, ECP cable, PUR, 3 G 1.5 mmВІ + (1 x 4 x AWG22), drag-chain suitable, key 1 (24В VВ DC)
