DR0608-824

General specification Core Material: Ferrite Weight: 1.0 – 1.3 g Packaging: 300 parts per tray. 1200 parts in fan-fold tape Soldering/Washing Moisture Sensitivity Level (MSL): 1 (unlimited floor life at Resistance to soldering heat: Three reflows at &gt,217C for 90 seconds (+260C &plusmn,5C for 20 40 seconds), allowing parts to cool to room temperature between. Refer to Soldering Coilcraft Components before soldering. PCB Washing: Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.

0,00 ₽

Артикул: DR0608-824L Категорий: DC DR, DR0608, DR0608-824, Power, Products, Radial lead, Unshielded Inductors

Описание

Specifications

Electrical specifications at 25C.

Part number	Inductance (H) 1 (Tolerance: &plusmn,10%)	DCR max (Ω) 2	SRF typ (MHz) 3	Isat (A) 4			Irms (A) 5
Part number	Inductance (H) 1 (Tolerance: &plusmn,10%)	DCR max (Ω) 2	SRF typ (MHz) 3	10% drop	20% drop	30% drop	20C rise	40C rise
DR0608-824L	820	2.7	2.1	0.40	0.45	0.48	0.34	0.48

Каталог

EL3061 | EtherCAT Terminal, 1-channel analog input, voltage, 0вЂ¦10В V, 12В bit, single-ended

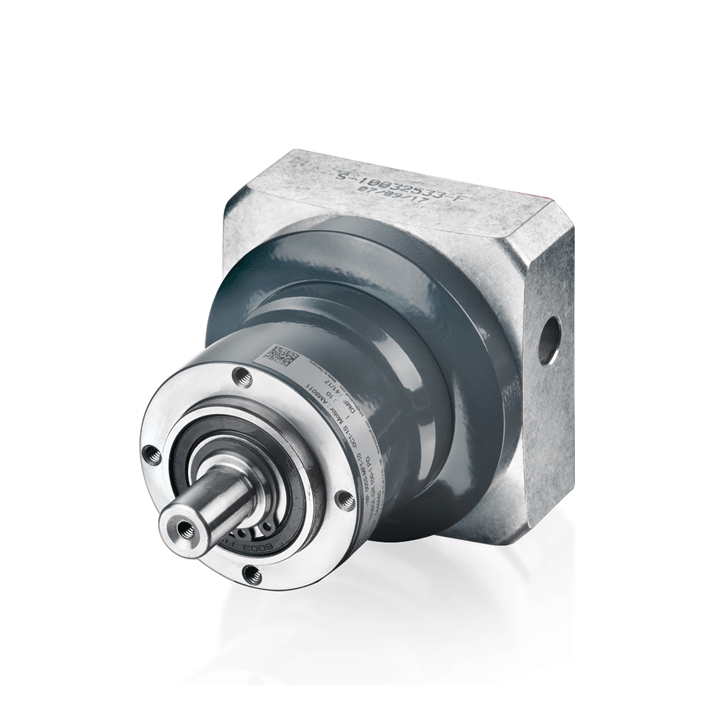

AG3210-+NP005S-MF2-35 | Economy planetary gear units, sizeВ 005
