DR0608-154

General specification Core Material: Ferrite Weight: 1.0 – 1.3 g Packaging: 300 parts per tray. 1200 parts in fan-fold tape Soldering/Washing Moisture Sensitivity Level (MSL): 1 (unlimited floor life at Resistance to soldering heat: Three reflows at &gt,217C for 90 seconds (+260C &plusmn,5C for 20 40 seconds), allowing parts to cool to room temperature between. Refer to Soldering Coilcraft Components before soldering. PCB Washing: Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.

0,00 ₽

Артикул: DR0608-154L Категорий: DC DR, DR0608, DR0608-154, Power, Products, Radial lead, Неэкранированные индукторы

Описание

Specifications

Electrical specifications at 25C.

Part number	Inductance (H) 1 (Tolerance: &plusmn,10%)	DCR max (mΩ) 2	SRF typ (MHz) 3	Isat (A) 4			Irms (A) 5
Part number	Inductance (H) 1 (Tolerance: &plusmn,10%)	DCR max (mΩ) 2	SRF typ (MHz) 3	10% drop	20% drop	30% drop	20C rise	40C rise
DR0608-154L	150	500	5.5	0.83	0.93	1.0	0.88	1.2

Каталог

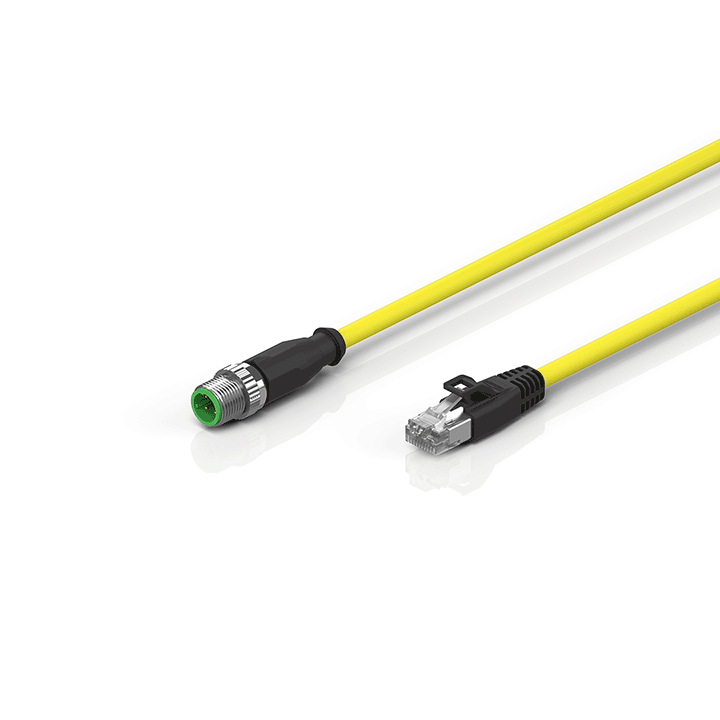

ZK1093-6191-0xxx | Кабель EtherCAT, PUR, AWG22, подходит для буксируемой цепи

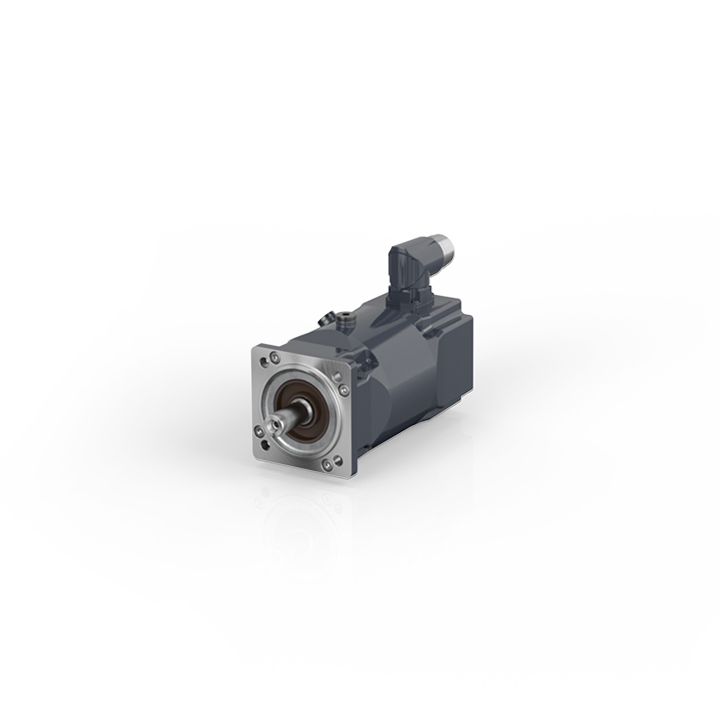

AM8333-wNyz | Servomotor with water cooling 7.53 Nm (M0), F3 (72В mm)
