DC1012-183

General specification Weight: 2.1 – 3.0 g Packaging: 100 parts per tray Soldering/Washing Resistance to soldering heat: Three reflows at &gt,217C for 90 seconds (+260C &plusmn,5C for 20 40 seconds), allowing parts to cool to room temperature between. Refer to Soldering Coilcraft Components before soldering. PCB Washing: Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.

0,00 ₽

Категорий: DC DR, DC1012, DC1012-183, Power, Products, Radial lead, Unshielded Inductors

Описание

Specifications

Electrical specifications at 25C.

Part number 1	Inductance (H) 2 (Tolerance: &plusmn,10%)	DCR max (mΩ) 3	SRF typ (MHz)	Isat (A) 4			Irms (A) 5
Part number 1	Inductance (H) 2 (Tolerance: &plusmn,10%)	DCR max (mΩ) 3	SRF typ (MHz)	10% drop	20% drop	30% drop	20C rise	40C rise
DC1012-183L	18	38.0	15.0	3.65	4.25	4.47	2.7	3.7

Каталог

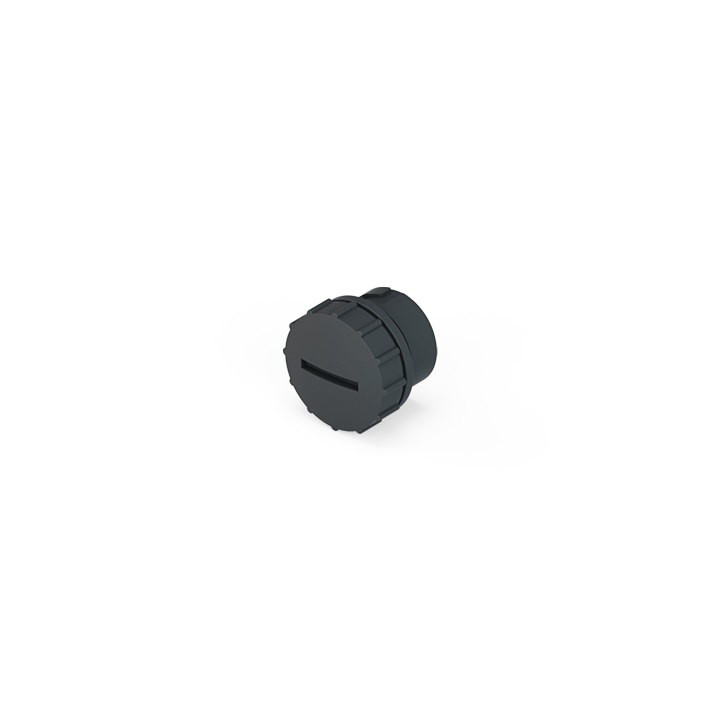

ZS7400-B003 | B40 protection cap, plug, plastic, IP67

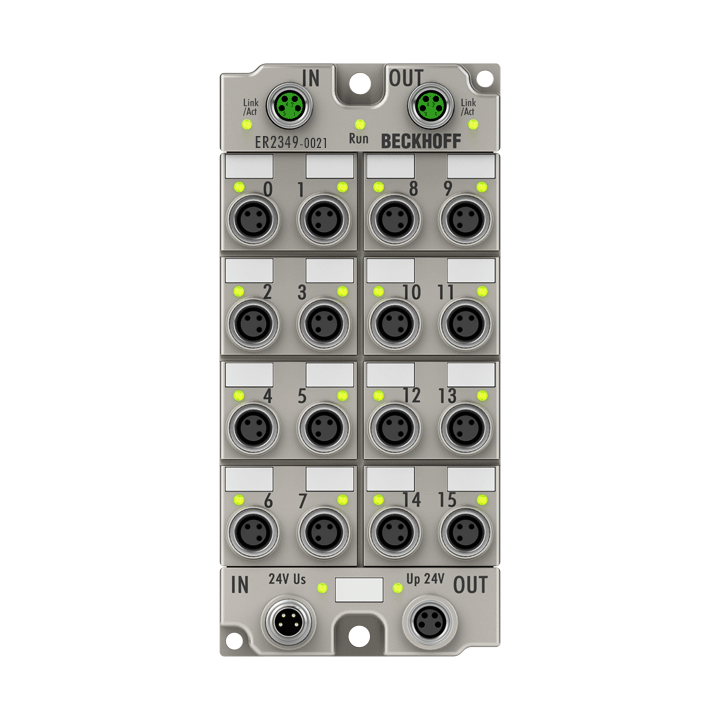

ER2349-0021 | EtherCAT Box, 16-channel digital combi, 24В VВ DC, 10В Вµs, 0.5В A, M8, zinc die-cast
