CX9628-AL

General specification Core Material: Ferrite Weight: 6.0 – 6.2 g Packaging: 175 per 13 reel Plastic tape: 32 mm wide, 0.6 mm thick, 28 mm pocket spacing, 12.93 mm pocket depth Soldering/Washing Moisture Sensitivity Level (MSL): 1 (unlimited floor life at Resistance to soldering heat: Max three 40 second reflows at +260C, parts cooled to room temperature between cycles Refer to Soldering Coilcraft Components before soldering. PCB Washing: Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More Info.

900,00 ₽

Артикул: CX9628-ALD Категорий: CX9628, CX9628-AL, Power Converter Transformers, Power Transformers, Products, Transformers

Описание

Specifications

Electrical specifications at 25C.

Part number 2 (Hover for schematics)	Inductance at 0A (H) 3 (Tolerance: &plusmn,10%)	Inductance min at 2 A (H)	DCR max (Ω) 4			Leakage Inductance max (H) 5	Turns Ratio 6	Isolation Voltage (Vrms) 7
Part number 2 (Hover for schematics)	Inductance at 0A (H) 3 (Tolerance: &plusmn,10%)	Inductance min at 2 A (H)	Pri	Sec	Aux	Leakage Inductance max (H) 5	Pri : Sec : Aux	Isolation Voltage (Vrms) 7
CX9628-AL_	43.7	39.3	0.095	0.009	0.094	1.0	1 : 0.2 : 0.25	1500

Каталог

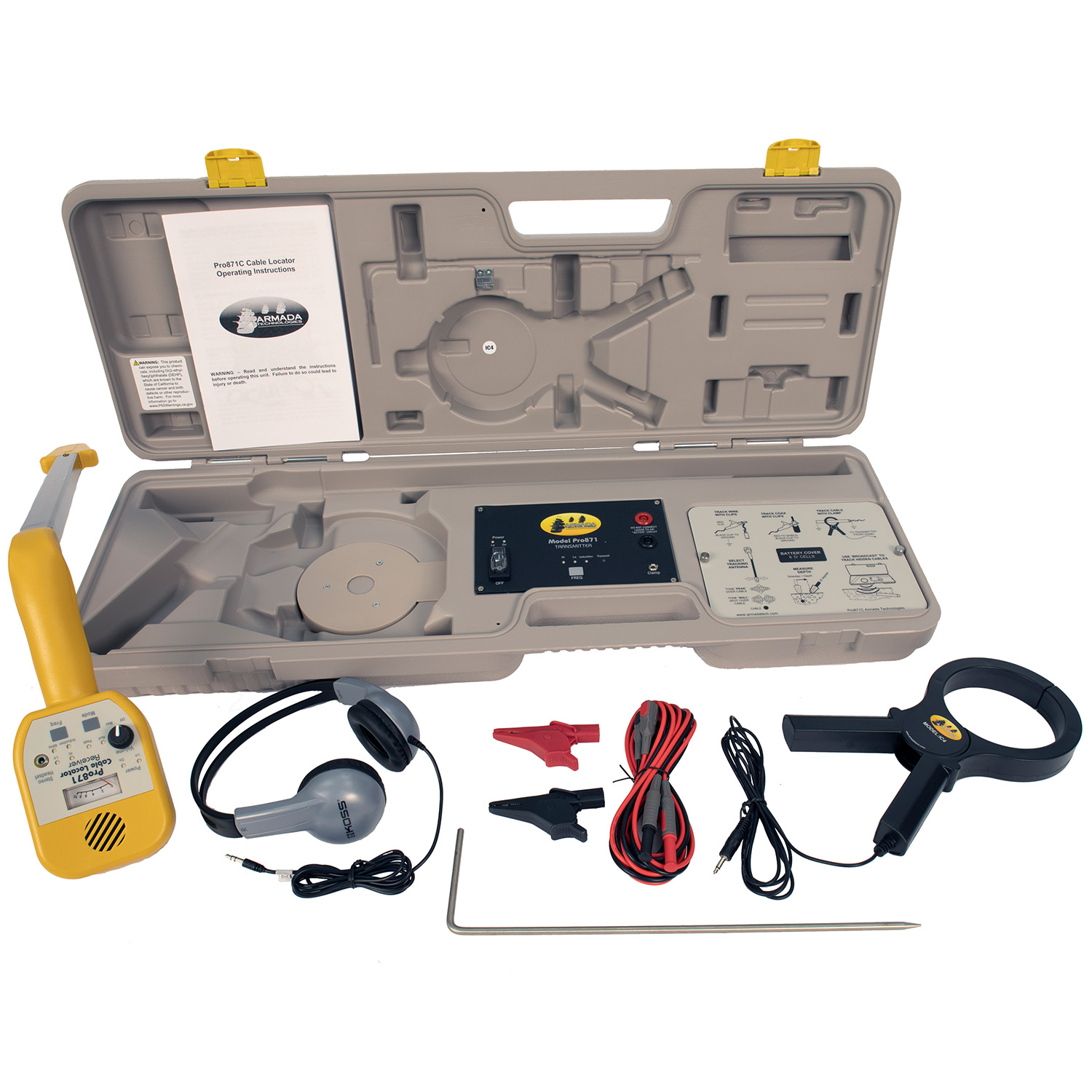

Armada Technologies Dual Frequency Cable Locator

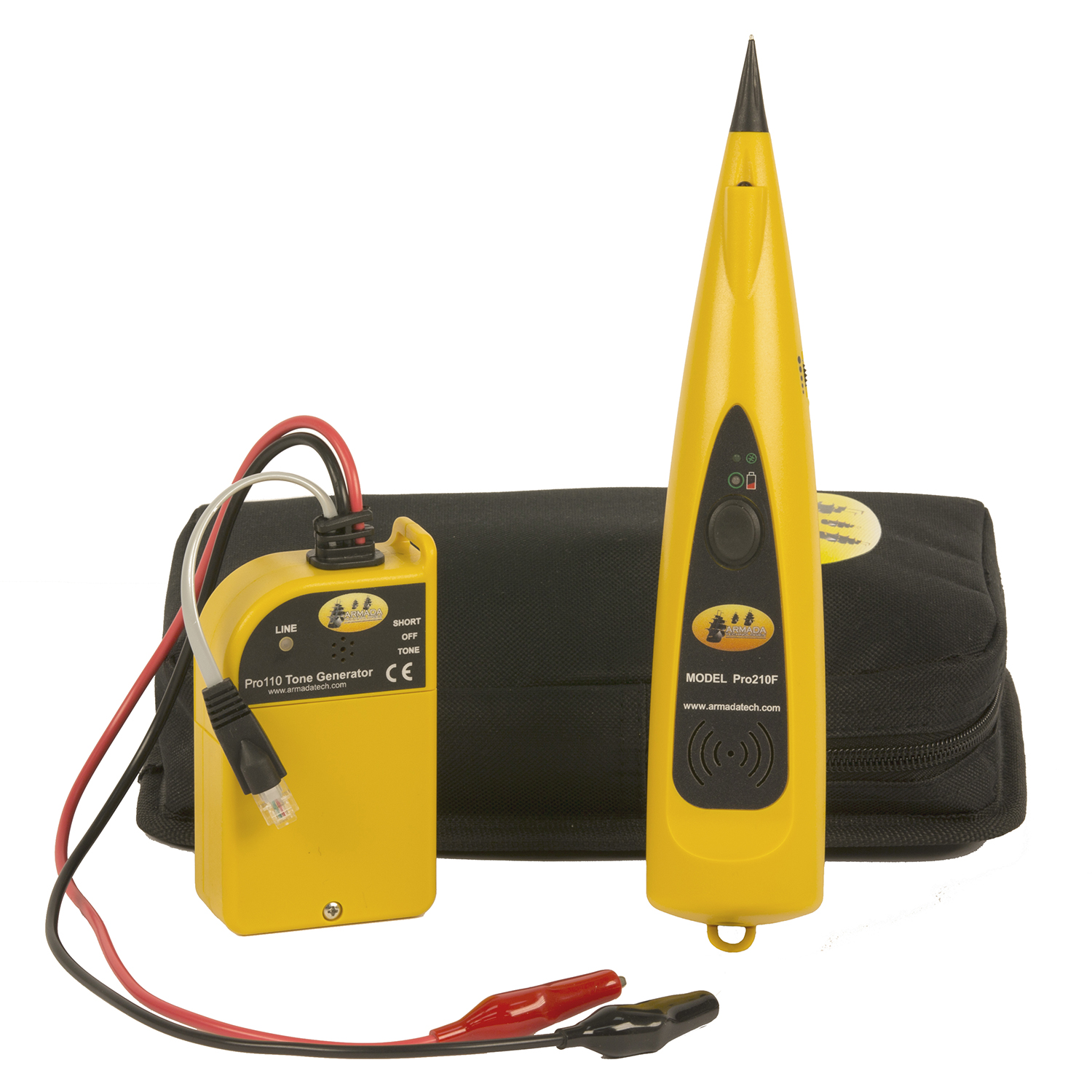

Armada Technologies Tone & Probe Kits
