CST4835-125E

General specification Core Material: Ferrite Weight: 115 – 122 mg Packaging: 500/7 reel, 2200/13 reel, Plastic tape: 12 mm wide, 0.35 mm thick, 8 mm pocket spacing, 3.6 mm pocket depth Soldering/Washing Moisture Sensitivity Level (MSL): 1 (unlimited floor life at Resistance to soldering heat: 38 per billion hours / 26,315,789 hours, calculated per Telcordia SR-332 Refer to Soldering Coilcraft Components before soldering. PCB Washing: Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More Info.

225,00 ₽

Артикул: CST4835-125EC Категорий: CST4835, CST4835-125E, Current Sensing, Power Transformers, Products, Transformers

Описание

Specifications

Electrical specifications at 25C.

Part number 1 (Hover for schematics)	Inductance min (H) 2	DCR max (Ω)		Turns Ratio	Volt-time product (V-s) 3	Frequency (kHz) 4	Current (A) 5	Terminating resistance R_T () 6	Isolation Voltage (Vrms) 7
Part number 1 (Hover for schematics)	Inductance min (H) 2	Pri	Sec	Pri : Sec	Volt-time product (V-s) 3	Frequency (kHz) 4	Current (A) 5	Terminating resistance R_T () 6	Isolation Voltage (Vrms) 7
CST4835-125E_	1280	0.0030	13.0	1 : 125	37.5	13 &gt,1000	7.0	17.9	500

Каталог

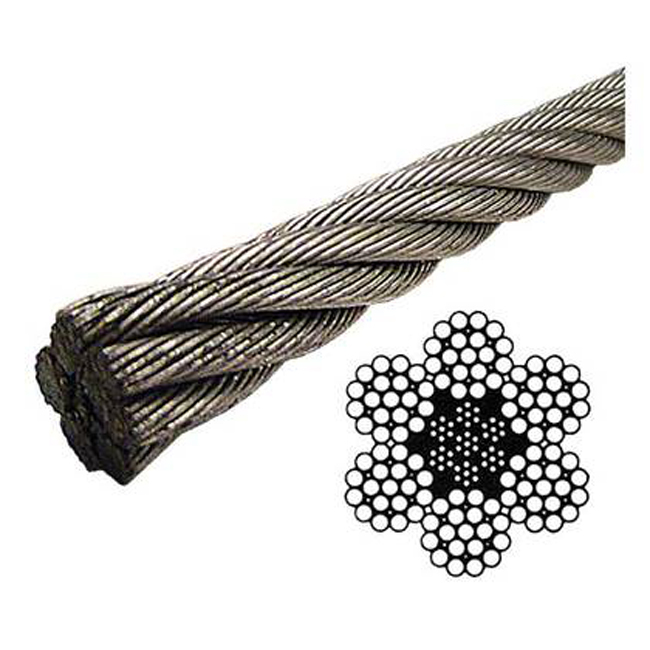

US Cargo Control 20 Foot 6X19 Galvanized IWRC Wire Rope Guy Stranded

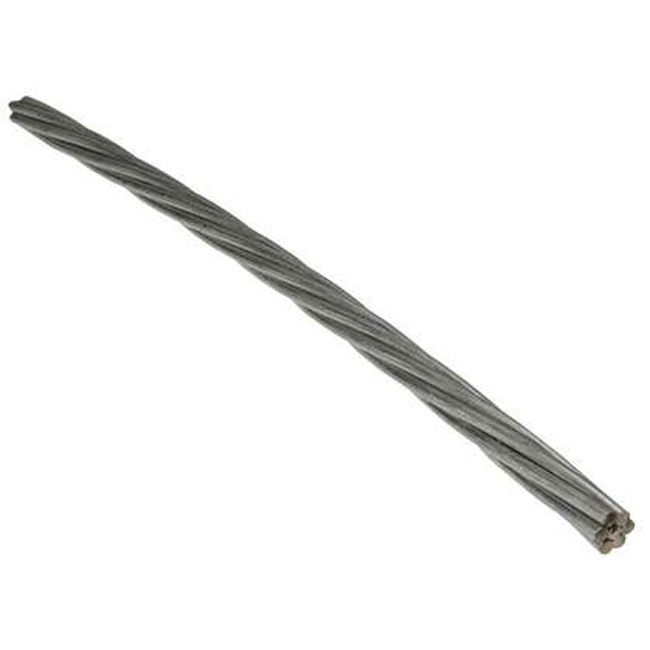

US Cargo Control 20 Foot 1X7 Galvanized EHS Wire Rope Guy Strand
