CST2010-040L

General specification Core Material: Ferrite Weight: 4.13 g Packaging: 300/13 reel, Plastic tape: 32 mm wide, 0.5 mm thick, 20 mm pocket spacing, 10.6 mm pocket depth Soldering/Washing Moisture Sensitivity Level (MSL): 1 (unlimited floor life at Resistance to soldering heat: Max three 40 second reflows at +260C, parts cooled to room temperature between cycles Refer to Soldering Coilcraft Components before soldering. PCB Washing: Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More Info.

450,00 ₽

Артикул: CST2010-040LD Категорий: CST2010, CST2010-040L, Current Sensing, Power Transformers, Products, Transformers

Описание

Specifications

Electrical specifications at 25C.

Part number 1 (Hover for schematics)	Inductance at 0A (mH) 2 (Tolerance: &plusmn,30%)	DCR max (Ω) 3		Turns Ratio	Volt-time product (V-s) 4	Frequency (kHz) 5	Current (A) 6	Terminating resistance R_T () 7	Isolation Voltage (Vrms) 8
Part number 1 (Hover for schematics)	Inductance at 0A (mH) 2 (Tolerance: &plusmn,30%)	Pri	Sec	Pri : Sec	Volt-time product (V-s) 4	Frequency (kHz) 5	Current (A) 6	Terminating resistance R_T () 7	Isolation Voltage (Vrms) 8
CST2010-040L_	1.36	0.00036	0.56	1 : 40	101.6	5 &gt,1000	47	1.0	1500

Каталог

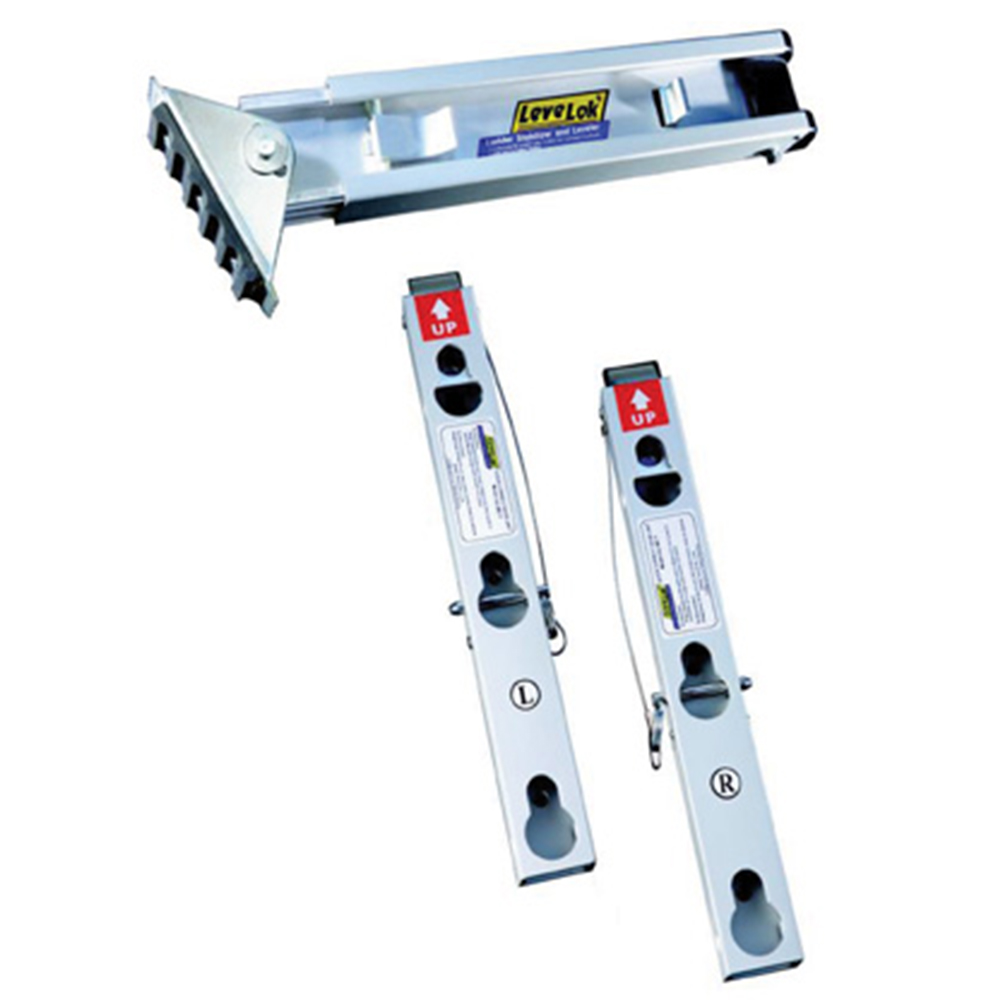

Levelok Ladder Leveler Stabilizer Complete Kit (KeyLok Quick Connect Style)

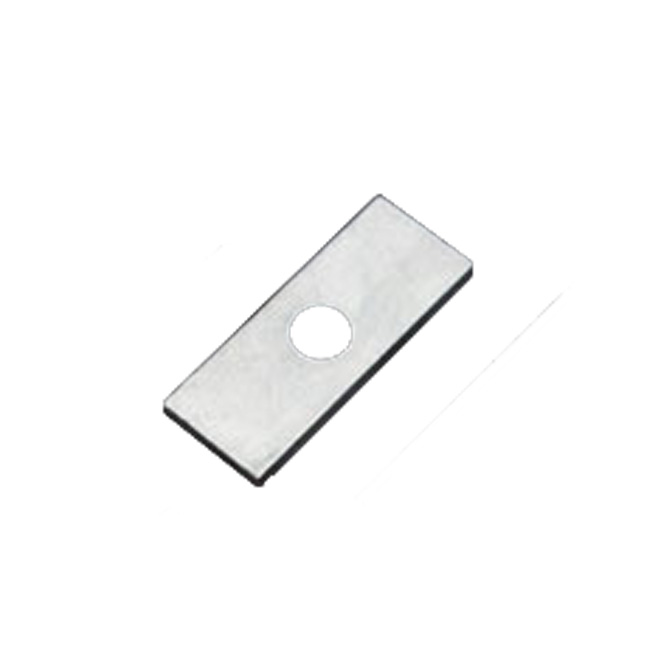

Levelok Aluminum Spacer Plates
