CS4200V-01L

General specification Weight: 8.8 – 9.3 g Packaging: 29 parts per tube Washing PCB Washing: Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.

1800,00 ₽

Категорий: CS4200V-01L, CS4xxxx, Current Sensing, Power Transformers, Products, Transformers

Описание

Specifications

Electrical specifications at 25C.

Part number (Hover for schematics)	Inductance min (mH) 1	DCR max (Ω) 2		Turns Ratio	Volt-time product (V-s) 3	Frequency (Hz)	Current (A)	Terminating resistance R_T () 4	Isolation Voltage (Vrms) 5
Part number (Hover for schematics)	Inductance min (mH) 1	Pri	Sec	Pri : Sec	Volt-time product (V-s) 3	Frequency (Hz)	Current (A)	Terminating resistance R_T () 4	Isolation Voltage (Vrms) 5
CS4200V-01L	80	0.0010	4.0	1 : 200	596	1000 1000000	35.0	5.7	3750

Каталог

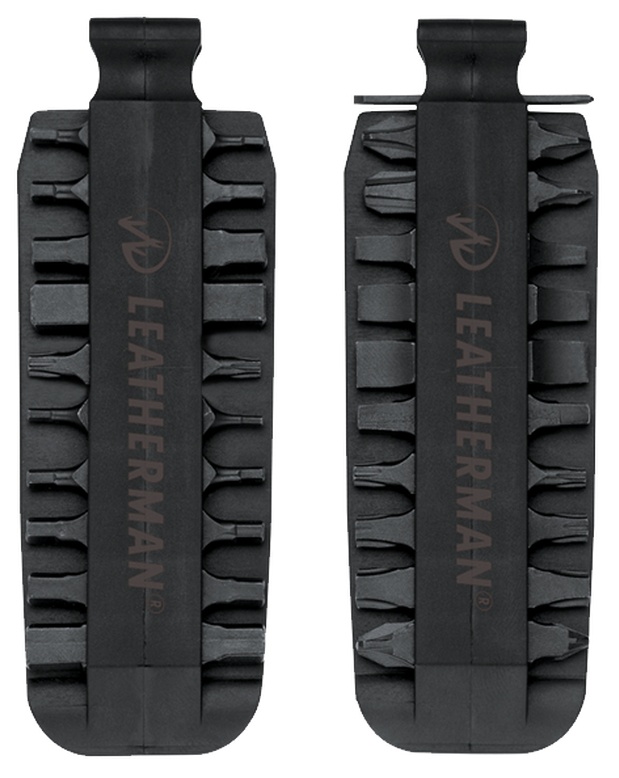

Leatherman Bit Kit

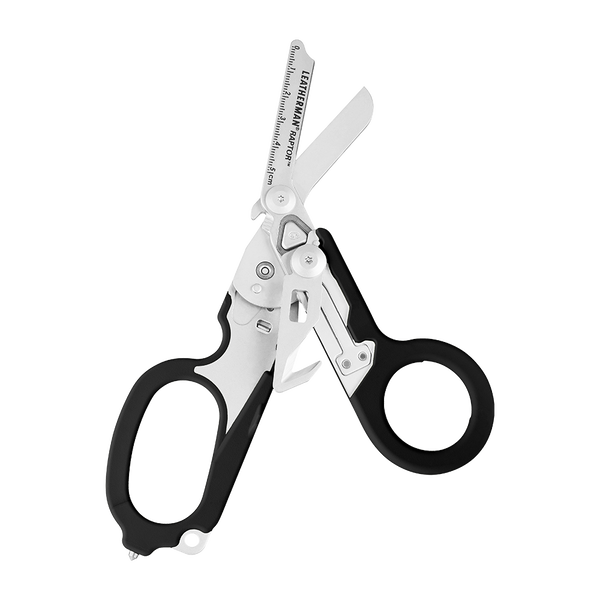

Leatherman Raptor Shears
