1812WBT1.5-4

General specification Core Material: Ferrite Weight: 131 – 152 mg Packaging: 600/7 reel, 2200/13 reel Plastic tape: 12 mm wide, 0.3 mm thick, 8 mm pocket spacing, 3.7 mm pocket depth Soldering/Washing Moisture Sensitivity Level (MSL): 1 (unlimited floor life at Resistance to soldering heat: Max three 40 second reflows at +260C, parts cooled to room temperature between cycles Refer to Soldering Coilcraft Components before soldering. PCB Washing: Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.

450,00 ₽

Артикул: 1812WBT1.5-4LC Категорий: 1812WBT, 1812WBT1-5-4, Products, Transformers, Широкополосные ВЧ-трансформаторы

Описание

Specifications

Electrical specifications at 25C. Measurements are referenced to 50 Ohms.

1.5:1 Transformers

Part number 1 (Hover for schematics)	L min per winding (nH) 2		Test frequency (MHz)	DCR max (mΩ) 3		Imp. ratio pri:sec	Current rating (mA)	Insertion loss (db)	Bandwidth (MHz)	Isolation Voltage (Vrms)	Color dot
Part number 1 (Hover for schematics)	Pri	Sec	Test frequency (MHz)	Pri	Sec	Imp. ratio pri:sec	Current rating (mA)	Insertion loss (db)	Bandwidth (MHz)	Isolation Voltage (Vrms)	Color dot
1812WBT1.5-4L_	144	90	10.0	180	140	1.5 : 1	700	&lt, 2.25	38 535	50	Green

Каталог

Tractel Pheonix 3-футовый амортизирующий шнур

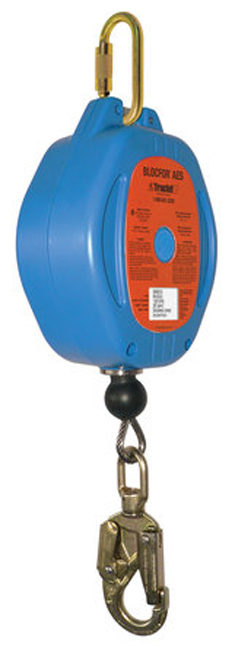

Tractel Blocfor Self-Retracting Lifeline
