1206USB-262

General specification Core Material: Ferrite Weight: 36.2 – 37.6 mg Soldering/Washing Moisture Sensitivity Level (MSL): 1 (unlimited floor life at Resistance to soldering heat: Max three 40 second reflows at +260C, parts cooled to room temperature between cycles Refer to Soldering Coilcraft Components before soldering. PCB Washing: Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.

0,00 ₽

Артикул: 1206USB-262MLC Категорий: 1206USB, 1206USB-262, Data Line Common Mode Choke, EMI, Products

Описание

Specifications

Electrical specifications at 25C.

Part number 1	Lines	Common mode peak impedance (kΩ)	Cutoff frequency (GHz) 2	Common mode attenuation typ (dB)			Inductance min (nH) 3	Irms (mA) 4	DCR max (Ω) 5	Isolation Voltage (Vrms) 6
Part number 1	Lines	Common mode peak impedance (kΩ)	Cutoff frequency (GHz) 2	10 MHz	100 MHz	500 MHz	Inductance min (nH) 3	Irms (mA) 4	DCR max (Ω) 5	Isolation Voltage (Vrms) 6
1206USB-262ML_	2	0.76 @ 1.1 GHz	2.0	6.1	15.3	21.0	161	600	0.22	250

Каталог

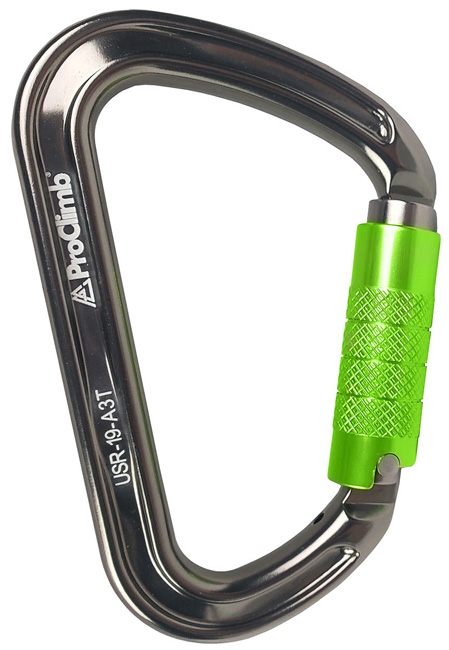

ProClimb Triple Lock I-Beamer Lite Big D Carabiner

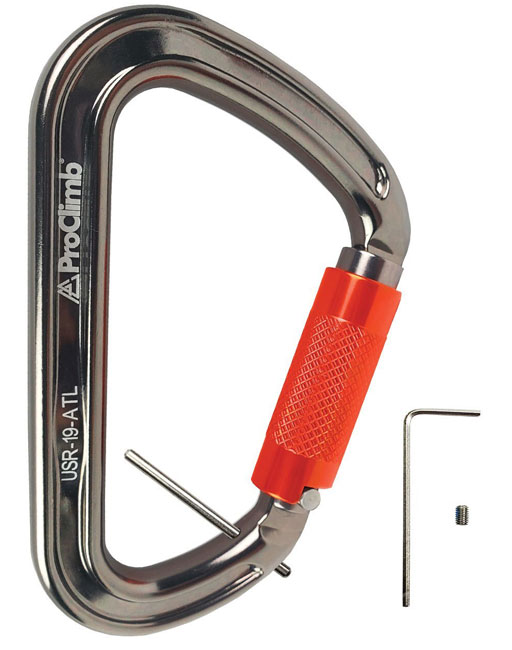

Комплект штифтов карабина I-Beamer
