Additional Features

• Measures magnetic field radiation from surface currents, slots, cables and ICs
• High level of electric field rejection
• Allows calibrated and repeatable measurements
• Maximum Input Power: 0.5 watts
• Temperature Range: Variation over 0 °C to +40 °C
• Dielectric Breakdown: ±1 kV, typical
• Connector Type: SMA, replaceable barrel
• VSWR: < 3:1
• Antenna Factor Accuracy: Individually calibrated to within ±2 dB in a 377 ohm field impedance

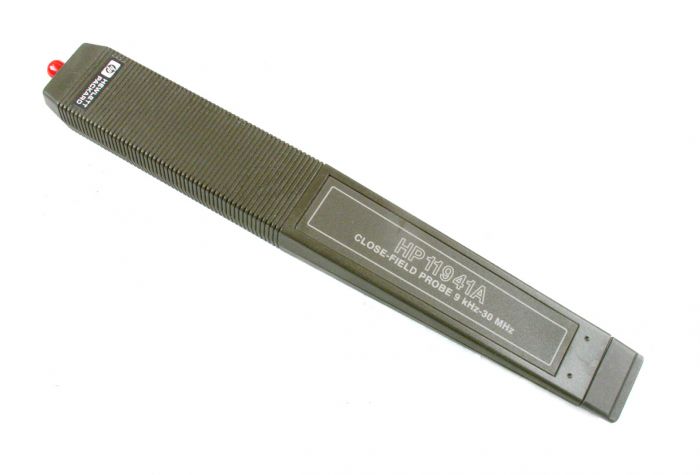

The Keysight Agilent HP 11941A is specially designed to measure magnetic field radiation from surface currents, slots, cable, and ICs for EMC diagnostic and troubleshooting measurements. The Keysight Agilent HP 11941A unique design results in a high level of electric field rejection. This significantly reduces errors allowing calibrated and repeatable measurements. Each probe is calibrated and comes with a two-meter, RG-223 coaxial cable, an SMA (f) to Type-N (m) adapter, and an SMA (f) to BNC (m) adapter.
