0805AF-472

General specification Core Material: Ferrite Weight: 16.7– 18.0 mg Soldering/Washing Moisture Sensitivity Level (MSL): 1 (unlimited floor life at Resistance to soldering heat: Max three 40 second reflows at +260C, parts cooled to room temperature between cycles Refer to Soldering Coilcraft Components before soldering. PCB Washing: Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.

225,00 ₽

Артикул: 0805AF-472XJRC Категорий: 0805AF-472, 0805АФ, EMI, Products, Wirewound Ferrite Beads

Описание

Specifications

Electrical specifications at 25C.

Part number 1	Inductance (H) 2 (Tolerance: &plusmn,5%)	Impedance typ (Ω)		SRF typ (MHz) 3	DCR max (Ω) 4	Irms (mA) 5	Color code 6
Part number 1	Inductance (H) 2 (Tolerance: &plusmn,5%)	100 MHz	900 MHz	SRF typ (MHz) 3	DCR max (Ω) 4	Irms (mA) 5	Color code 6
0805AF-472XJR_	4.7	1259	642	55.0	1.50	280	Black

Каталог

Jet Metal Dust Collector Stand – 115V

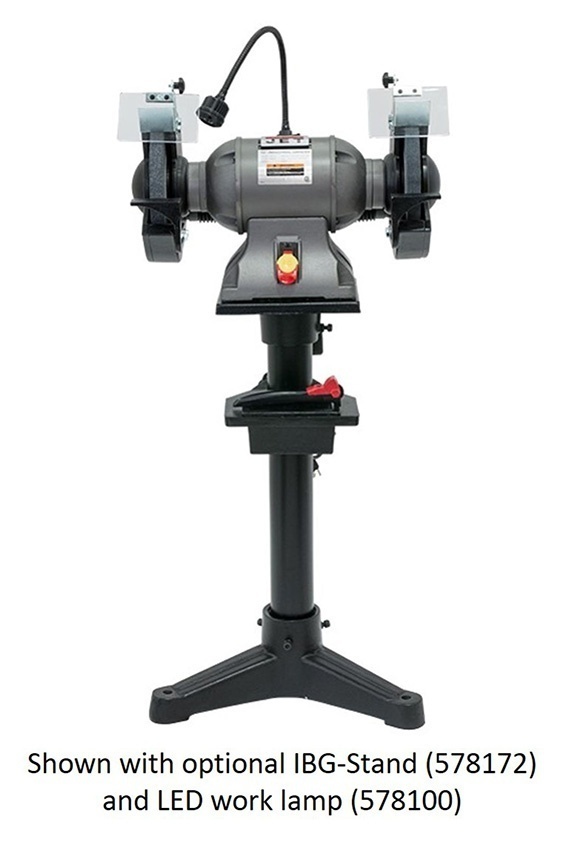

Jet 10 Inch Industrial Bench Grinder
