0603USB-142

General specification Core Material: Ferrite Weight: 4.9 – 5.2 mg Soldering/Washing Moisture Sensitivity Level (MSL): 1 (unlimited floor life at Resistance to soldering heat: Max three 40 second reflows at +260C, parts cooled to room temperature between cycles Refer to Soldering Coilcraft Components before soldering. PCB Washing: Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.

0,00 ₽

Артикул: 0603USB-142MLC Категорий: 0603USB, 0603USB-142, Data Line Common Mode Choke, EMI, Products

Описание

Specifications

Electrical specifications at 25C.

Part number 1	Lines	Common mode peak impedance (kΩ)	Cutoff frequency (MHz) 2	Common mode attenuation typ (dB)			Inductance min (nH) 3	Irms (mA) 4	DCR max (Ω) 5	Isolation Voltage (Vrms) 6
Part number 1	Lines	Common mode peak impedance (kΩ)	Cutoff frequency (MHz) 2	10 MHz	500 MHz	1 GHz	Inductance min (nH) 3	Irms (mA) 4	DCR max (Ω) 5	Isolation Voltage (Vrms) 6
0603USB-142ML_	2	0.42 @ 1.9 GHz	1900	6.85	12.80	18.16	98	500	0.174	250

Каталог

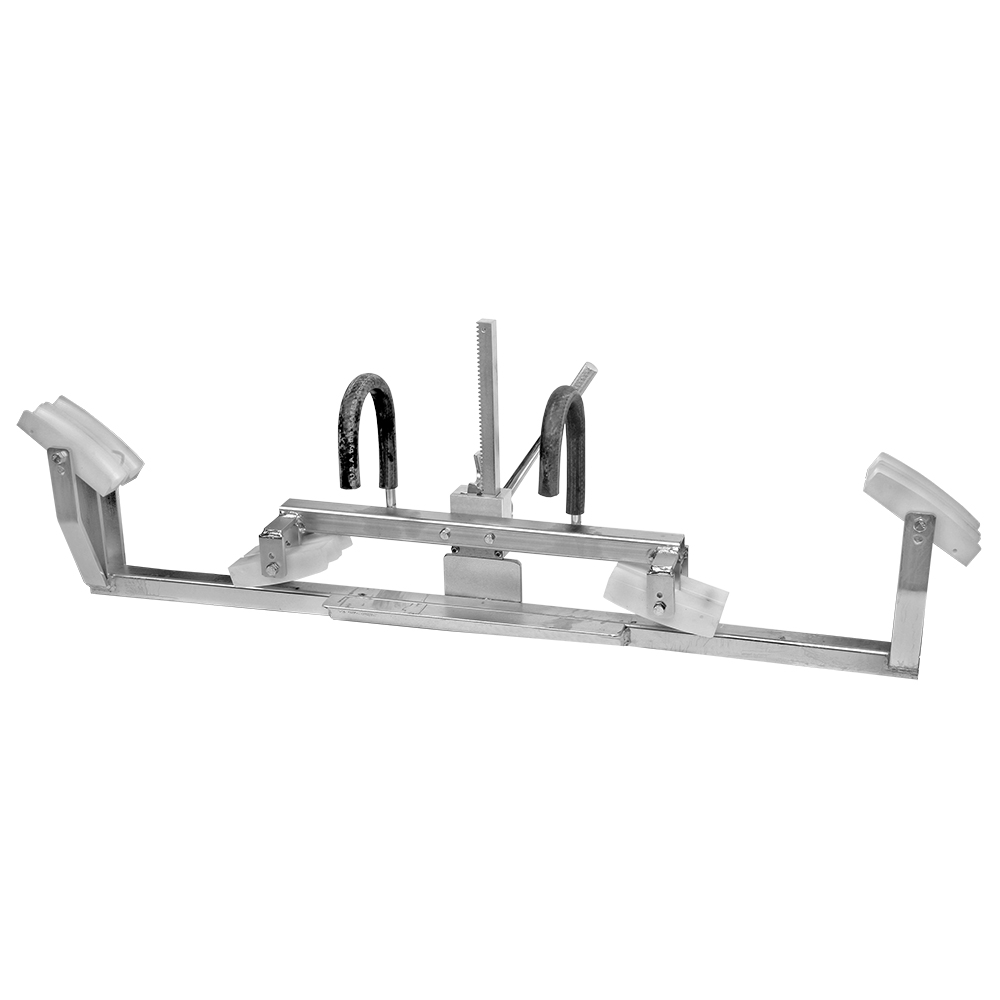

Lemco M-Series Loop Forming Tool
