0603LS-821

General specification Core Material: Ceramic/Ferrite Weight: 4.8 – 6.2 mg Soldering/Washing Moisture Sensitivity Level (MSL): 1 (unlimited floor life at Resistance to soldering heat: Max three 40 second reflows at +260C, parts cooled to room temperature between cycles Refer to Soldering Coilcraft Components before soldering. PCB Washing: Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.

225,00 ₽

Артикул: 0603LS-821XJRC Категорий: 0603LS-821, 0603ЛС, EMI, Products, Wirewound Ferrite Beads

Описание

Specifications

Electrical specifications at 25C.

Part number 1	Inductance (nH) 2 (Tolerance: &plusmn,5%)	Impedance typ (Ω)		SRF typ (MHz) 3	DCR max (Ω) 4	Irms (A) 5	Color code 6
Part number 1	Inductance (nH) 2 (Tolerance: &plusmn,5%)	100 MHz	900 MHz	SRF typ (MHz) 3	DCR max (Ω) 4	Irms (A) 5	Color code 6
0603LS-821XJR_	820	515.90	3815.00	410	0.69	0.40	Green

Каталог

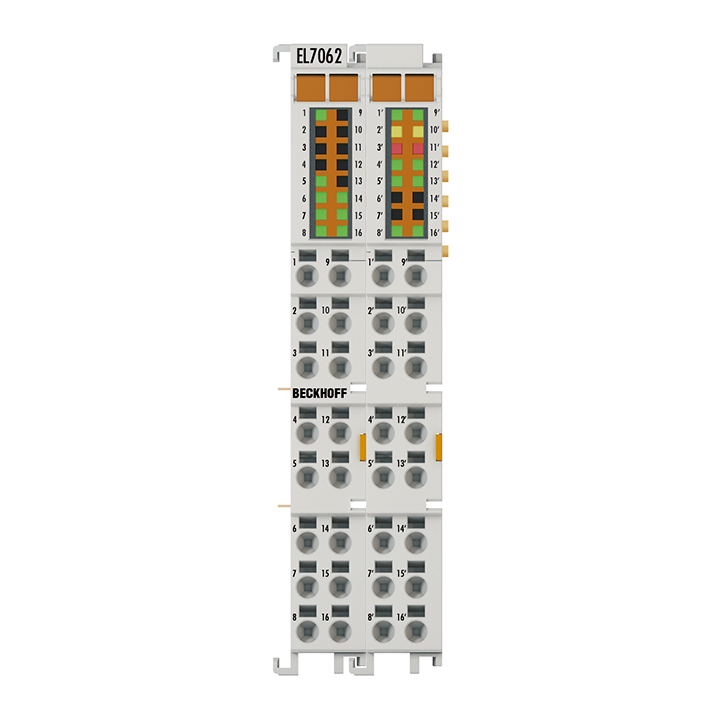

EL7062 | EtherCAT Terminal, 2-channel motion interface, stepper motor, 48В VВ DC, 3В A, with incremental encoder, 5В VВ DCPreferred type

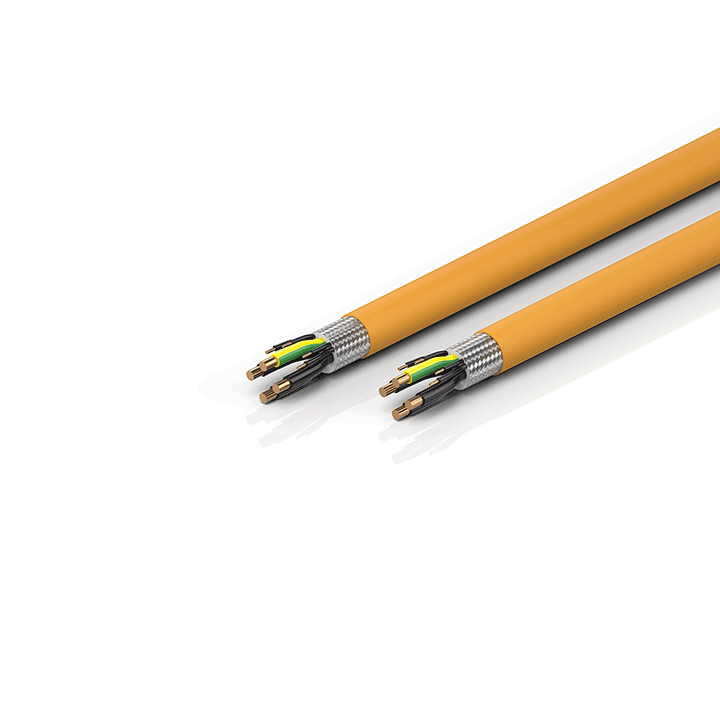

ZK4509-0016-0zzz | Motor connection cable 6В mmВІ not assembled, drag-chain suitable
