0603LS-782

General specification Core Material: Ceramic/Ferrite Weight: 4.8 – 6.2 mg Soldering/Washing Moisture Sensitivity Level (MSL): 1 (unlimited floor life at Resistance to soldering heat: Max three 40 second reflows at +260C, parts cooled to room temperature between cycles Refer to Soldering Coilcraft Components before soldering. PCB Washing: Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.

225,00 ₽

Артикул: 0603LS-782XJRC Категорий: 0603LS-782, 0603ЛС, EMI, Products, Wirewound Ferrite Beads

Описание

Specifications

Electrical specifications at 25C.

Part number 1	Inductance (nH) 2 (Tolerance: &plusmn,5%)	Impedance typ (Ω)		SRF typ (MHz) 3	DCR max (Ω) 4	Irms (A) 5	Color code 6
Part number 1	Inductance (nH) 2 (Tolerance: &plusmn,5%)	100 MHz	900 MHz	SRF typ (MHz) 3	DCR max (Ω) 4	Irms (A) 5	Color code 6
0603LS-782XJR_	7800	457.70	28.32	28.0	3.5	0.20	Blue

Каталог

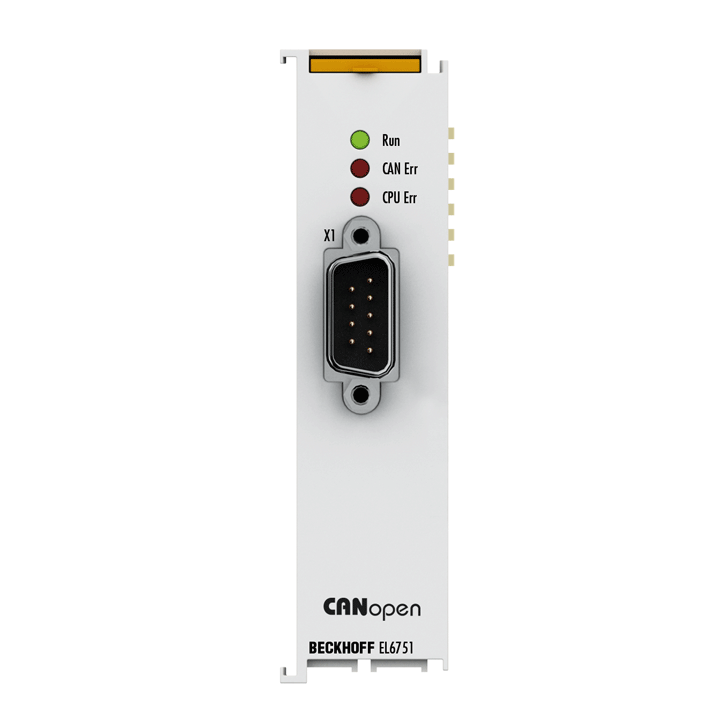

EL6751 | EtherCAT Terminal, 1-channel communication interface, CANopen, master/slave
