Motorized Stages

Custom Dover Motion Direct Drive Linear Servo XY Linear Stage with Renishaw Encoder As seen at: https://dovermotion.com/project/cell_imaging_xyz_stage/ X-Stage: -85mm W 90mm L 30mm H -50mm Travel -Crossed Roller Bearings -Custom Top SS Slide -Renishaw RGH24Y15A30B Encoder -Custom Dover Direct Drive Linear Servo Y-Stage: -85mm W 100mm L 30mm H -30mm Travel -Crossed Roller Bearings -Custom Al Bottom Mount Plate -Renishaw RGH24Y15A30B Encoder -Custom Dover Direct Drive Linear Servo

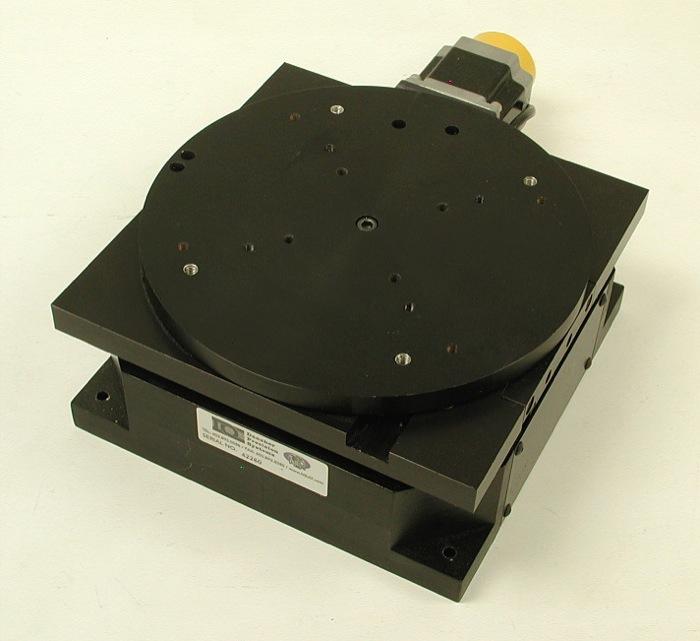

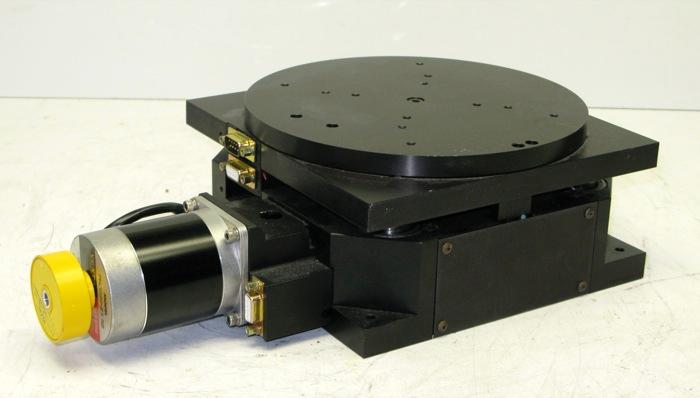

This table was first manufactured by N.E.A.T (New England Affiliated Technologies) which later merged with Dover Instruments. Recently, both companies are now represented by Danaher Precision Systems, making this stage of very recent manufacture. It features both small-angle theta rotation and Z-axis elevation. Z axis control is via a cam following a precision wedge. For this reason the stage must be used in a horizontal configuration.

This unit has a Vexta Stepping Motor PH268M-E1.5B (DC 5.4 V / 1.5 A). The motor has a clean damper D6CL-6.3 OYS. The plate is 8 inches in diameter and the platform is 4 inches high. It can be raised about 3/4 inches. The base is 8 inches by 8 inches and the motor sticks out 5.5 inches. ***MPN ***OEM Danaher Precision Systems ***SKU*** JS0458

Design Components DC-88 XY Stage Motorized. 10×12″ top ***MPN DC-88 ***OEM Design Components ***SKU*** 10408

Isel HL31HDMB0590 Linear Stage Length MM In 590 (23.2) Travel MM IN 322 (12.7) Motor Model: E242 P/N: 0242-02-008..

Klinger B89-42893-009 Motorized Translation Stage. ***MPN B89-42893-009 ***OEM Klinger Scientific ***SKU*** 46462

Klinger B90 49123 007 Motorized Rotation Stage, 3 inch – Optic diameter: 3 inch – Graduation: 1 degree – Continuous rotation – Manual rotation working. Motor not tested. – Notes: Some screw and cover missing – selling as parts..

Isel 235-540-4109 Linear Stage. Item-Spindel-Mutter 2111342115,213505

Marzhauser Wetzlar Motorized X,Y Stage details: – 100 mm x 100 mm travel – 12 Pin round connectors – Cables included – Includes insert (no specimen clamp) – Good cosmetic condition with minor scratches Note: This unit requires a control unit for operation which must be sourced separately. ***MPN ***OEM Marzhauser Wetzlar ***SKU*** 39624

NEAT XY Motorized Stage. 19″ x 19″ top surface with 13.75″ aperture 5″ overall height 12″ travel Cables and interface junction box. ***MPN ***OEM New England Affiliated Technologies, inc. ***SKU*** 30382

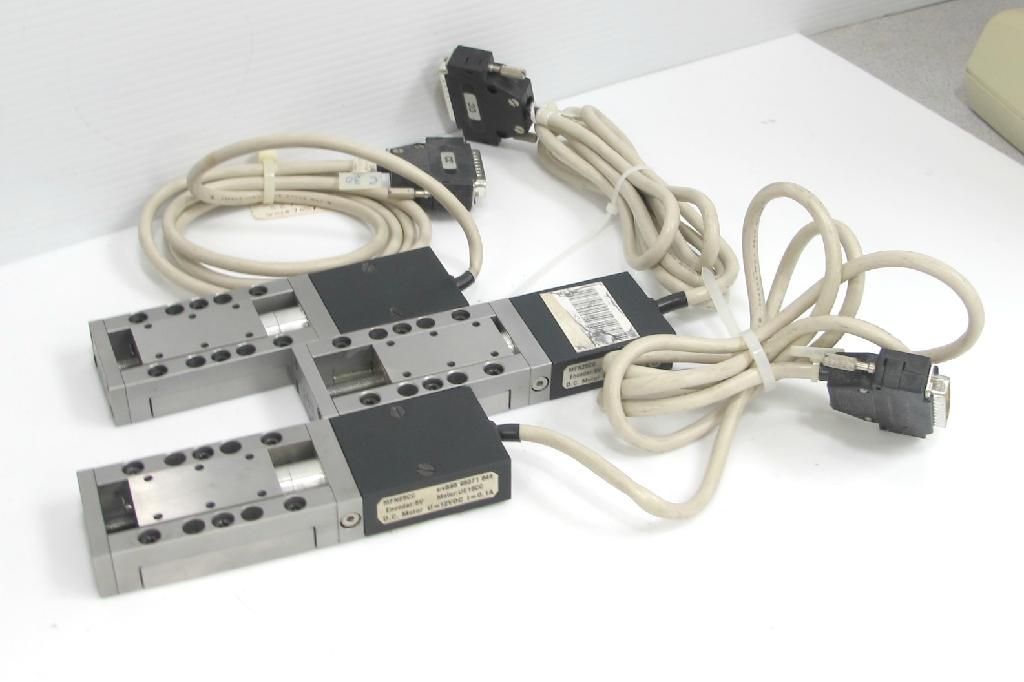

Newport MFN25CC Motorized Linear Stages, for parts – Lot of 3 non working stages – Motor: UE16CC – DC Motor: U=12VDC I=0.1A – One unit is missing top bearing

Newport PM40117 Motorized Linear Stage – 97/08/25, 97-382 – Travel: 4 inches – Maxon stepper motor 43.035.000-22.00-001 – Dsub connection with 14 pins – Crossed roller bearings – 7.5 x 3.5 inch platform – 1/4-20 tapped holes.

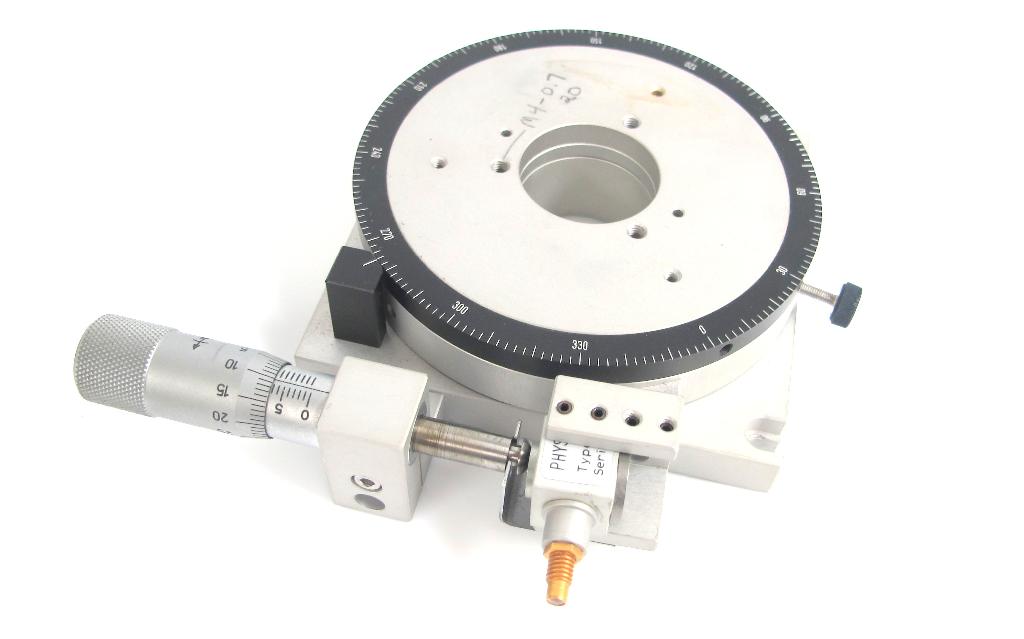

Physik Instrumente P-170 Piezo Rotary Stage M-035 – Physik Instrumente P-170 Piezo Translator – 5um – M-035 Rotary Stage ***MPN P-170 ***OEM Physik Instrumente (PI) ***SKU*** 51002

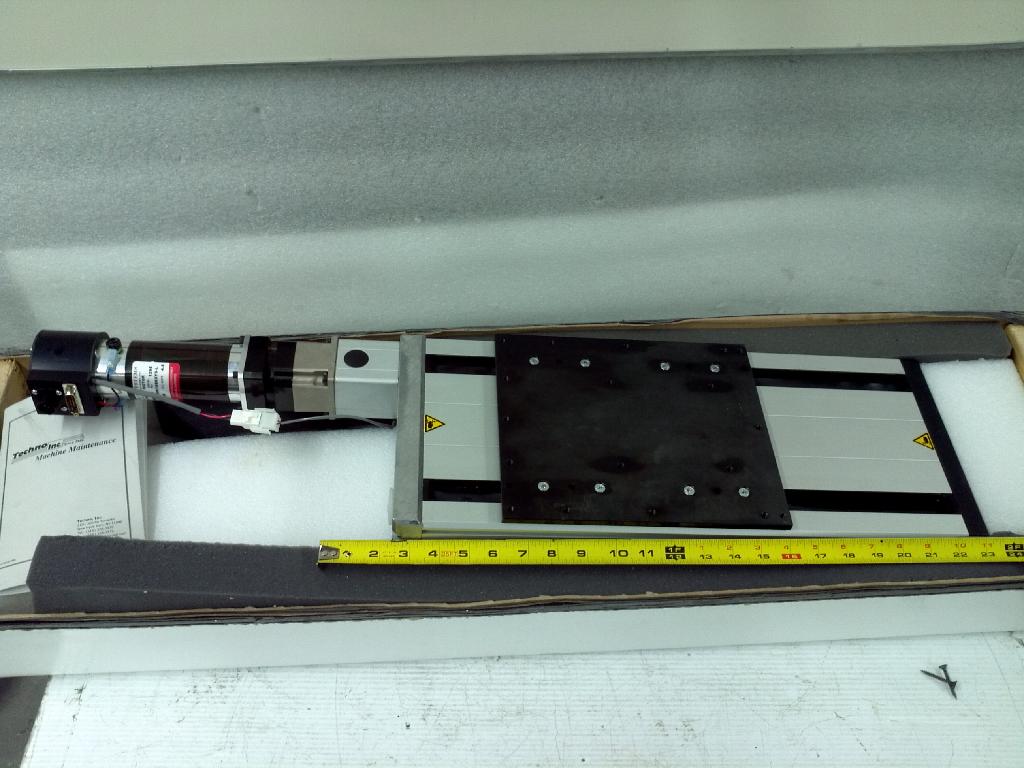

Techno Isel 234999 0008 Linear Stage. 255 x 220 mm platform Dynetic Systems DC Servo Motor 230233E Approx 200mm linear travel Used with item Techno Inc H26T56-SRV001 Single Axis Servo Controller. ***MPN 2349990008 ***OEM Techno Inc ***SKU*** 14064
