Microscope Parts

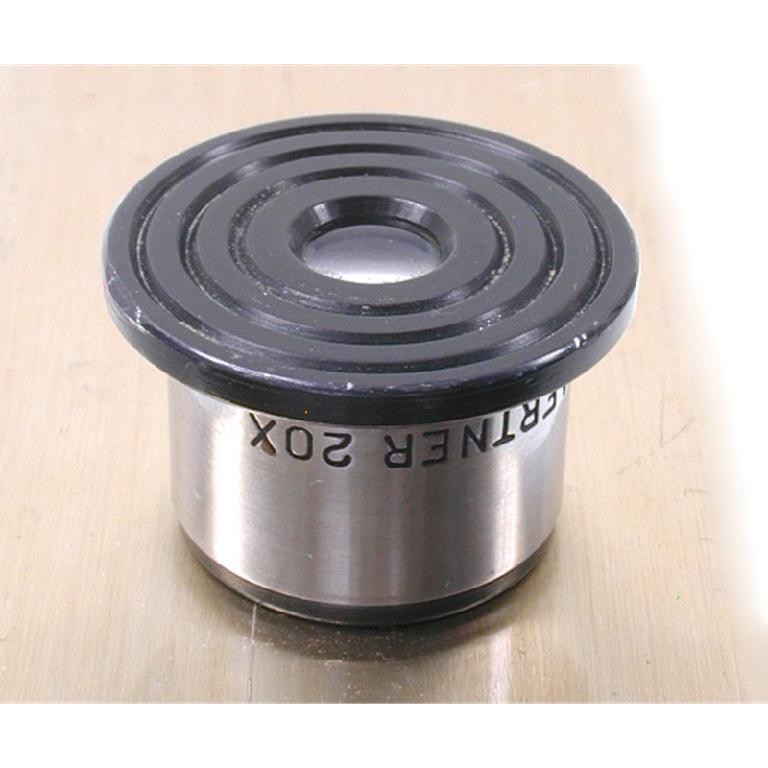

This is the highest magnification ocular available for the Gaertner modular measuring microscope line. Gaertner oculars are smaller in diameter than normal microscope eyepieces (49/64ths as opposed to 23.2mm). The part number is M239, and it has the following characteristics.

American Optical 365 Transformer with Illuminator. ***MPN 365 ***OEM American Optical (AO) ***SKU*** 62031

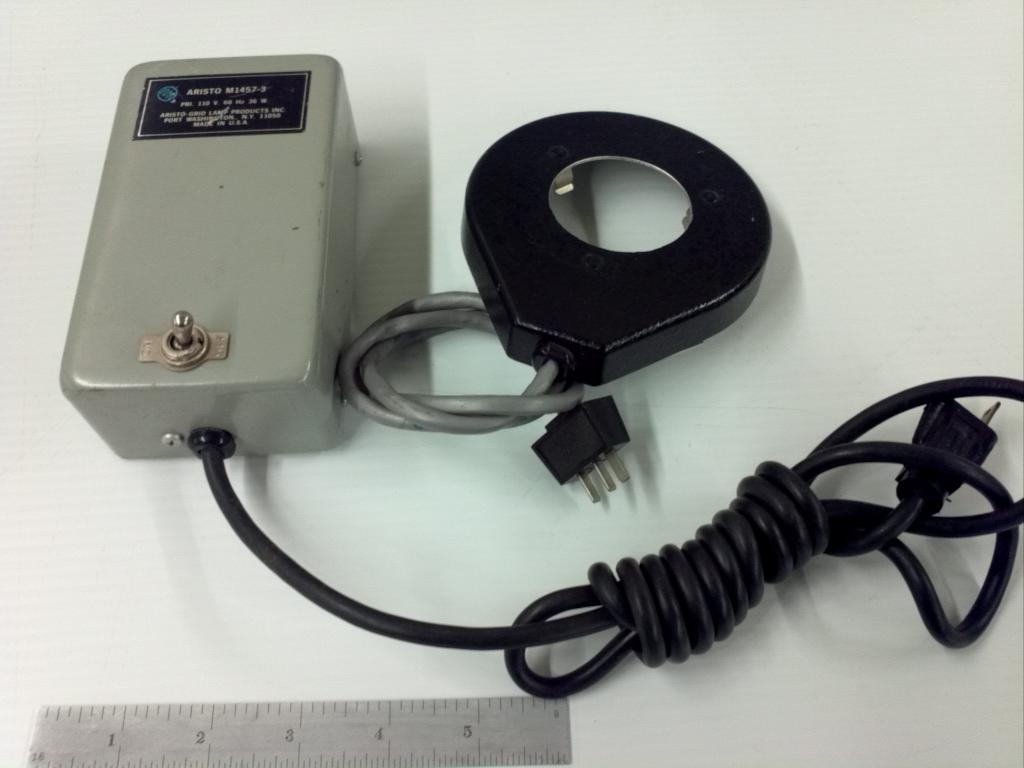

This is a Aristo M1457-3 Ring Illuminator (No Lamp). – This unit has been tested and is working.

Bausch & Lomb 20x WF Eyepiece – 20x magnification – Wide Field – Standard diameter: 23.2 mm.

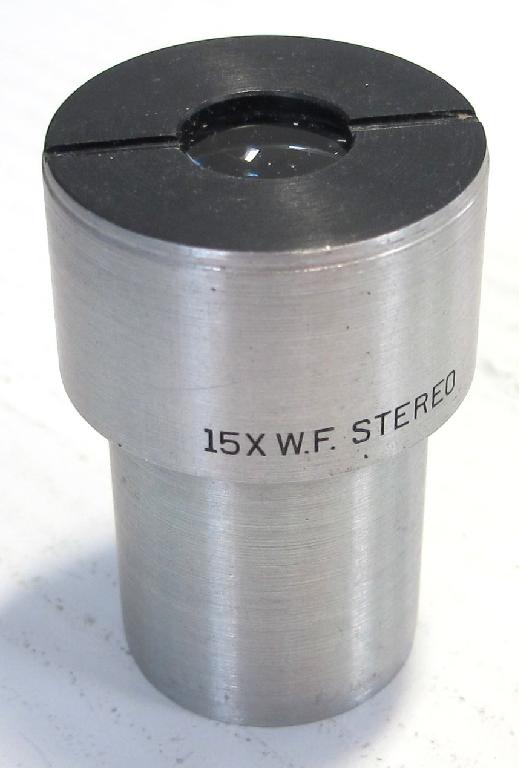

Bausch and Lomb 15x WF Stereo Microscope Eyepiece – 15x magnification – Wide-field – High-eyepoint – Standard diameter (23.2mm).

Дополнительная информация Вес 5 фунтов Размеры 6 × 6 × 6 дюймов

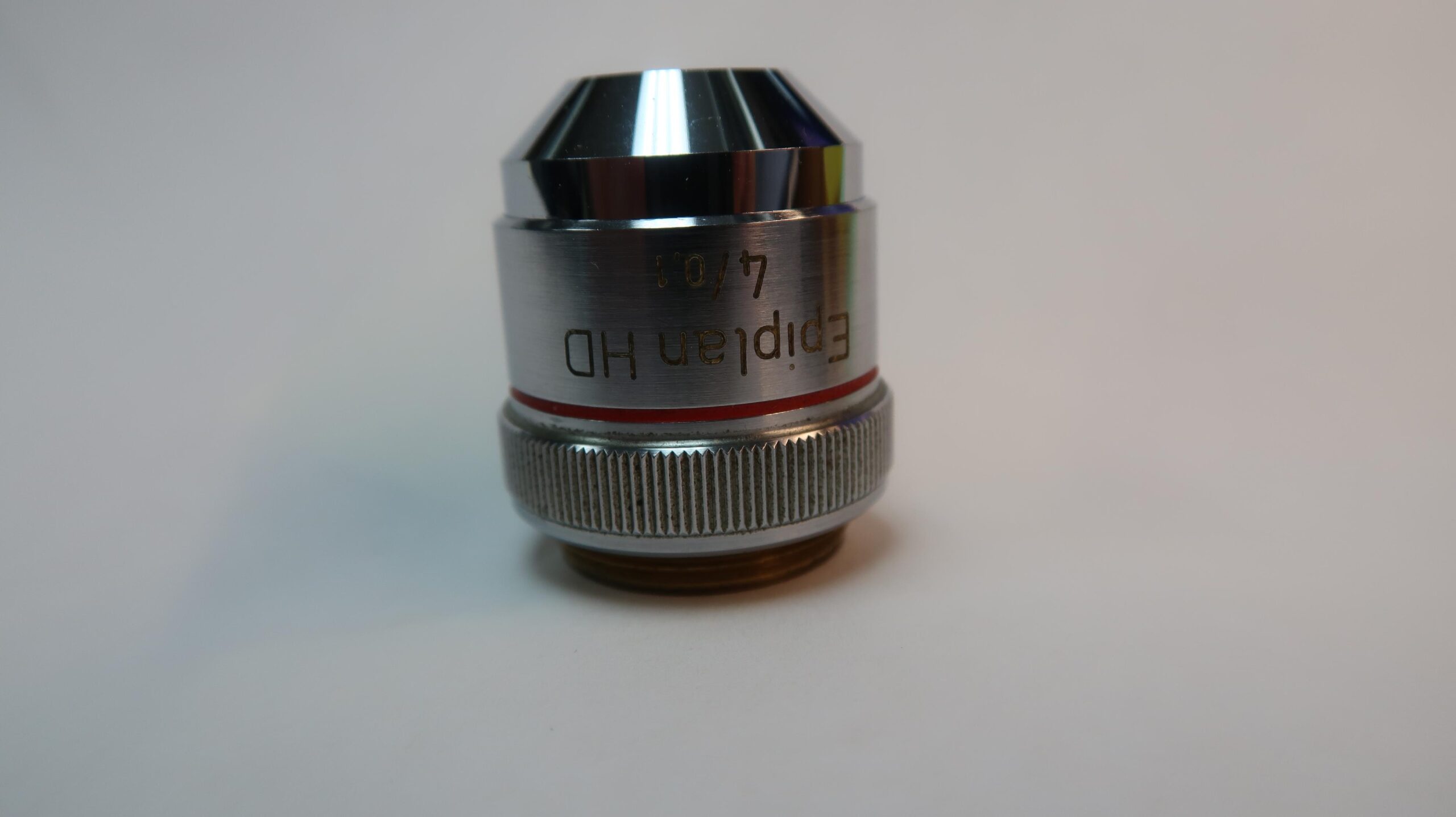

Carl Zeiss EpiPlan HD 4X Microscope Objective Microscope technician rated overall good, some minor scuffs ***MPN ***OEM Zeiss ***SKU*** 61307

This unit is a Dolan-Jenner BFX672 Fiber-Lite Single Line Light. ***MPN BFX672 ***OEM Dolan-Jenner ***SKU*** 672

Edmund Optics 54-628 C-Mount Extension Tube

This is a specialized objective that is intended for the small Zeiss semiconductor comparison microscope. The objective thread is much smaller than the normal RMS thread (13.5mm diameter with a 0.35mm thread pitch). This objective also has an extension tube that is 34mm long. There are no optics in the extension tube.

EPOI XY Microscope Stage. 80mm aperture ***MPN ***OEM EPOi ***SKU*** 14039

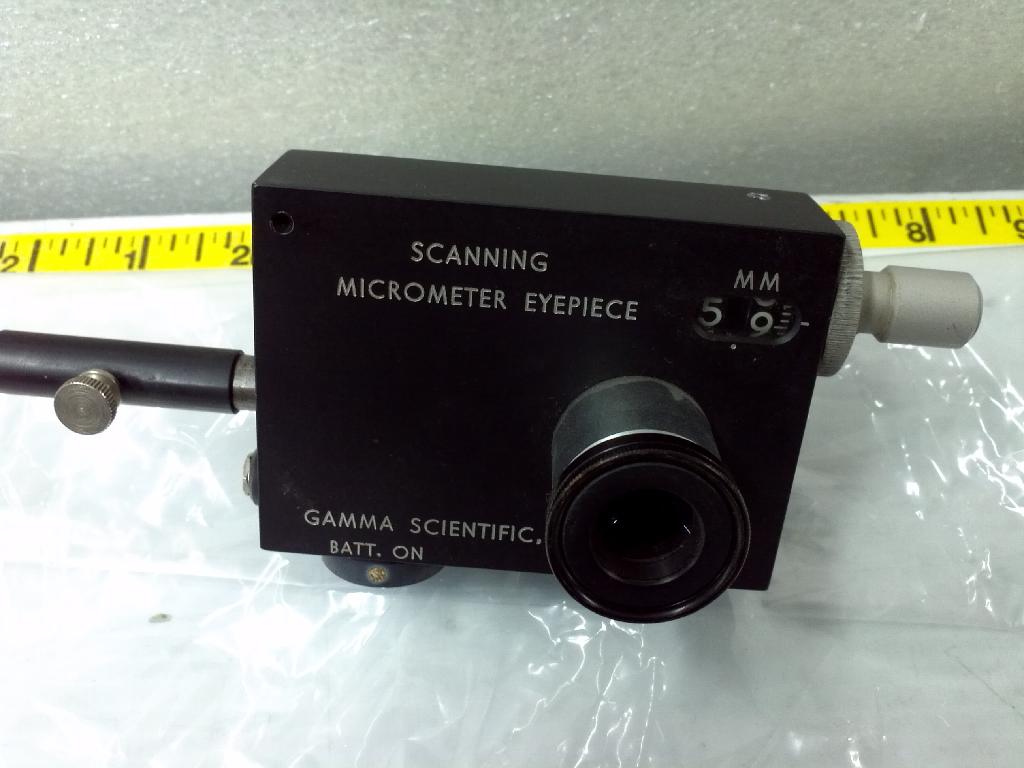

Gamma Scientific 700-10-65 Scanning Micrometer Eyepiece. Aperture 25� ***MPN 700-10-65 ***OEM Gamma Scientific Inc ***SKU*** 12833

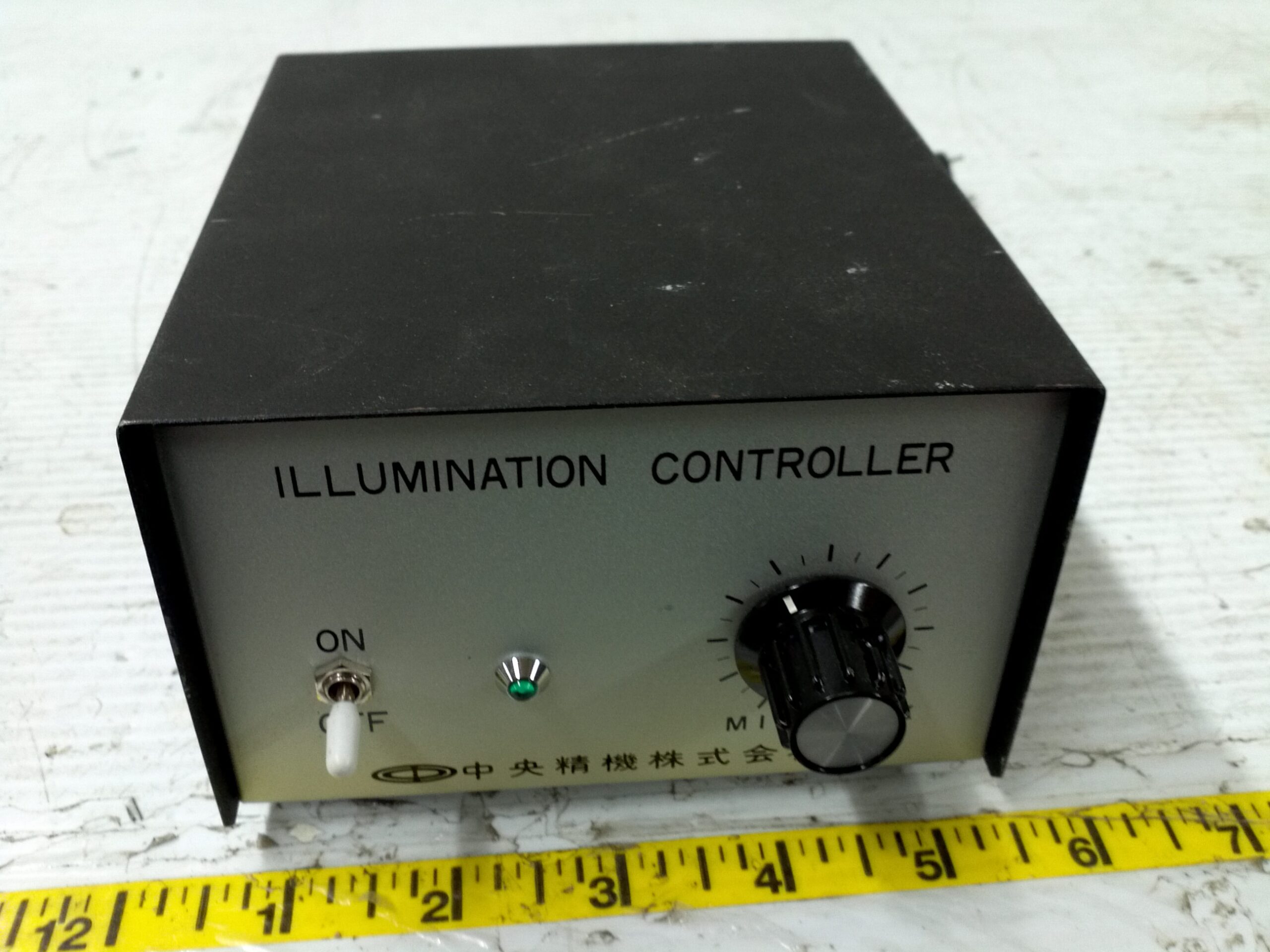

Illumination Controller Input: AC100V 50-60Hz Output: AC8V2A Max. ***MPN ***OEM Brand Unmarked ***SKU*** 15324

This is a Jeol BZG-69PICCST Carrier Tray – This unit came from a working environment but has not been tested. – Please call us for more information. ***MPN BZG-69PICCST ***OEM Jeol ***SKU*** 40811

This is a Leitz (Leica) motorized stage from an Ergoplan semiconductor inspection microscope. The stage has a travel of 8 by 8 inches. There are rotary encoders on each axis. The stage may be driven manually by unthreading the caps over each encoder housing thereby revealing a small knob (see last photo). Leitz part number for this stage is 572 072.

This condenser belongs to the series of interchangeable condenser upper elements used with the more recent 160mm tube length Leitz microscopes (such as the Aristoplan, Diaplan, Laborlux 12, etc). The thread size is larger than that of the earlier 600 system condensers so it is only suitable for the 160mm tube length system condenser bases. It was also used on the special condenser for the Metalloplan HL microscope because of its long working distance..
