KL9010 | Конечный терминал
0,00 ₽Конечный терминал шины KL9010 необходим для обмена данными между шинным соединителем и шинными терминалами. Каждая сборка должна быть завершена на правом конце конечным терминалом шины KL9010. Конечный терминал шины не имеет никаких других функций или возможностей подключения.
-
KL9080 | Separation terminal
0,00 ₽The KL9080 is used to identify potential groups (e.g. 230В VВ AC/24В VВ DC). It is inserted between two potential groups, and indicates the separation through an orange cover.
-
KL9160 | Potential supply terminal, 120…230 V AC, with diagnostics
0,00 ₽Терминал подачи питания KL9160 позволяет настраивать различные потенциальные группы со стандартным напряжением 230В В переменного тока (120В В переменного тока). Для контроля напряжения питания терминал с диагностикой сообщает состояние терминала подачи питания шинному копплеру через два входных бита. Таким образом, контроллер может проверять распределенное периферийное напряжение по полевой шине.
-
KL9180 | Potential distribution terminal, 2В x 24В VВ DC, 2В x 0В VВ DC, 2В x PE
0,00 ₽The KL9180 Bus Terminal allows the supply voltage to be accessed a number of times via spring force terminals. The Bus Terminal makes it unnecessary to use additional terminal blocks on the terminal strip.
-

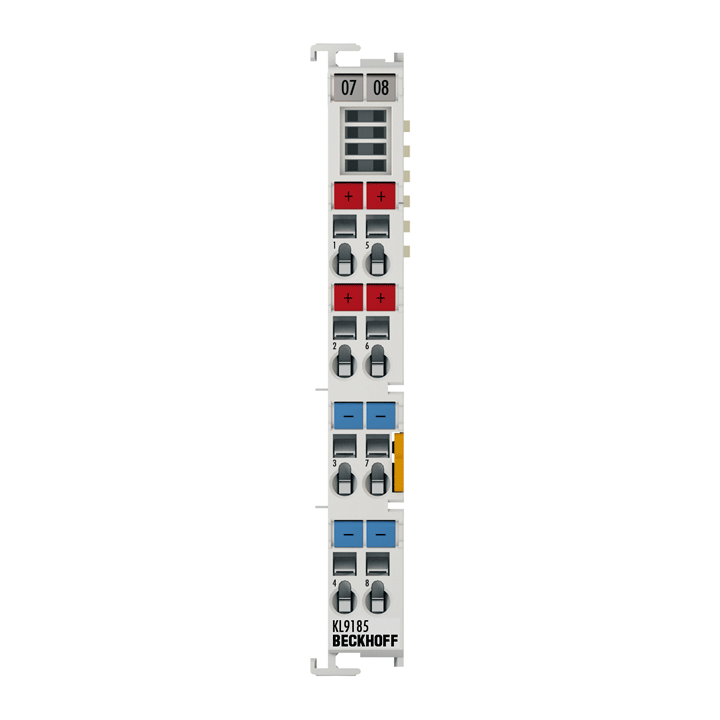

KL9185 | potential distribution terminal, 4В x 24В VВ DC, 4В x 0В VВ DC
0,00 ₽The KL9185 Bus Terminal allows the supply voltage to be accessed a number of times via spring force terminals. The Bus Terminal makes it unnecessary to use additional terminal blocks on the terminal strip.
-
KL9190 | Potential supply terminal, any voltage up to 230 V AC
0,00 ₽The KL9190 power feed terminal makes it possible to set up various potential groups with any desired voltages up to 230В VВ AC.
-
KL9195 | Shield terminal
0,00 ₽The KL9195 Bus Terminal allows the supply voltage to be accessed a number of times via spring force terminals. It makes it unnecessary to use additional terminal blocks on the terminal strip. The KL9195 can be used for the connection of screens. The KL9195 connects the spring force contacts directly to the DIN rail, and can optimally ground incoming electromagnetic radiation. The two power contacts are looped through by the KL9195, allowing two wires to be connected to each power contact.
-
KL9250 | Potential supply terminal, 120…230 V AC, with fuse
0,00 ₽The KL9250 power feed terminal makes it possible to set up various potential groups with the standard voltage of 230В VВ AC (120В VВ AC).
-
KL9260 | Potential supply terminal, 120…230 V AC, with diagnostics and fuse
0,00 ₽The KL9260 power feed terminal makes it possible to set up various potential groups with the standard voltage of 230В VВ AC (120В VВ AC). In order to monitor the supply voltage, the terminal with diagnostics reports the status of the power feed terminal to the Bus Coupler through two input bits. It is thus possible for the controller to check the distributed peripheral voltage over the fieldbus.
-
KL9309 | Адаптерный терминал для ручных рабочих модулей
0,00 ₽The KL9309 adapter terminal has 16В terminal points, which provide the I/Os of the KL85xx manual operating modules. In addition, 24В VВ DC is fed in via two terminal points (1В x 0В V, 1В x 24В V). The terminal can be connected to the manual operating module via a shielded ZK8500-8282-70×0 signal cable (3…5В m) using a 20-pin contact strip with locking. The KL9309 has a modular design and can be incorporated seamlessly on the DIN rail. K-bus communication is passed on by the terminal, but the terminal itself is not visible to the K-bus and is therefore also not recognized by the bus coupler.
-
KL9400 | Power supply unit terminal for the K-bus
0,00 ₽The KL9400 power supply unit terminal is used to refresh the K-bus. Data is exchanged between the Bus Coupler and Bus Terminal over the K-bus. Each Bus Terminal draws a certain amount of current from the K-bus (see Current consumption K-bus in the technical data). This current is fed into the K-bus by the relevant Bus Coupler’s power supply unit. The standard couplers (BKxx00, BCxx00) make 1.75В A available to the K-bus. In configurations with a large number of Bus Terminals it is possible to use the KL9400 in order to supply an extra 2В A to the K-bus.
-
KL9520 | AS-Interface potential feed terminal with filter
0,00 ₽The KL9520 potential feed terminal uncouples the input and output signal through an integrated filter and enables the supply of AS-Interface networks from standard power supply units or another AS-Interface network. The KL9520 can be used directly next to the KL6201 AS-Interface master terminal. Multiple parallel operation of this combination in a Bus Terminal block is possible and saves several AS-Interface power supply units.
-
KL9570 | Buffer capacitor terminal
0,00 ₽The KL9570 Bus Terminal contains high-performance capacitors for stabilizing supply voltages. The KL9570 can be used in conjunction with KL2531/KL2541 stepper motor terminals and KL2532/KL2552 DC motor terminals. Low internal resistance and high-pulsed current capability enable good buffering in parallel with a power supply unit. Return currents are stored, particularly in the context of drive applications, thereby preventing overvoltages. If the regenerative energy exceeds the capacity of the capacitors, energy can be dissipated via an external braking resistor.
