KL8528 | 8-channel digital output module
0,00 ₽The KL8528 is an 8-channel digital output module. The outputs can be switched via a switch or specified by the controller. The status is indicated by a bicolor LED in green and yellow. The switching positions are readable via the PLC.
-

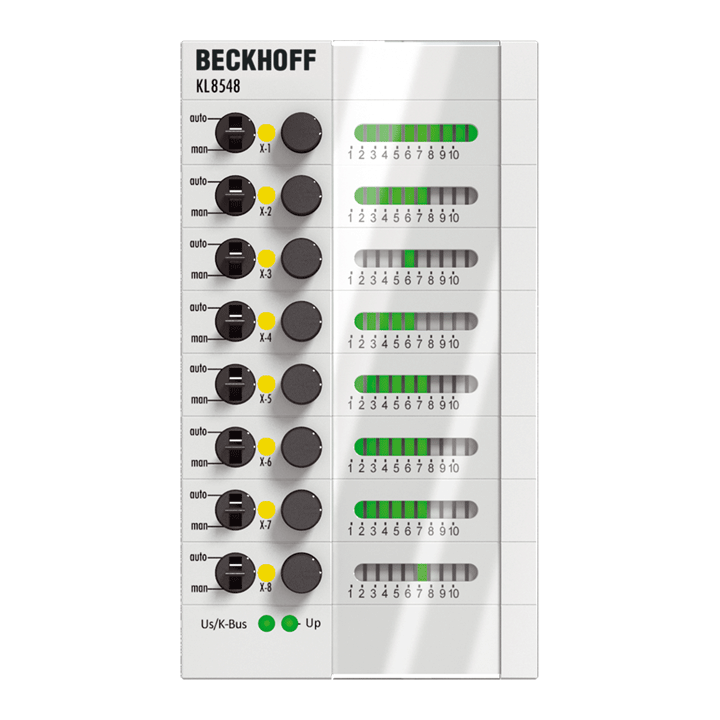

KL8548 | 8-channel analog output module 0…10 V
0,00 ₽The KL8548 is an 8-channel analog output module for 0 to 10 V. The analog values must be specified individually for each channel via the controller or via a potentiometer. The actual output value is indicated by a bar graph. The position of the potentiometer is readable by the controller in each mode of operation.
-

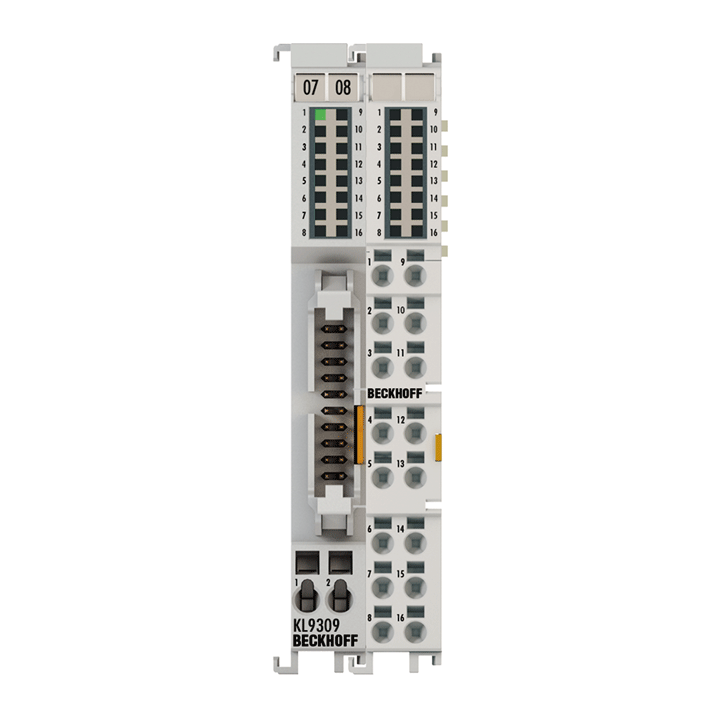

KL9309 | Adapter terminal for manual operating modules
0,00 ₽The KL9309 adapter terminal has 16В terminal points, which provide the I/Os of the KL85xx manual operating modules. In addition, 24В VВ DC is fed in via two terminal points (1В x 0В V, 1В x 24В V). The terminal can be connected to the manual operating module via a shielded ZK8500-8282-70×0 signal cable (3…5В m) using a 20-pin contact strip with locking. The KL9309 has a modular design and can be incorporated seamlessly on the DIN rail. K-bus communication is passed on by the terminal, but the terminal itself is not visible to the K-bus and is therefore also not recognized by the bus coupler.
